Thomas Betts C10-10FL Locking Fork Terminal Stud 10 600V

Product Description

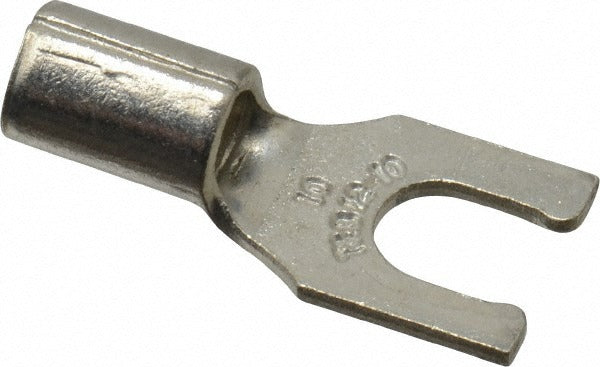

The THOMAS BETTS C10-10FL is a non-insulated locking fork terminal designed for secure, vibration-resistant electrical connections in demanding wiring applications. It uses a crimp connection method and is rated for 600 volts. The fork design locks onto the stud to prevent accidental disconnection, making it a reliable choice for panel wiring, equipment terminations, and other installations where terminal retention is critical. Constructed from copper with a TiN (titanium nitride) contact plating, this terminal provides solid conductivity and corrosion resistance. It is color-coded yellow and accepts a number 10 stud size. Licensed electricians and experienced panel technicians are the primary installers of this terminal type.

The C10-10FL is suited for use in residential, commercial, and light industrial electrical assemblies where a non-insulated locking fork terminal is required. It fits number 10 stud terminations on terminal blocks, bus bars, and equipment mounting points. The yellow color-coding aids in wire identification and organization during panel assembly or equipment servicing. Sold in packages of 50, this terminal is well suited for service vans, electrical shops, and panel builders who need a reliable stock of crimp-style fork terminals on hand.

Key Features

• Locking fork design resists accidental disconnection under vibration or mechanical stress
• Rated for 600 volts for use in standard low-voltage wiring applications
• Copper contact material with TiN plating for conductivity and corrosion resistance
• Crimp connection type for fast, consistent field terminations
• Non-insulated construction with yellow color-coding for easy wire identification
• Meets UL 486A, UL 486B, CSA 22.2, RoHS, and UL 94 V-0 standards

Compatibility

Designed for use with number 10 stud size terminations on terminal blocks, bus bars, and electrical equipment mounting points in standard crimp-style wiring assemblies.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. Always de-energize and lock out the circuit before terminating or servicing connections. Use a calibrated ratchet crimp tool appropriate for the wire gauge and terminal style to ensure a gas-tight, code-compliant crimp. Do not solder over a crimped connection, as this can create stress points and compromise terminal integrity.
