Thomas Betts AT-5 T Body Conduit 1-1/2 Inch Imc Rigid

Product Description

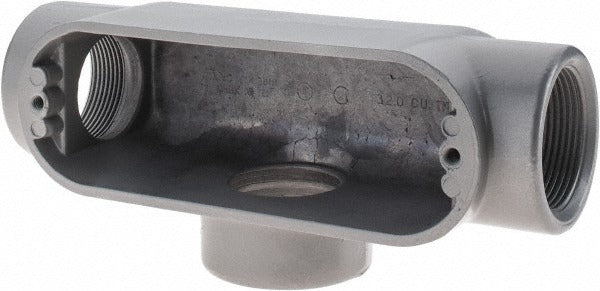

The THOMAS BETTS AT-5 is a T-style aluminum conduit body designed for use with IMC and rigid metal conduit systems in trade size 1-1/2 inches. The oval body profile provides 32 cubic inches of interior volume, giving technicians adequate space for wire pulls, splices, and conductor routing. The die-cast aluminum construction resists corrosion and carries a weather-resistant rating, making it suitable for both indoor and outdoor installations. This conduit body is installed by licensed electricians during raceway assembly on commercial and industrial wiring systems.

The AT-5 is used in IMC and rigid aluminum conduit runs where a T-style junction or pull point is required. The T configuration allows conduit to enter from three directions, making it well suited for branch points in exposed raceway layouts. Typical applications include commercial buildings, industrial facilities, and outdoor electrical installations where weather resistance and code-compliant conduit fittings are required. The gray finish is standard for aluminum conduit bodies of this type.

Key Features

• T-body configuration supports three-direction conduit entry for branch routing
• 1-1/2 inch trade size fits IMC and rigid metal conduit systems
• 32 cubic inch internal capacity provides space for conductor management
• Oval body shape for compact installation in tight spaces
• Weather-resistant construction rated for indoor and outdoor use
• UL Listed (File E28688) and RoHS compliant

Compatibility

Designed as an OEM-style fitting for 1-1/2 inch trade size IMC and rigid aluminum conduit systems. Compatible with standard conduit hubs and covers of the same trade size.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize the circuit and verify with a voltage tester before opening or working within any conduit body. Ensure all conduit connections are properly reamed, threaded, and secured before sealing the cover. Do not exceed the conductor fill capacity of 32 cubic inches as defined by NEC fill calculation requirements.
