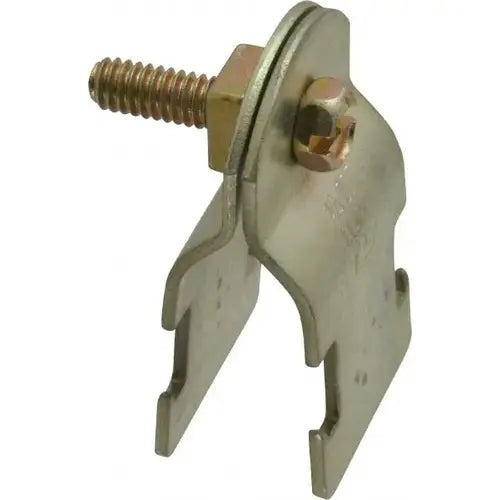

Thomas Betts 701-3/4 Pipe Clamp 3/4 Inch 16 Gauge 650 Lb

Product Description

The THOMAS BETTS 701-3/4 is a 16-gauge steel pipe or tube clamp designed to secure 3/4-inch nominal pipe in mechanical, electrical, and plumbing support applications. Finished in a gold galvanized coating, the clamp resists corrosion in light-duty exposed environments. It carries a rated load capacity of 650 pounds, making it suitable for suspended pipe runs and strut-based support systems. Electricians, pipefitters, and plumbers use this clamp when fastening conduit or pipe to beam clamps, strut channel, or threaded rod assemblies. The 16-gauge steel construction provides consistent clamping geometry and dimensional stability across repeated installations.

This clamp is used in commercial and industrial construction where pipe or conduit must be anchored to unistrut or B-line style framing channel. Typical applications include suspended mechanical piping, EMT or rigid conduit runs, and overhead support grids in light commercial buildings. It is appropriate for both new construction rough-in and retrofit support work where a standardized 3/4-inch pipe clamp with high load capacity is required.

Key Features

• Fits 3/4-inch nominal pipe or tube — 0.75 inches nominal pipe size
• 16-gauge steel construction for consistent clamping geometry
• Gold galvanized finish provides corrosion resistance in exposed installations
• 650-pound rated load capacity for heavy suspended pipe runs
• Compatible with B-line B2027 and Unistrut P2028 channel framing systems

Compatibility

Cross-references to B-Line part number B2027 and Unistrut part number P2028, confirming fit with standard strut channel support systems. Designed as an OEM-style replacement or direct-fit clamp for 3/4-inch pipe support assemblies using compatible channel framing.

Installation Notes

Installation is typically performed by licensed electricians, pipefitters, or plumbers in accordance with applicable NEC, IPC, or IFGC support-spacing requirements. Ensure the supporting strut channel and threaded rod are rated for the combined load before torquing hardware. De-energize any adjacent electrical systems and depressurize piping before disturbing existing support assemblies. Do not exceed the 650-pound rated load capacity when sizing support runs.

Technical Specifications

• Pipe Size: 3/4 inches (nominal)
• Gauge: 16
• Load Capacity: 650 pounds
• Material: Steel
• Finish: Gold Galvanized
• Clamp Type: Pipe Clamp
• B-Line Cross Reference: B2027
• Unistrut Cross Reference: P2028
• UNSPSC Code: 25172007

Standard Information

• Brand: THOMAS BETTS
• Manufacturer Part Number: 701-3/4
