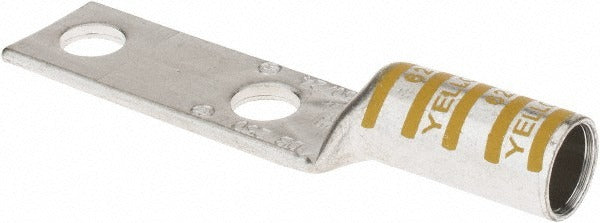

Thomas Betts 54868BE Rectangle Ring Terminal 1/2 Inch Stud

Product Description

The THOMAS BETTS 54868BE is a non-insulated rectangle ring terminal designed for compression connections in heavy-duty electrical wiring applications. Measuring 4.92 inches in overall length and 1.13 inches in ring width, this terminal features a copper contact body with a titanium nitride (TiN) plating for enhanced surface hardness and corrosion resistance. The 1/2 inch stud size makes it suitable for large-conductor terminations. At 0.1400 inches thick, the barrel and ring provide solid mechanical integrity under torque. This terminal is installed by licensed electricians and industrial maintenance technicians working on power distribution, motor connections, and control panel wiring.

This terminal is used in commercial and industrial electrical installations where non-insulated, bare compression lugs are specified. Typical applications include motor leads, switchgear terminations, bus bar connections, and panel grounding points where a secure, low-resistance mechanical connection to a 1/2 inch stud is required. The yellow color coding aids in quick visual identification during installation and inspection. The compression connection style requires a compatible crimping tool to achieve a proper cold-weld bond between conductor and terminal.

Key Features

• Non-insulated rectangle ring design with 1/2 inch stud size for large-conductor terminations
• Copper contact material provides excellent electrical conductivity
• Titanium nitride (TiN) contact plating adds surface hardness and corrosion resistance
• Compression connection type requires crimping for a secure, low-resistance joint
• 0.1400 inch barrel thickness supports mechanical durability under high-torque fastening
• RoHS compliant for use in environmentally regulated installations

Compatibility

Designed as an OEM-style compression ring terminal for use in commercial and industrial electrical systems requiring a non-insulated rectangle lug with a 1/2 inch stud hole and compression termination.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. De-energize and lock out the circuit before installing or removing any terminal lug. Use a calibrated compression crimping tool rated for the conductor gauge and terminal series to ensure a proper cold-weld connection. Do not attempt to solder or re-crimp a compression terminal that has already been seated.
