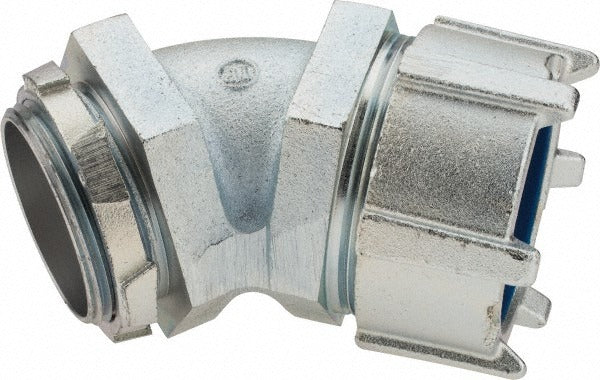

Thomas Betts 5248 Liquid-tight Conduit Connector 2-1/2 in

Product Description

The THOMAS BETTS 5248 is a non-insulated, angled liquid-tight conduit connector made from malleable iron with a threaded connection type. It is rated for a 2-1/2 inch trade size and is designed to terminate liquid-tight flexible metal conduit at enclosures, junction boxes, or equipment panels. The angled body allows conduit to enter at an offset, which is useful in tight spaces or where a straight connector would create excessive conduit bend. Electricians and industrial maintenance technicians install this fitting in locations where moisture, oil, or environmental exposure requires a sealed, secure connection.

This connector is suited for use in hazardous locations, non-hazardous locations, oiltight applications, and watertight applications. The malleable iron construction makes it appropriate for industrial settings, commercial facilities, and any environment where a robust metal fitting is required over a thermoplastic alternative. The 2-1/2 inch trade size fits the corresponding liquid-tight flexible conduit diameter commonly used in motor terminations, HVAC equipment hookups, and industrial machinery connections.

Key Features

• Angled connector body allows offset conduit entry in confined or congested installation areas
• Malleable iron construction provides mechanical durability in demanding industrial environments
• Threaded connection type ensures a secure, vibration-resistant termination at the enclosure
• Non-insulated design suitable for standard grounding and bonding configurations per NEC requirements
• Rated for hazardous locations, oiltight, and watertight areas of application
• 2-1/2 inch trade size accommodates larger liquid-tight flexible conduit runs typical of high-ampacity circuits

Compatibility

Designed for use with 2-1/2 inch trade size liquid-tight flexible metal conduit in both hazardous and non-hazardous location installations where an angled threaded connector is required.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC articles governing liquid-tight flexible metal conduit and fittings. De-energize the circuit and lock out the equipment before beginning conduit termination work. Ensure the conduit is cut cleanly and seated fully into the connector before tightening the locknut at the enclosure knockout. Do not overtighten the fitting body, as malleable iron threads can be damaged by excessive torque applied without a thread sealant or where the knockout edge is irregular.
