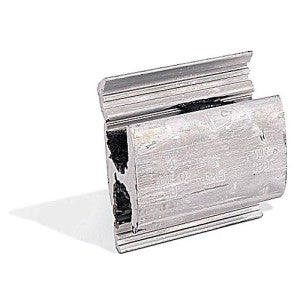

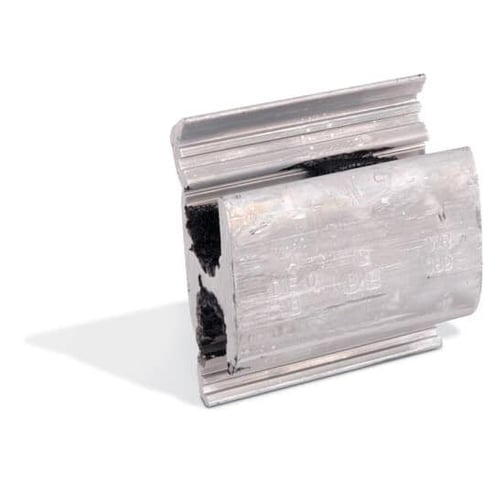

Thomas And Betts WR159 H-Tap Compression Connector, Aluminum, Wide Range

Product Description

The Thomas & Betts WR159 is an aluminum H-Tap compression connector made from 1350 aluminum alloy. It is designed for various conductor sizes and offers reliable connections between aluminum and copper conductors. The connector’s design includes fold-in tabs for an interlock feature and a ribbed structure to maintain conductor shape without distortion. It is also filled with an oxide inhibitor to enhance performance.

• Constructed from 1350 aluminum for strength and conductivity.

• Compatible with aluminum-to-aluminum and aluminum-to-copper connections.

• Utilizes standard compression tools for installation.

Product Highlights

This connector ensures strong and effective connections for electrical systems and installations.

Product Information

Standard Information

• Brand: Thomas & Betts

• MPN: WR159

Technical Specifications

• Application: Aluminum-to-Aluminum and Aluminum-to-Copper Conductors

• Conductor Type: ACSR/Aluminum/Copper/Solid/Stranded

• Connection Type: Crimp

• Main Conductor Size: 2 to 6 ACSR

• Tap Conductor Size: 2 to 6 ACSR

• Die Code: O

• Insulation: None

• Material: Aluminum

• Quantity: 250

• Length: 1-7/16 inches

• Temperature Rating: 90

• Type: WR Wide Range
