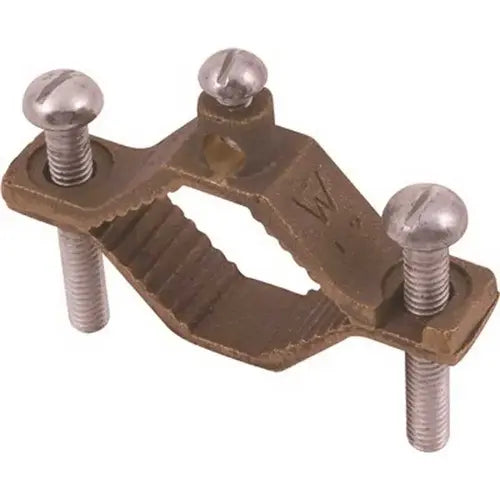

Thomas And Betts J2-BB Ground Clamp, Cast Bronze, Type J

Product Description

The Thomas And Betts J2-BB is a cast bronze ground clamp for connecting grounding conductors to water pipes or copper tubes. This clamp works with conductors ranging from ten AWG to two AWG. It fits water pipes sized one and one-fourth to two inches. The product is made of high-strength copper alloy, ensuring conductive performance.

• Connects grounding conductor to water pipe or copper tube.
• Constructed from high-strength, highly conductive copper alloy.
• Features plated screws for corrosion resistance.

Product Highlights

This ground clamp provides reliable connections for grounding needs in various applications.

Product Information

Standard Information

• Brand: Thomas And Betts
• MPN: J2-BB

Technical Specifications

• Conductor Material: Bronze
• Minimum Conductor Size: 10 AWG
• Maximum Conductor Size: 2 AWG
• Water Pipe Size: 1-1/4 to 2 inches
• Standard: UL E3060
• Type: Type J Non-Insulated
• Mounting Type: Surface Mount

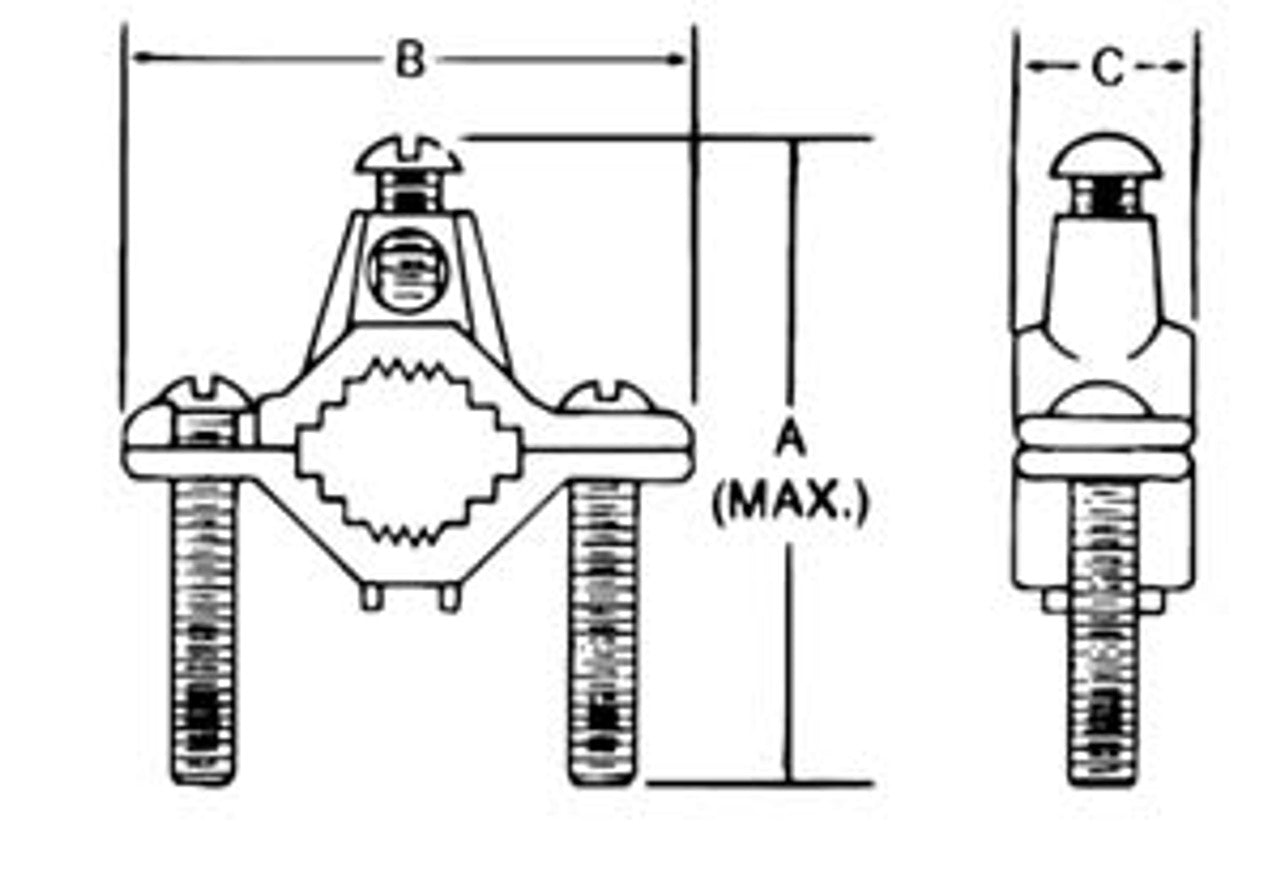

• Length: 0.291 feet
• Height: 3.75 inches
• Width: 3.5 inches
• Product Depth: 3.5 inches
• Product Height: 0.75 inches
• Product Width: 3.5 inches
• Certifications: UL
