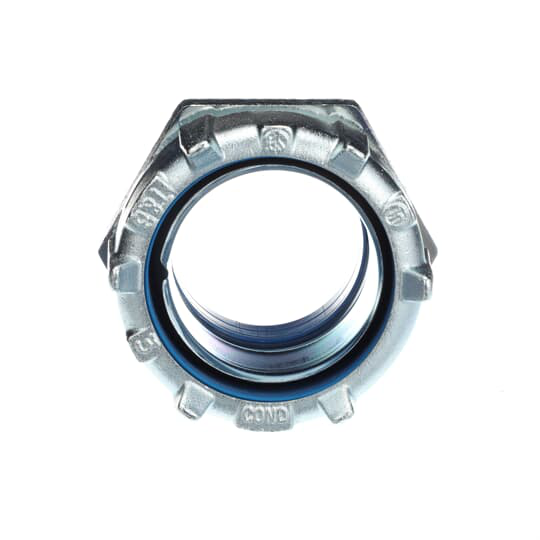

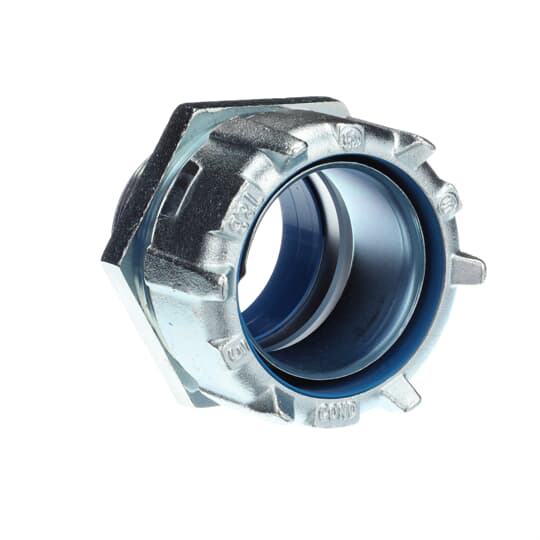

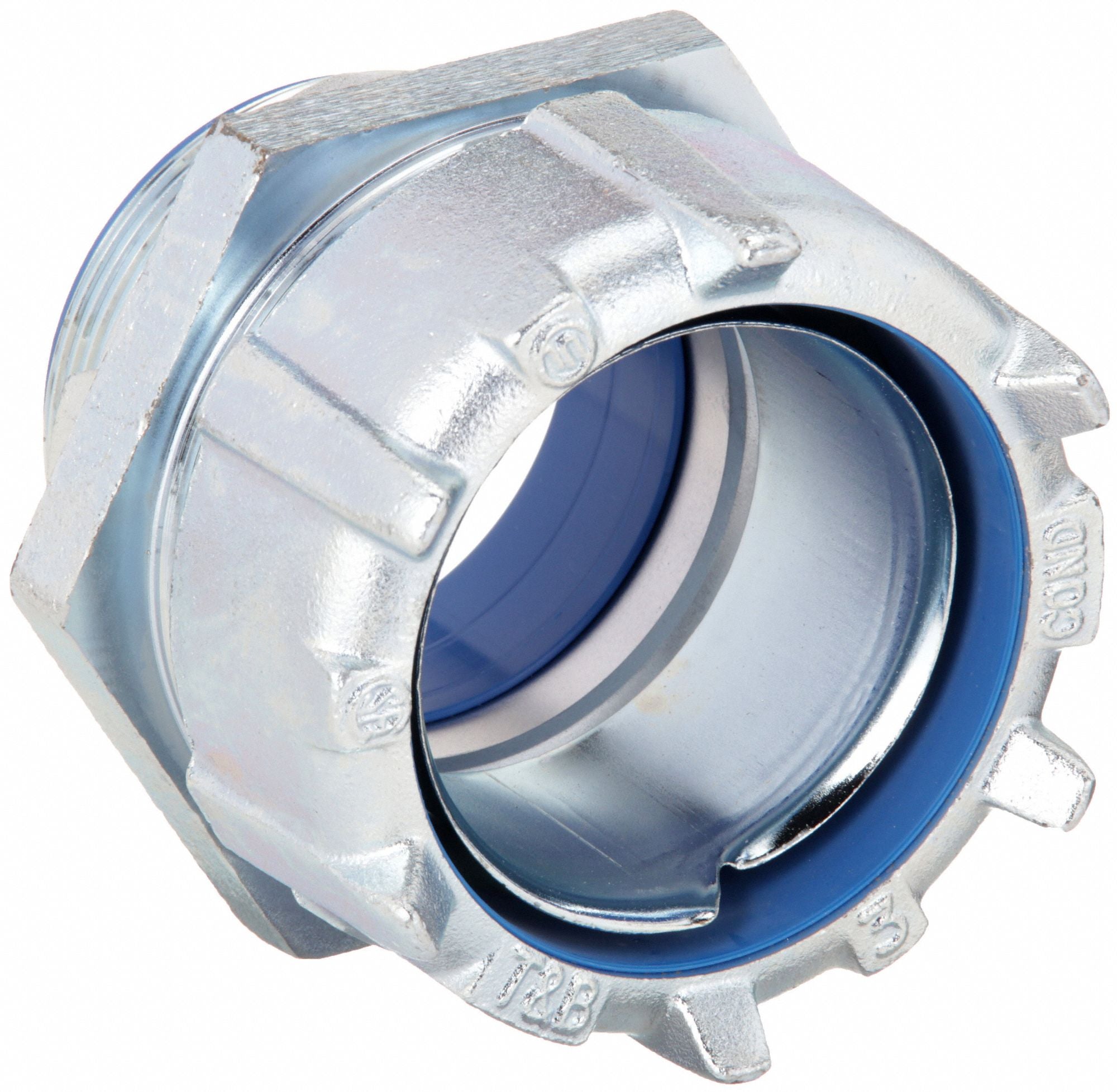

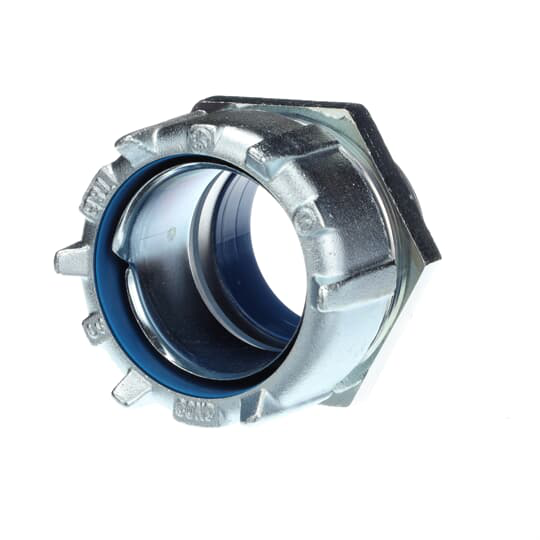

Thomas and Betts 5339 3 in Straight Malleable Iron Insulated Liquidtight Connector (3 in)

Product Description

The Thomas and Betts 5339 is a 3 inch straight malleable iron insulated liquidtight connector designed to provide a sealed termination for liquidtight flexible metallic conduit. It features an insulated split gland ring and threaded connection for secure installation, and is suitable for indoor or outdoor use where flexible metal raceway is exposed to moisture or corrosive environments. The connector meets multiple industry standards and is intended for electrical circuits up to 1,000 V.

• Malleable iron construction with insulated design and zinc electroplated/chromate finish; protects conduit and wire sheathing
• 3 inch trade size with 3 in NPT threaded connection, straight orientation, overall length 4-1/2 in
• Meets UL and CSA liquidtight fitting standards; rated for use in wet environments and specified hazardous locations

Product Highlights

Insulated straight liquidtight connector for 3 in flexible metallic conduit with split gland sealing and industry certifications

Product Information

Standard Information

• Brand: THOMAS & BETTS
• Manufacturer Part Number: 5339
• Country of Origin: USA

Technical Specifications

• Brand: Thomas and Betts
• Manufacturer Part Number: 5339
• Product Type: Liquid-tight straight connector
• Size: 3 in trade size
• Diameter: 3"
• Material: Malleable iron
• Finish: Zinc electroplated / chromate coating
• Thread Size: 3 in NPT
• Connection Type: Threaded
• Connection Orientation: Straight
• Overall Length: 4-1/2 in (114.3 mm)
• Number Of Outlets: 1
• For Use With: Liquid-tight flexible metallic conduit
• Standards / Certifications: UL 514B; CSA C22.2 No. 18.3; CE compliant; UL E23018 listed
• Rated Voltage: Up to 1,000 V
• Hazardous Location Rating: Suitable for specified Class I Division 2 and Class II Division 1 and 2 applications
• Special Features: Split gland ring for sealing; Safe Edge ground cones; double bevel sealing ring; heat-curled insulators
• Country of Origin: USA
• UNSPSC: 39121311
