THHNCU-GENERIC THHN8STRBLK500R, 8 AWG, 19-Strand, Black, Copper Building Wire

Product Description

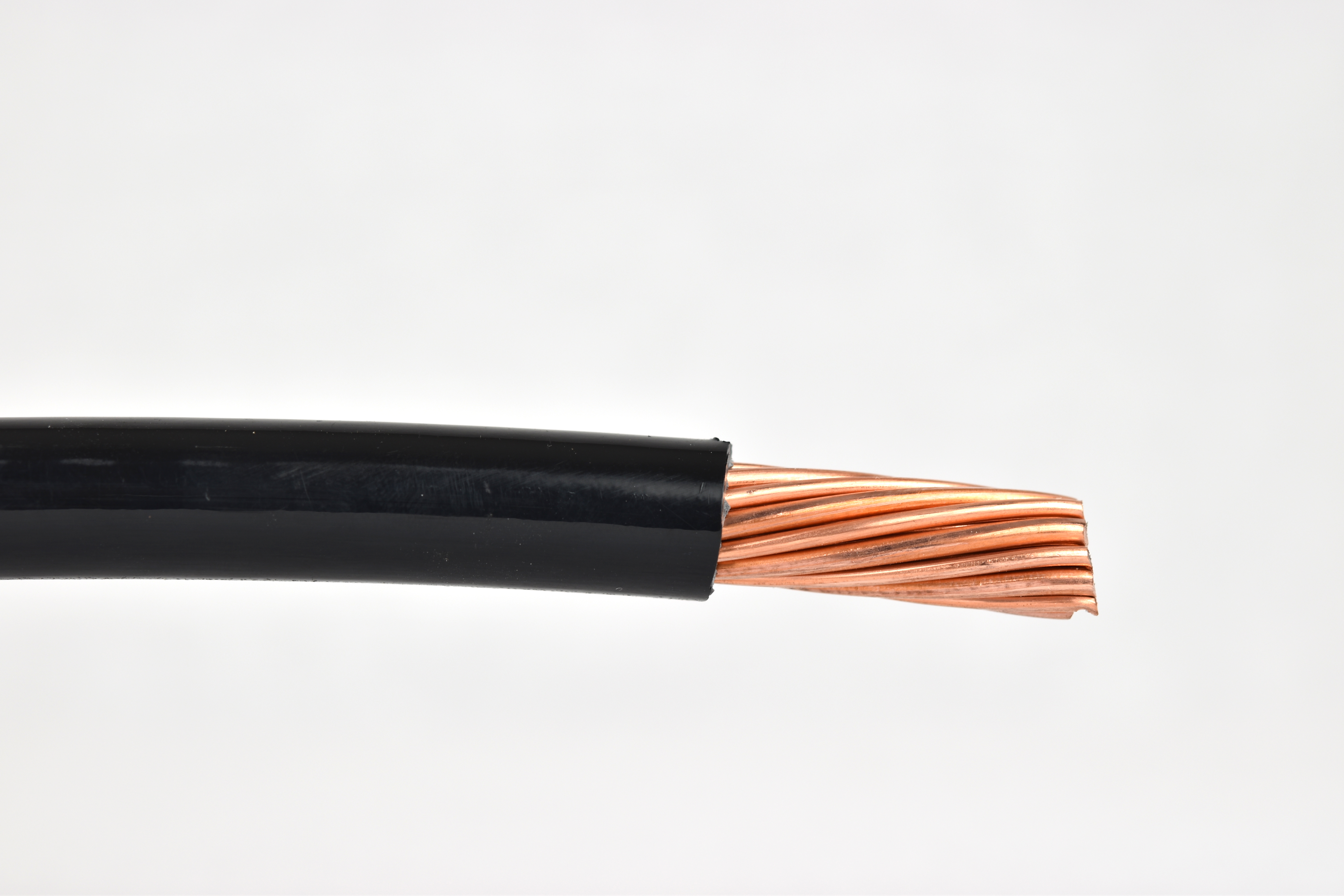

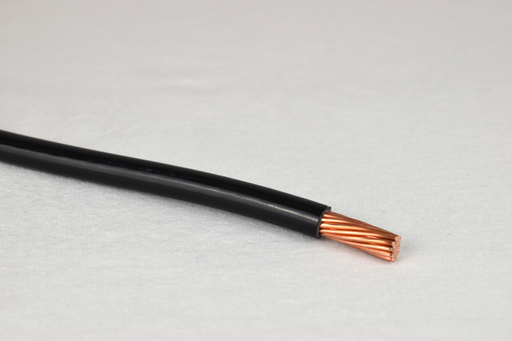

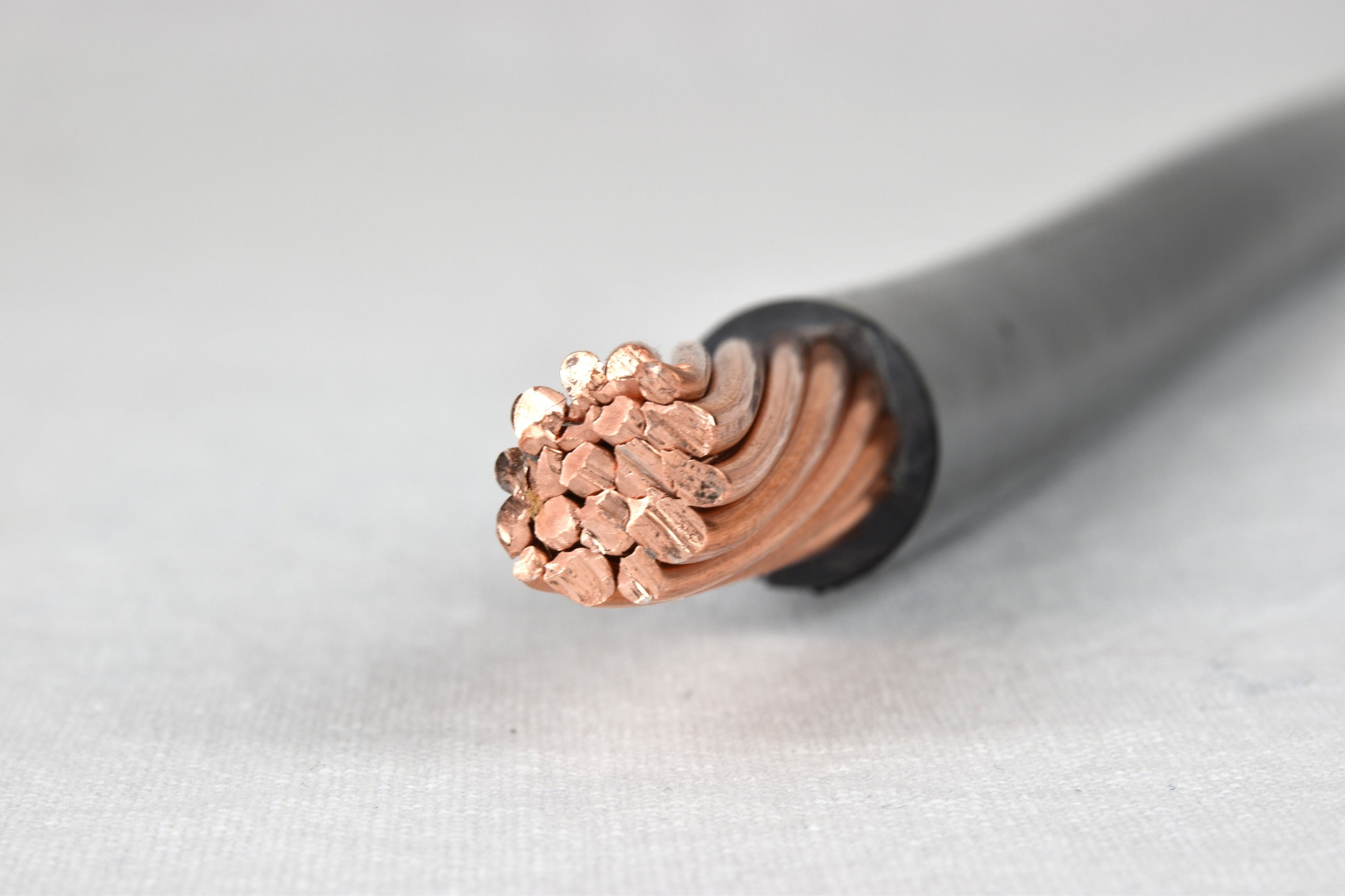

The THHNCU-GENERIC THHN8STRBLK500R is an eight AWG, 19-strand copper building wire. It is suitable for use in various electrical applications. The wire features a soft annealed copper conductor, PVC insulation, and a nylon jacket to protect against damage.

• Rated for 600V, suitable for wet locations
• Resistant to heat, moisture, gasoline, and oil
• Available in a 500-foot spool

Product Highlights

This wire is ideal for diverse building and construction tasks that require reliable electrical connections.

Product Information

Standard Information

• Manufacturer Part Number: THHN8STRBLK500R
• Wire Size: 8 AWG

Technical Specifications

• Stranding: 19 Strands
• Color: Black
• Material: Soft Annealed Copper
• Length: 500 feet
• Type: THHN
• Voltage Rating: 600 V
• Jacket Material: Nylon
• Insulation Material: PVC
• Temperature Rating: 90 Degrees Celsius
• Current Rating: 40 Ampere (60 Deg C), 50 Ampere (75 Deg C), 55 Ampere (90 Deg C)
• Outer Diameter: 213 MIL
• Insulation Thickness: 30 MIL
• Jacket Thickness: 5 MIL
• Wet Location Use: Yes
• Approval: UL (Canada and US)
