THHNCU-GENERIC THHN6STRGRY500R 6 AWG Stranded Copper Wire Grey 500 ft

Product Description

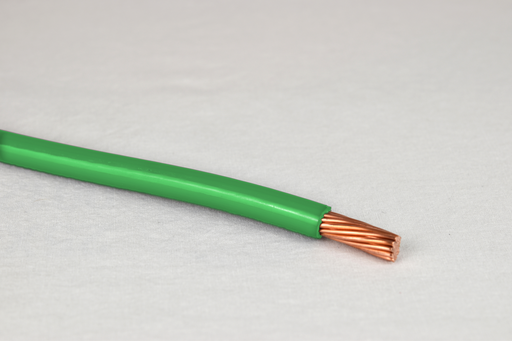

The THHNCU-GENERIC THHN6STRGRY500R is a six American Wire Gauge stranded copper wire that features robust thermoplastic insulation with a nylon sheath. This wire is designed to perform in wet locations and is resistant to heat, moisture, gasoline, and oil. It is composed of nineteen strands of soft annealed copper and is rated for six hundred volts. This product is available on a five hundred-foot spool.

• Six AWG stranded soft annealed copper conductor.
• Features thermoplastic insulation with a nylon sheath.
• Rated for six hundred volts and suitable for wet locations.

Product Highlights

The THHNCU-GENERIC THHN6STRGRY500R excels in environments that require durability and resistance to various elements.

Product Information

Standard Information

• Brand: THHNCU-GENERIC
• Wire Size: 6 AWG

Technical Specifications

• MPN: THHN6STRGRY500R
• Stranding: 19 Strands
• Color: Grey
• Material: Soft Annealed Copper
• Length: 500 feet
• Type: THHN
• Voltage Rating: 600 V
• Jacket Material: Nylon
• Insulation Material: PVC
• Temperature Rating: 90 degrees C (Dry), 75 degrees C (Oil/Wet)
• Current Rating: 55 Ampere (60 degrees C), 65 Ampere (75 degrees C), 75 Ampere (90 degrees C)
• Outer Diameter: 249 MIL
• Insulation Thickness: 30 MIL
• Jacket Thickness: 5 MIL
• Wet Location Use: Yes
• Standard: UL (Canada and US)
• Approval: UL (Canada and US)
