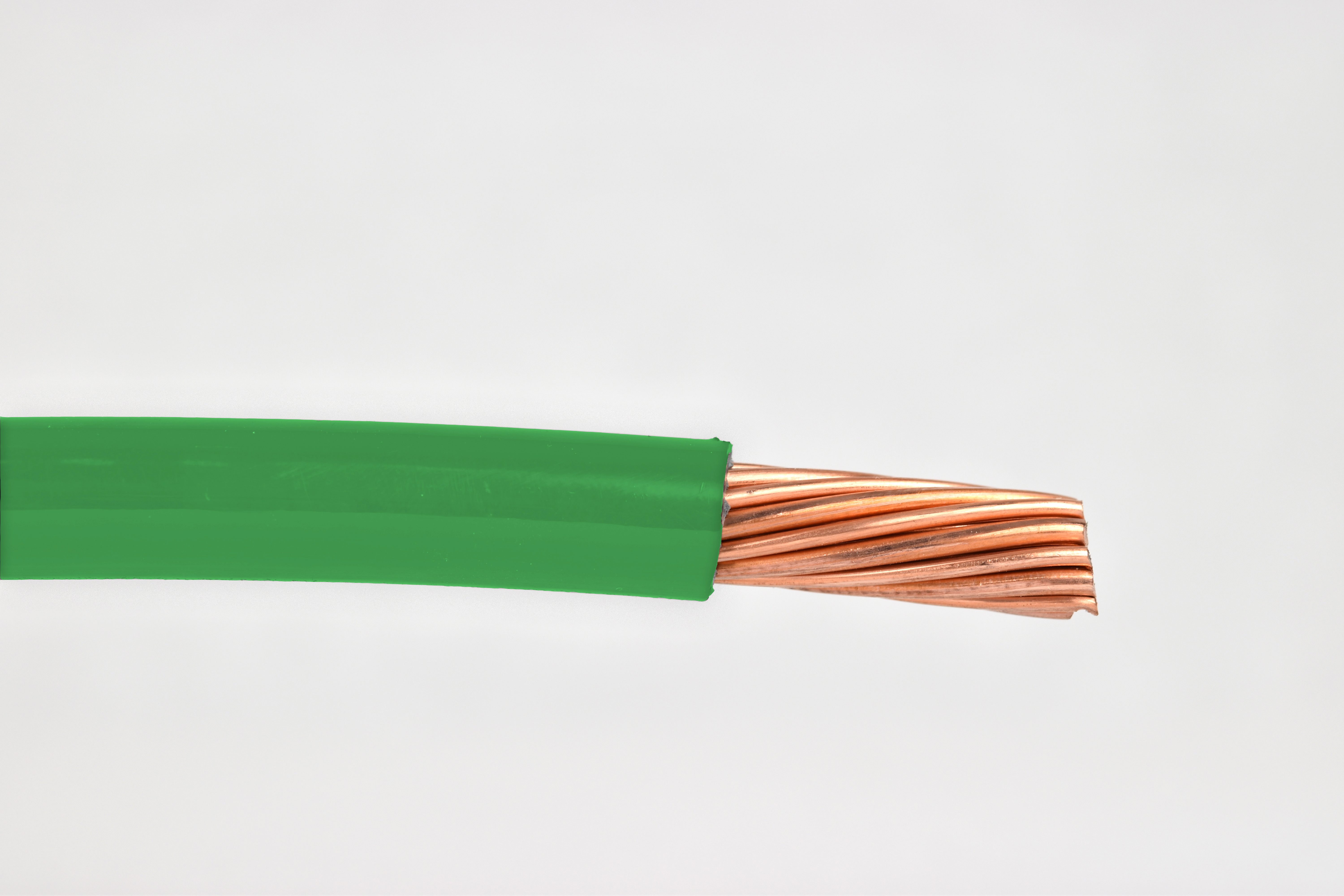

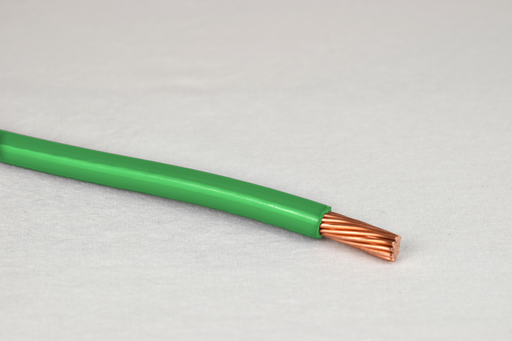

THHNCU-GENERIC THHN6STRGRN500R 6 AWG Green Stranded Copper Wire

Product Description

The THHNCU-GENERIC THHN6STRGRN500R is a six American Wire Gauge stranded copper wire. It features a green PVC insulation and a nylon jacket. This wire is ideal for use in conduit and cable trays for services, feeders, and branch circuits. It is rated for six hundred volts and suitable for both wet and dry locations. The soft annealed copper conductor ensures flexibility and reliability.

• Six AWG stranded copper conductor.
• PVC insulation with nylon jacket.
• Rated for six hundred volts.

Product Highlights

This product provides durability and strength, making it suitable for various applications in electrical setups.

Product Information

Standard Information

• Brand: Generic Wire
• Type: THHN

Technical Specifications

• Wire Size: 6 AWG
• Stranding: 19 Strands
• Insulation Material: PVC
• Jacket Material: Nylon
• Color: Green
• Length: 500 feet
• Voltage Rating: 600 V
• Temperature Rating: 90 Deg C (Dry), 75 Deg C (Oil/Wet)
• Current Rating: 55 Ampere (60 Deg C), 65 Ampere (75 Deg C), 75 Ampere (90 Deg C)
• Outer Diameter: 249 MIL
• Insulation Thickness: 30 MIL
• Jacket Thickness: 5 MIL
• Material: Soft Annealed Copper
• Wet Location Use: Yes
• Direct Burial: No
• Shielded: No
• Grounded: No
• Approval: UL (Canada and US)
