THHNCU-GENERIC THHN10STRBRN2500R 10 AWG Stranded Copper Building Wire

Product Description

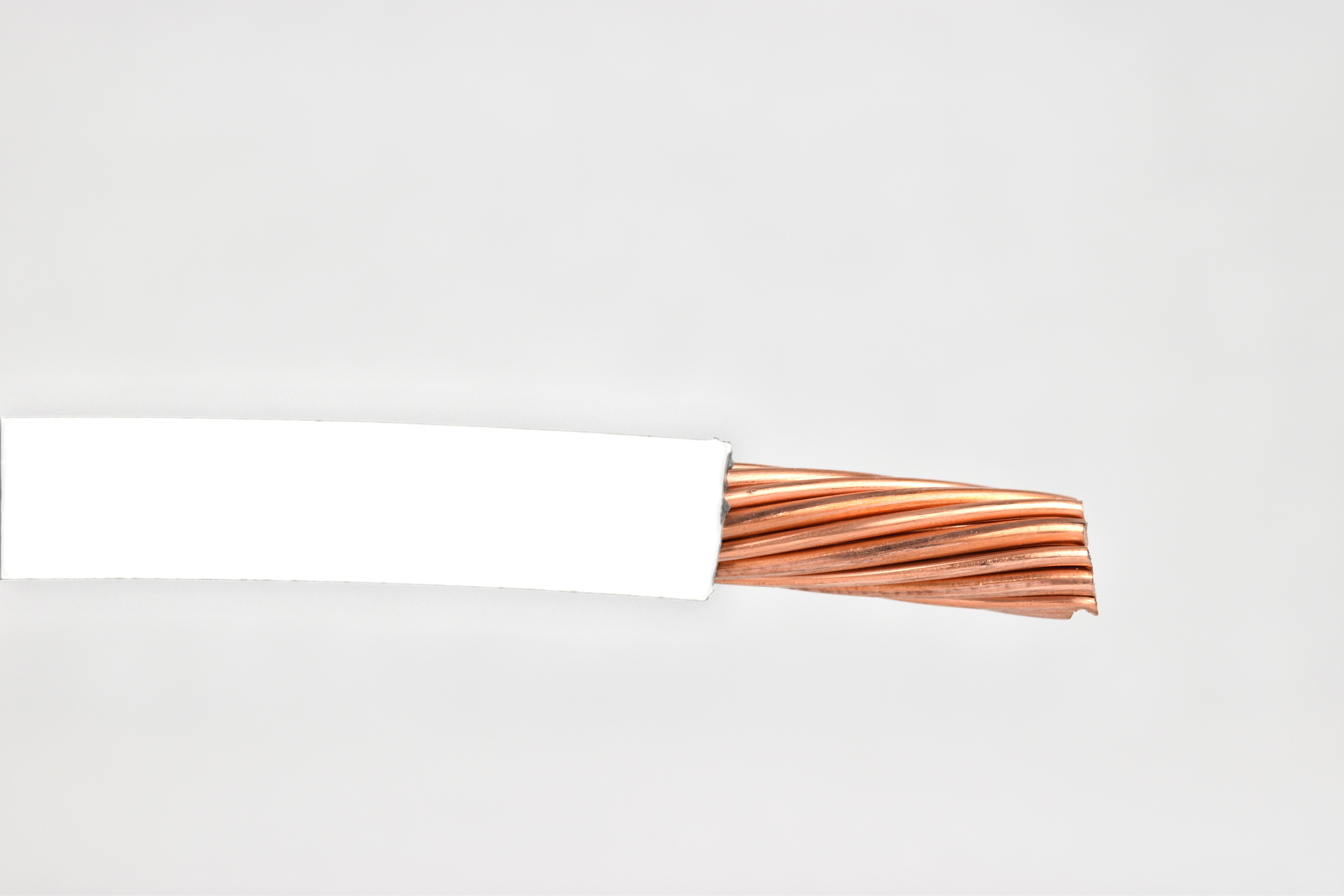

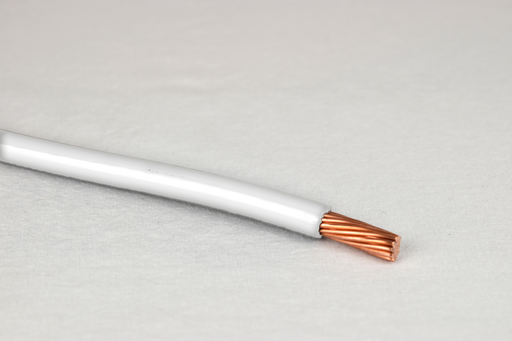

The THHNCU-GENERIC THHN10STRBRN2500R is a 10 AWG stranded copper building wire suitable for various electrical applications. It consists of a soft annealed copper conductor, covered with PVC insulation and a strong nylon jacket. This wire is designed for use in conduit and cable trays, ideal for services, feeders, and branch circuits. It operates effectively in applications up to 600 volts, making it a reliable choice for both residential and commercial settings.

• 10 AWG stranded soft annealed copper conductor
• PVC insulation and nylon jacket for durability
• Rated for 600V, suitable for wet locations

Product Highlights

This wire combines flexibility and strength, making it easy to handle while providing excellent conductivity. It's UL approved for use in both the US and Canada, ensuring safety and compliance in various installations.

Product Information

Standard Information

• Brand: THHNCU-GENERIC
• MPN: THHN10STRBRN2500R

Technical Specifications

• Wire Size: 10 AWG
• Conductor Material: Soft Annealed Copper
• Insulation Material: PVC
• Jacket Material: Nylon
• Voltage Rating: 600 V
• Current Rating: 30 Amps
• Temperature Rating: 90 Degrees Celsius
• Length: 2500 feet
• Wet Location Use: Yes
• Standard: UL Approved for Canada and US
• Outer Diameter: 161 thousandths of an inch
• Insulation Thickness: 20 thousandths of an inch
• Jacket Thickness: 4 thousandths of an inch
• Category: Copper Building Wiring - THHN - T90 - STR
