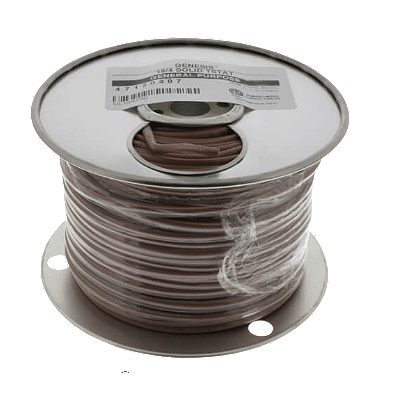

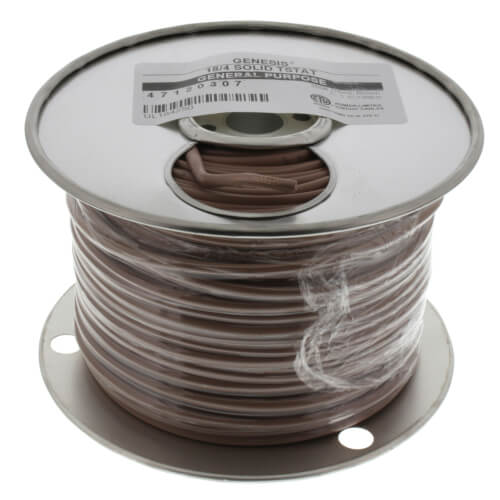

THERMOSTAT 47120307 Thermostat Cable 18/4 Solid CL2

Brand: THERMOSTAT
SKU: 47120307
Availability: In Stock

Ships same day if ordered by 12 pm

$157.28
$157.28
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

The THERMOSTAT 47120307 is a thermostat cable for wiring thermostat controls and HVAC systems. It is suitable for low-voltage applications.

  • 18 AWG solid bare copper conductors.
  • Four conductors.

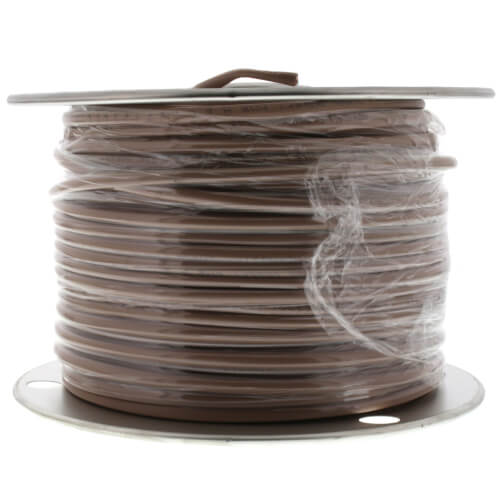

  • Supplied on a 250-foot reel.

Key Features

  • CL2 rated.
  • Suitable for installation within buildings, in metal raceways, or on solid-bottom cable trays.
  • Ideal for HVAC equipment and doorbell wiring.
Technical Specifications
Cable Type
CL2
Wire Gauge
18 AWG
Number of Conductors
4
Conductor Material
Bare Copper
Stranding
Solid
Insulation Material
Polypropylene
Jacket Material
PVC
Length
250 feet
Maximum Operating Voltage
150 V
Operating Temperature
-4�F to 140�F
Outside Diameter
0.157 inches
Jacket Color
Brown
UV Resistant
Yes
Flame Rating
UL 1685 Vertical Tray Test
Capacitance Range
25 pf/ft nominal
Impedance
68 Ohms nominal
Resistance
6.52 Ohms per 1,000 ft at 20�C
Nominal Total Weight
25 lbs per 1,000 ft

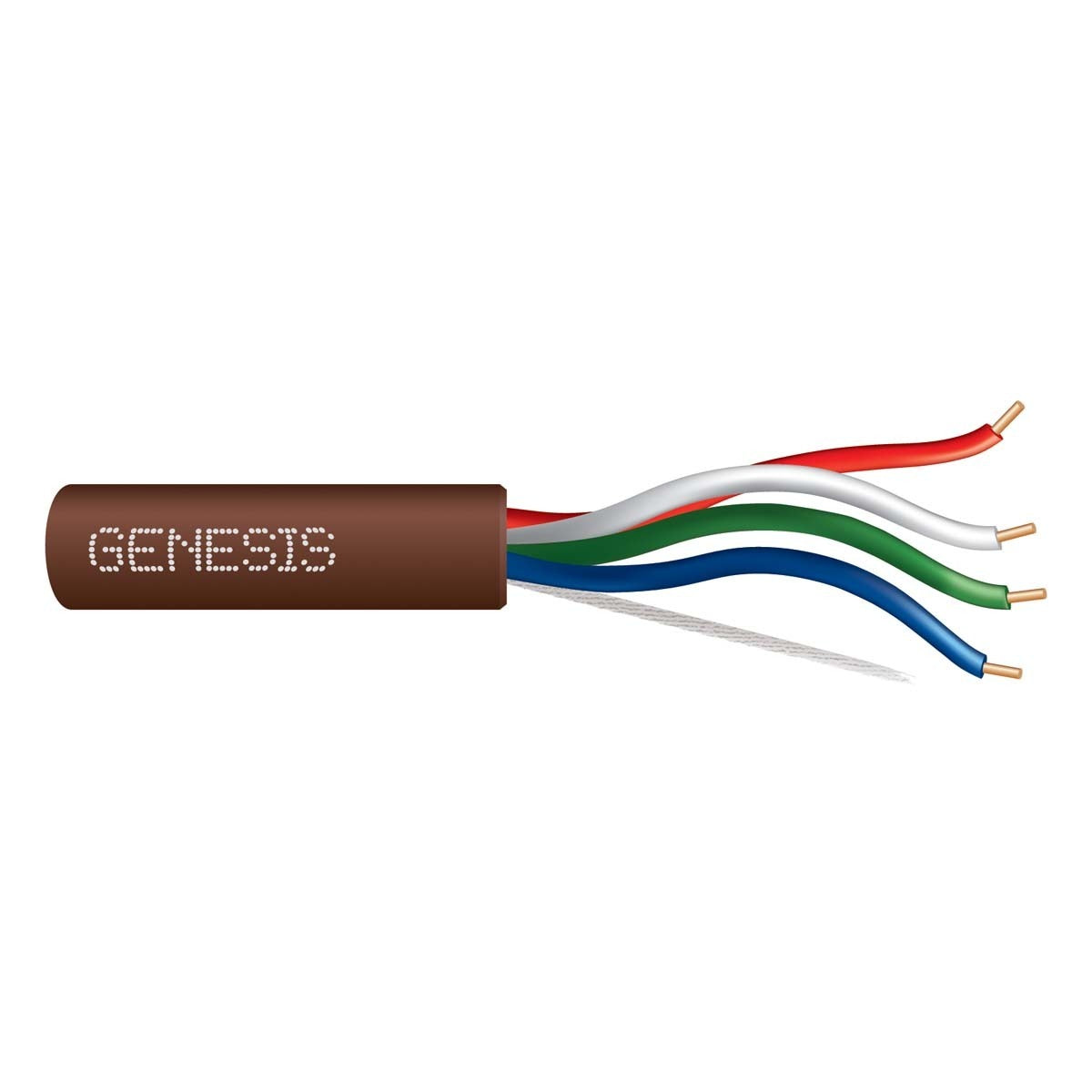

Insulation Color
Blue, Green, Red, White
Jacket Thickness
0.015 inches
Standards
RoHS Compliant
Brand
THERMOSTAT
Manufacturer Part Number
47120307
