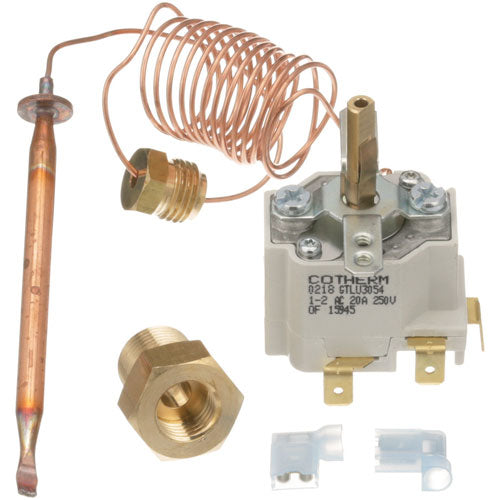

Thermostat 140-284 F 4-TH05 for Southbend SOU4-TH05

Product Description

This item for Southbend 4-TH05 is a thermostat designed to manage temperature effectively. It operates between one hundred forty and two hundred eighty-four degrees Fahrenheit. This product is essential for various applications where temperature control is crucial.

• Temperature range: one hundred forty to two hundred eighty-four degrees Fahrenheit
• Includes a bulb measuring three eighths by four inches copper
• Features compatibility with Market Forge Kettle ELT-40 and Southbend equipment

Product Highlights

This thermostat helps maintain consistent temperatures in cooking equipment.

Product Information

Standard Information

• Weight: 0.5 pounds
• Dimensions: 3.5 inches length, 2.7 inches width, 4 inches height

Technical Specifications

• Thermostat Type: T/STAT
• Temperature Range: 140-284 F, 80-140 C
• Bulb Size: 3/8 X 4 inches
• Capillary Length: 36 inches
• Stuff Box Size: 3/8 inches
• Stem Diameter: 0.187 inches
• Terminal Quantity: 3 tab terminals 1/4 inch and 1/4 inch ground
