The Unico System UPC-62-2430 Plenum Supply Adapter

Product Description

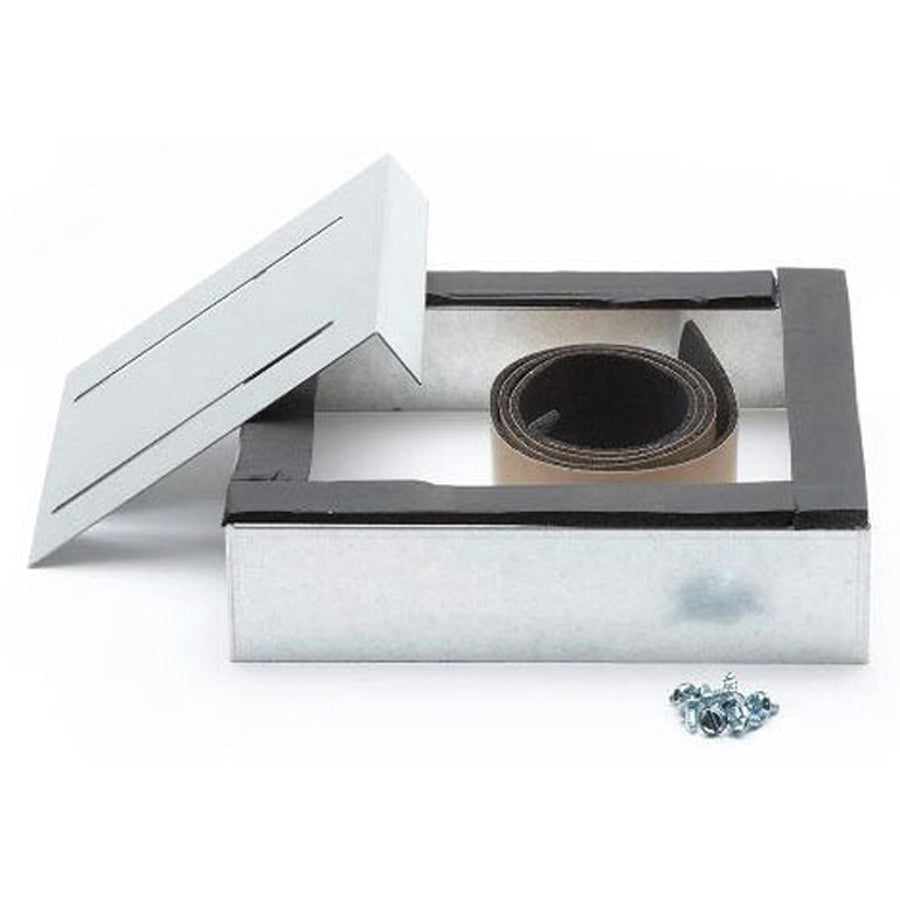

The THE UNICO SYSTEM UPC-62-2430 is a square plenum supply adapter designed for use with high-velocity air distribution systems. Fabricated from galvanized steel, this adapter connects the air handler plenum to rigid rectangular fiberglass duct, directing conditioned air into the supply distribution network. It is sized for 2 to 2.5 ton system configurations and measures 8.5 inches at the adapter opening with a 10 inch by 10 inch footprint and a height of 2.5 inches. Licensed HVAC technicians install this component during new system installations or when replacing damaged plenum connections in high-velocity zoned systems.

This adapter is intended for residential and light commercial high-velocity HVAC applications where Unico-style air handling equipment is used. It transitions the plenum outlet to rigid rectangular fiberglass ductwork, which is a common duct type in Unico system installations. The square profile and standardized dimensions make it a direct-fit component for 2 to 2.5 ton system assemblies. It is used on item part number 2430 per the manufacturer specification.

Key Features

• Galvanized steel construction for corrosion resistance in air stream environments
• Square profile sized for 2 to 2.5 ton high-velocity system configurations
• 8.5 inch adapter opening compatible with rigid rectangular fiberglass duct
• Compact 10 inch by 10 inch footprint with 2.5 inch height for tight plenum spaces
• Designed for use with Unico air handler item part number 2430

Compatibility

Designed for use with Unico System air handlers using item part number 2430, in 2 to 2.5 ton high-velocity system configurations with rigid rectangular fiberglass ductwork.

Installation Notes

Installation should be performed by a licensed HVAC technician familiar with high-velocity air distribution systems. Power down the air handling unit at the disconnect and verify the system is de-energized before beginning plenum work. Secure the adapter to the plenum outlet per the system manufacturer instructions and ensure all duct connections are properly sealed to prevent air leakage. Follow local mechanical codes for duct connection and plenum construction requirements.

Technical Specifications

• Material: Galvanized Steel
• Adapter Opening: 8.5 inches
• Length: 10 inches
• Width: 10 inches
• Height: 2.5 inches
• Weight: 2 pounds
• Duct Type: Rigid Rectangular Fiberglass Duct
• Used On Part Number: 2430
• System Capacity: 2 to 2.5 Ton

Standard Information

• Brand: THE UNICO SYSTEM
• Manufacturer Part Number: UPC-62-2430
