THE UNICO SYSTEM M3036R1 Horizontal Multiple Return Module 3036

Product Description

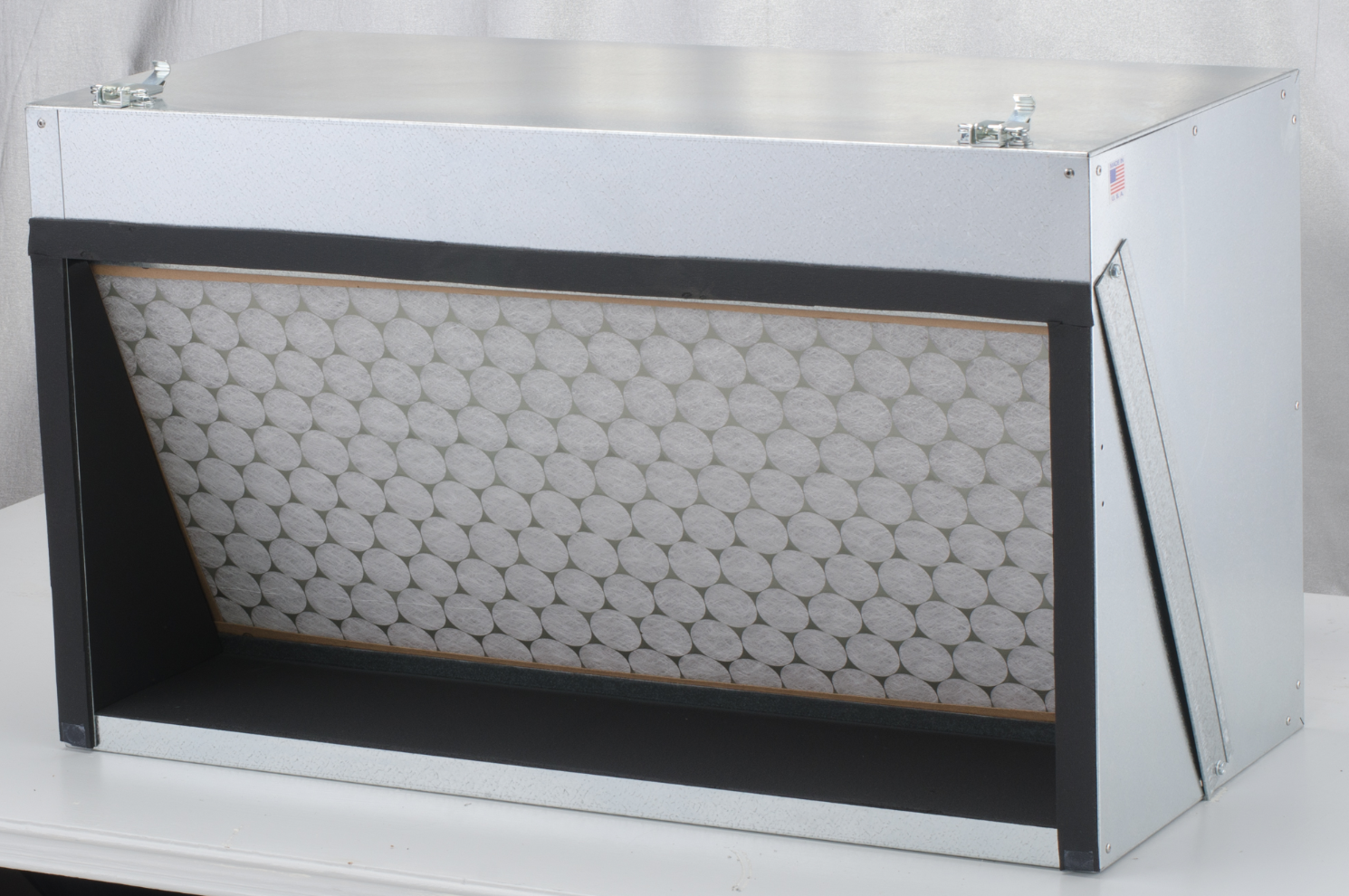

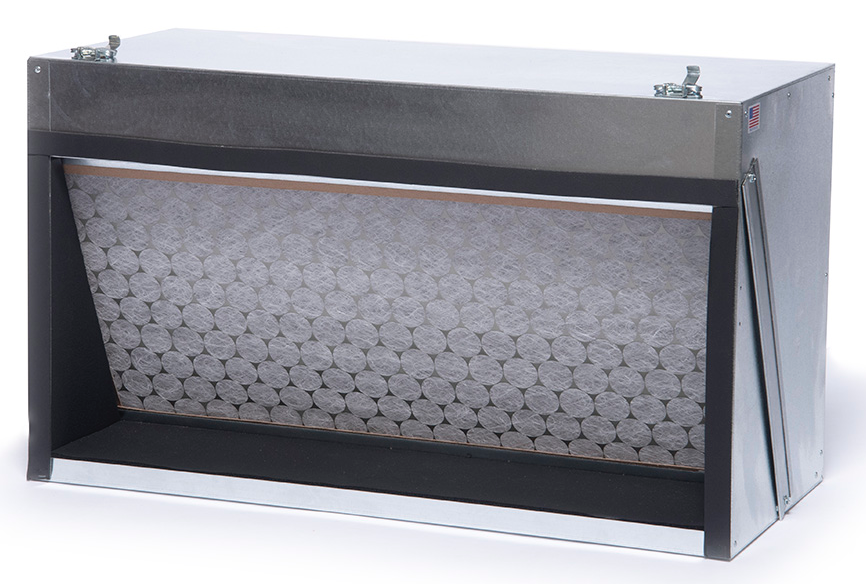

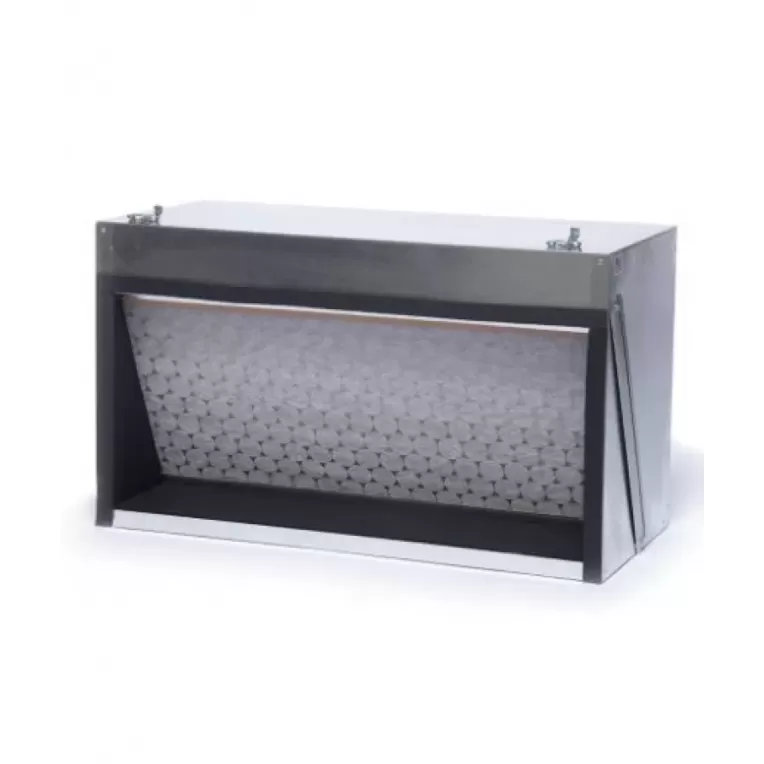

The Unico System M3036R1 is a horizontal multiple return module designed for the M3036 model. This product serves as a filter box and is installed on the return air side of the air handler. It can handle both multiple and single returns. This module is suitable for older homes, custom designs, and compact spaces, ensuring comfort and efficiency.

• Blank side and top for flexible return openings
• Centrally located filter
• Heavy-duty closed cell insulation

Product Highlights

This module enhances air handling in various architectural settings without sacrificing design.

Product Information

Standard Information

• Brand: Unico
• Manufacturer: Unico

Technical Specifications

• Product Code: M3036R1
• Unico Model: 3036
• Filter Size: 14 inches x 30 inches
• Certifications: UL
• Dimensions (L x W x H): 34.00 inches x 16.00 inches x 20.00 inches
• Maximum Airflow: 1020 CFM (408 L/s)
• Maximum Velocity: 350 FPM (1.78 m/s)
• Initial Resistance: 0.04 in. wg (10 Pa)
