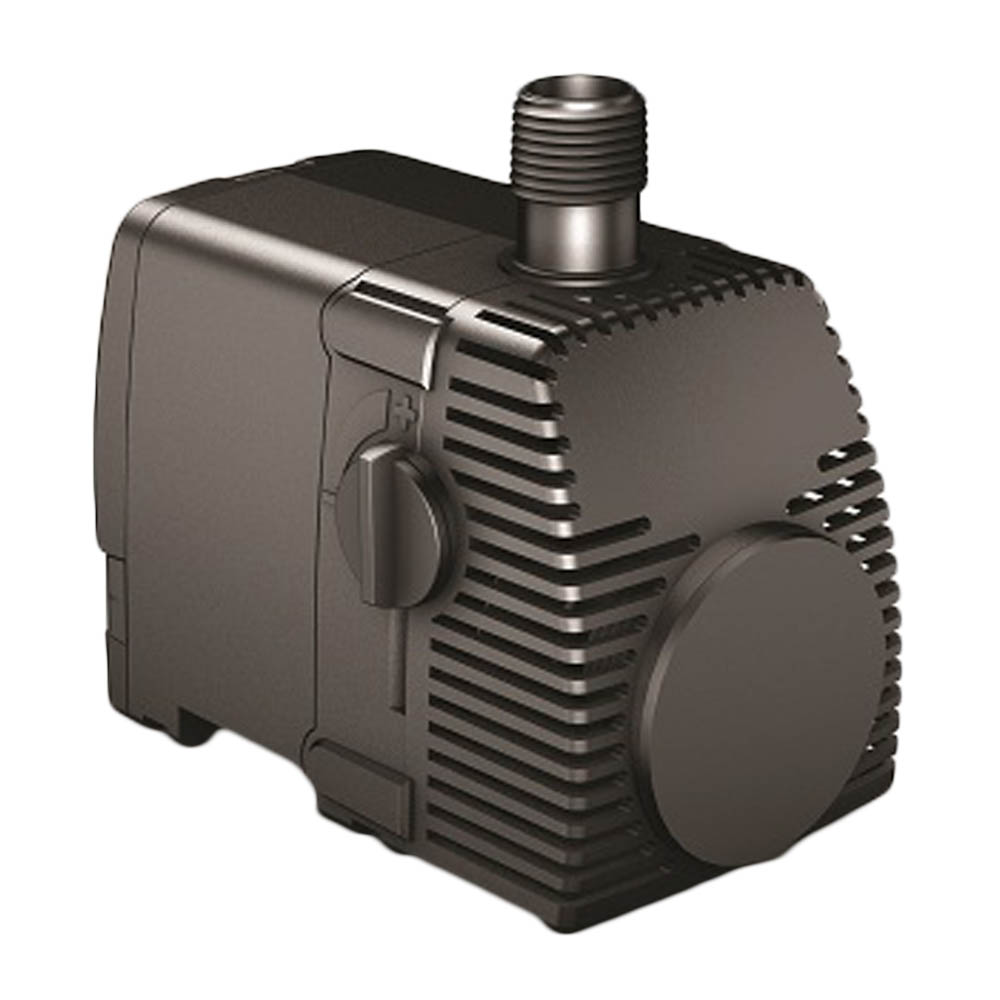

Teton XR750 Magnetic Drive Submersible Inline Pump

Product Description

The TETON XR750 is a magnetic-drive pump designed for both submersible and inline installation. Mag-drive construction eliminates the shaft seal found in traditional pump designs, reducing wear points and the risk of leaks over time. The unit ships with a 16-foot cord, giving installers additional reach when routing power to the pump location. Constructed with a plastic housing, the XR750 suits applications where chemical resistance and corrosion resistance are priorities. It is installed by pool service professionals, aquarists, pond technicians, and water feature contractors.

The XR750 is suited for recirculating water in ponds, water features, aquariums, and low-head water movement tasks. Its dual-mode design allows it to run fully submerged or in an inline configuration plumbed in-line with existing piping, offering flexibility depending on the installation layout. The 16-foot power cord provides working distance from the pump location to a GFCI-protected outlet, which is standard practice for any water-adjacent electrical installation.

Key Features

• Magnetic-drive design eliminates shaft seal, reducing leak risk and mechanical wear
• Dual-mode installation: runs submersed or inline in a plumbing run
• Plastic housing offers corrosion resistance in wet and chemically treated water environments
• 16-foot power cord included for installation flexibility

Compatibility

Designed as an OEM-style replacement or direct-install magnetic-drive pump for pond, water feature, and recirculating water system applications requiring a submersible or inline pump.

Installation Notes

Installation should be performed by a qualified electrician or experienced pond and water feature technician. Always connect the pump to a GFCI-protected circuit per NEC requirements before submerging or energizing the unit. Shut off all power to the circuit before making electrical or plumbing connections. Do not run the pump dry, as magnetic-drive pumps rely on water flow for internal cooling.

Technical Specifications

• Housing Material: Plastic
• Drive Type: Magnetic Drive (Mag-Drive)
• Installation Type: Submersible or Inline
• Cord Length: 16 feet
• UPC: 819657010757

Standard Information

• Brand: TETON
• Manufacturer Part Number: XR750
