Testo 563000220 smart probes ac & refrigeration test kit 45 degree angled

Product Description

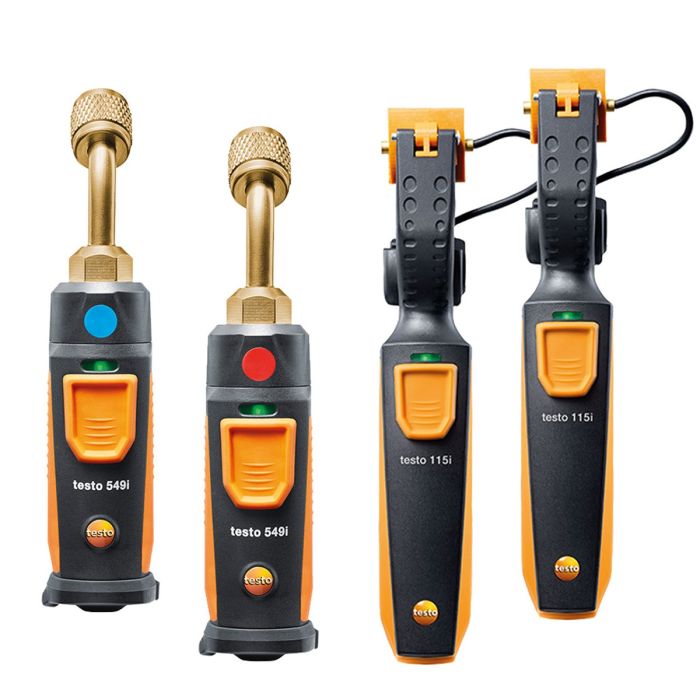

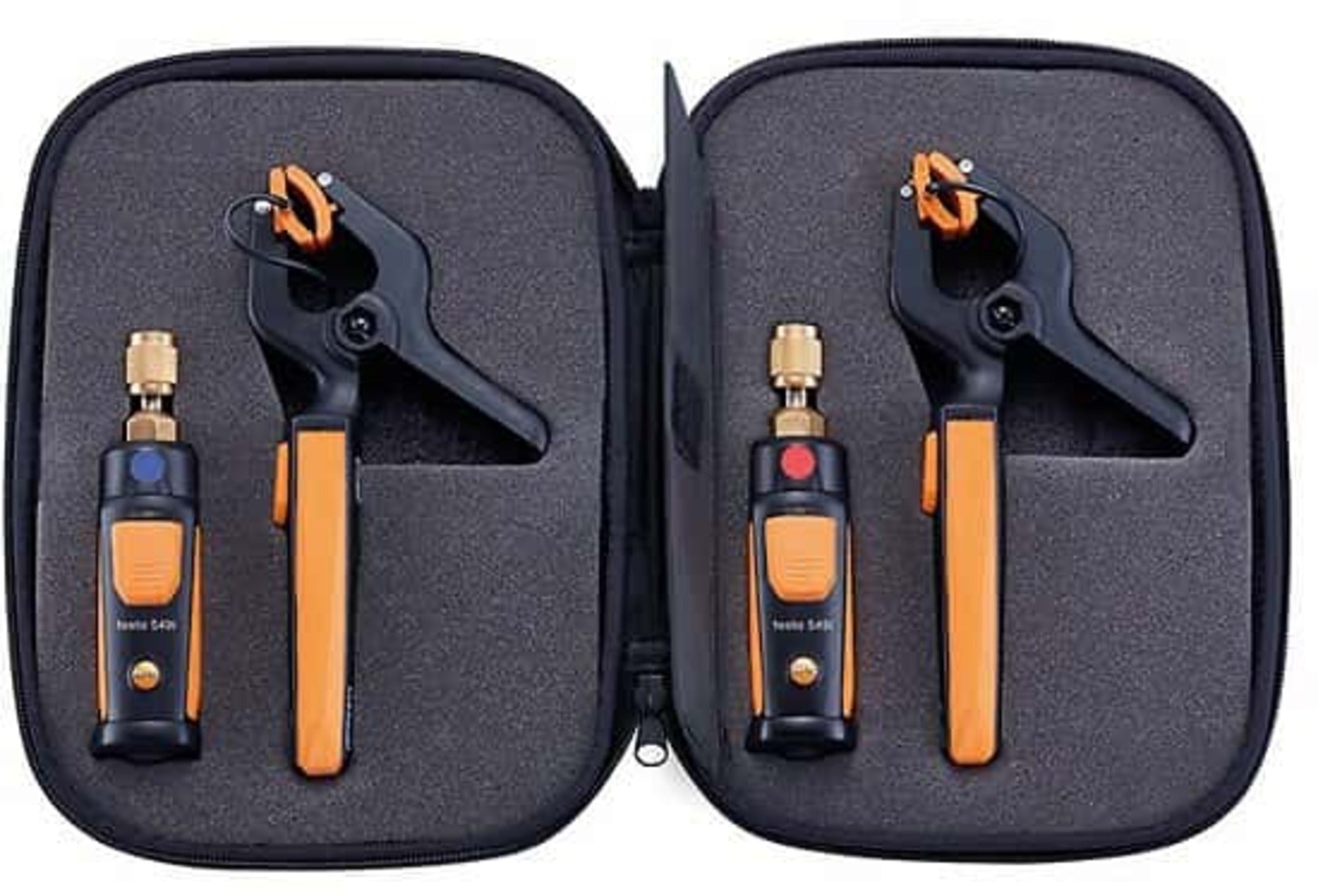

The TESTO 563000220 AC/R Smart Probe Set is a combination of four instruments designed to measure high-side and low-side pressures and temperatures in A/C and refrigeration systems. This kit is configured for commissioning, servicing, PM, and troubleshooting. It operates wirelessly with a smartphone via the Testo Smart Probes App, allowing remote measurement readings and data documentation. The kit includes two 115i Smart Probe Pipe-Clamp Thermometers and two 549i Refrigeration Smart Pressure Probes with 45-degree angled hose connections.

• Measure high-side and low-side refrigerant pressure and temperatures simultaneously.
• Low-loss AC/R system checks without the need for hoses.
• Calculate superheat and subcooling directly within the Smart Probe App.

Product Highlights

Complete and compact wireless AC/R test kit for efficient system analysis.

Product Information

Standard Information

• Brand: TESTO
• Manufacturer Part Number: 563000220

Technical Specifications

• Sensor Type (Testo 115i): NTC
• Measuring Range (Testo 115i): -58 to 302 °F
• Accuracy (Testo 115i): 2.3 °F (-4 to 185 °F)
• Resolution (Testo 115i): 0.1 °F
• Battery Type (Testo 115i): 3 × AAA Batteries
• Battery Life (Testo 115i): 250 hrs
• Clamp Opening Diameter (Testo 115i): 0.25 to 1.5 in
• Sensor Type (Testo 549i): N/A
• Accuracy (Testo 549i): 0.5% of final value
• Pressure Measuring Range (Testo 549i): -14 to 870 psi
• Resolution (Testo 549i): 0.1 psi
• Connection (Testo 549i): 7/16" UNF
• Overload Resistance (Testo 549i): 940 psi
• Measurable Media (Testo 549i): CFC, HFC, HCFC, N₂, H₂O, CO₂
• Battery Type (Testo 549i): 3 × AAA Batteries
• Battery Life (Testo 549i): 150 hrs
• Measuring Units (Testo 549i): bar, psi, MPa, kPa
• Compatibility: Requires iOS 8.3+ / Android 4.3+ with Bluetooth 4.0
• Storage Temperature: -4 to 140 °F
• Operating Temperature: -4 to 122 °F
• Display: Smart Phone App
