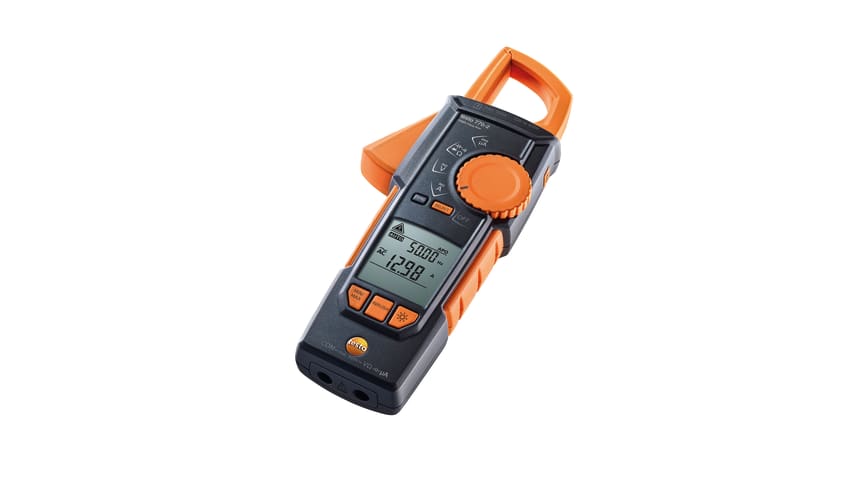

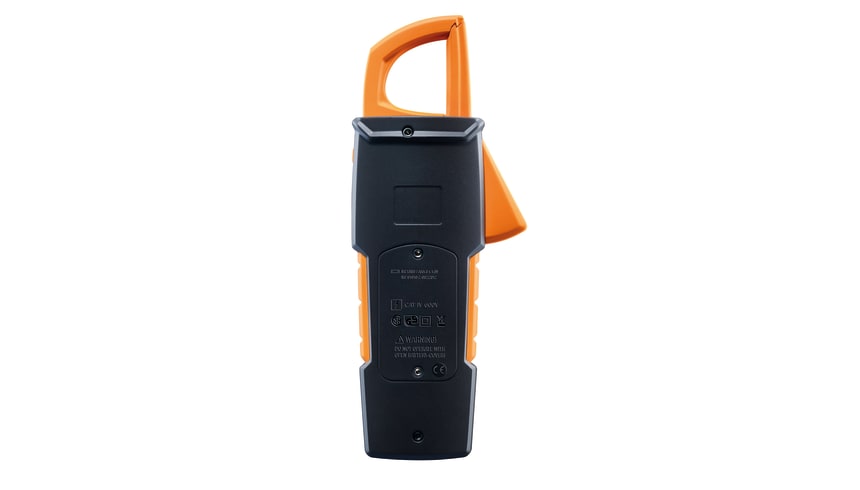

Testo 0590-7702 770-2 Clamp Hook Meter

Product Description

The Testo 0590-7702 is a 770-2 clamp hook meter. In addition to standard functions, it includes a thermocouple adapter and measures microamps. It identifies the testing in-process and automatically selects the correct meter configuration, which saves time and increases accuracy. Ideal for current and voltage measurements.

• Unique hook-on function separates and grabs wires, without using your hands
• Retractable post makes hook release fast and easy
• A for flame rod (ignition flame sensor) testing, and can measure temperature using type K thermocouple adapter

Product Highlights

The clamp meter features a fully retractable pincer arm, auto AC/DC, large two-line display, true root mean square (TRMS) measurement, starting current and A measurement, and a temperature adapter.

Product Information

Standard Information

• Brand: TESTO
• Manufacturer Part Number: 0590-7702
• Country of Origin: China

Technical Specifications

• Color: Black
• Operating Temp: -4.0 TO 122.0F
• Manufacturer Name: Testo
• Temperature - Type K TC - Measuring range: -4.0 to 932.0 F / -20 to +500 C
• Temperature - Type K TC - Accuracy: 1.8 F (32.0 to 212.0 F) / 1 C (0 to +100 C)
• Temperature - Type K TC - Resolution: 0.2 F / 0.2 C
• DC voltage - Measuring range: 1 mV to 600 V
• DC voltage - Resolution: max. 1 mV
• DC voltage - Accuracy: (0.8 % of mv + 3 Digits)
• AC voltage - Measuring range: 1 mV to 600 V
• AC voltage - Resolution: max. 1 mV
• AC voltage - Accuracy: (1.0 % of mv + 3 Digits)
• DC current Measuring range: 0.1 to 400.0 A (clamp) 0.1 to 400.0 A (measuring cables)
• DC current Resolution: 0.1 (clamp) 0.1 (measuring cables)
• DC current Accuracy: (2 % of mv + 5 Digit) (clamp) (1.5 % of mv + 5 ) (measuring cables)
• AC current Measuring range: 0.1 to 400.0 A (clamp) 0.1 to 400 A (measuring cables)
• AC current Resolution: 0.1 A (clamp) 0.1 A (measuring cables)
• AC current Accuracy: (2 % of mv + 5 Digit) (clamp) (1.5 % of mv + 5 Digit) (measuring cables)
• Resistance Resolution: max. 0.1 Ohm
• Resistance Measuring range: 0.1 to 40.00 MOhm
• Resistance Accuracy: (1.5 % of mv + 3 Digit)
• Capacitance Resolution: max. 0.01 nF
• Capacitance Measuring range: 10 nF to 100.0 F
• Capacitance Accuracy: (1.5 % of mv + 5 Digit)
• Operating humidity: 0 to 80 %rH
• Operating temperature: 14.0 to 122.0 F / -10 to +50 C
• Connectable probes: 1 x temperature probe (adapter required for type K thermocouples)
• Product colour: Black
• Standards: EN 61326-1; EN 61010-2-032; EN 61140
• Battery type: 3 x AAA
• Display type: LCD
• Display size: 2 lines

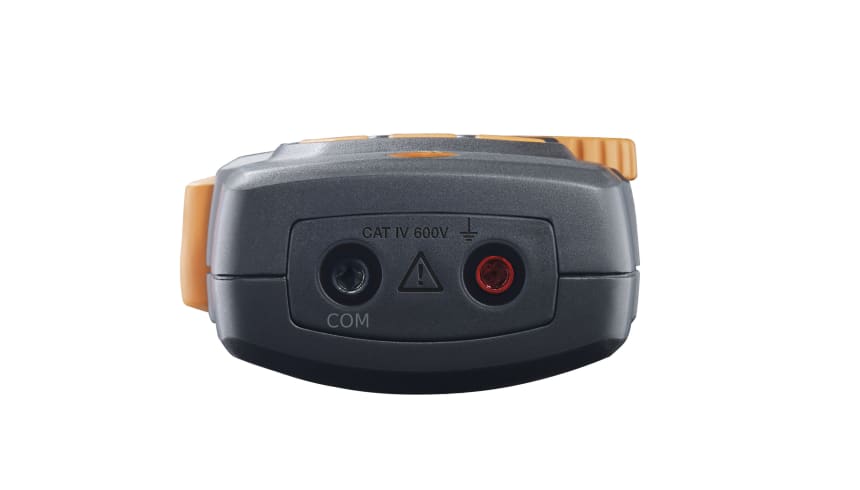

• Interface: 2 measuring jacks
• Storage temperature: 5.0 to 140.0 F / -15 to +60 C
• Overvoltage Category: CAT IV 600V; CAT III 1000V
• Authorizations: CSA; CE
• Internal resistance: 11 MOhm (AC / DC)
• Instrument Measurement Functions Diode test: yes
• Instrument Measurement Functions Continuity testing: yes
• Instrument Measurement Functions Display lighting: yes
• Instrument Measurement Functions Hold: yes
• Instrument Measurement Functions Min/Max: yes
• Instrument Measurement Functions Temperature measurement with adapter: yes
• Instrument Measurement Functions True RMS: yes
• Instrument Measurement Functions Inrush current measurement: yes
• Instrument Measurement Functions Display (counts): 4,000
• Instrument Measurement Functions A current measuring range: yes
• Instrument Measurement Functions Automatic measurement parameter detection: yes
• DMM Functions: AC/DC Current, AC/DC Voltage, Capacitance, Continuity, Diode, Frequency, Resistance, Temperature
• Current Measure AC Max: 400A
• Voltage Measure AC Max: 600V
• Voltage Measure DC Max: 600V
• Resistance Measure Max: 40Mohm
• DMM Response Type: True RMS
• Range Selection: Auto, Manual
• No. of Digits: 3.75
• Basic Accuracy: 0.8%
• AC/DC Voltage Range: 1 mV to 600V
• AC/DC Current Range: 0.1A to 400AAC/DC
• A Current Range: 0.1 A to 400 A
• Temperature Range: -4 F to 932 F (-20 C to 500 C)
• Resistance Range: 0.1 to 40 M
• Capacitance Range: 0.001 F to 100 F
• Frequency Range: 1 Hz to 10 kHz
• Continuity: < 30
• Diode Test: 2.5V
• Safety Category: CAT IV 600V/CAT III 1000V
