Testo 0564-5501-01 550s Manifold Smart Kit

Product Description

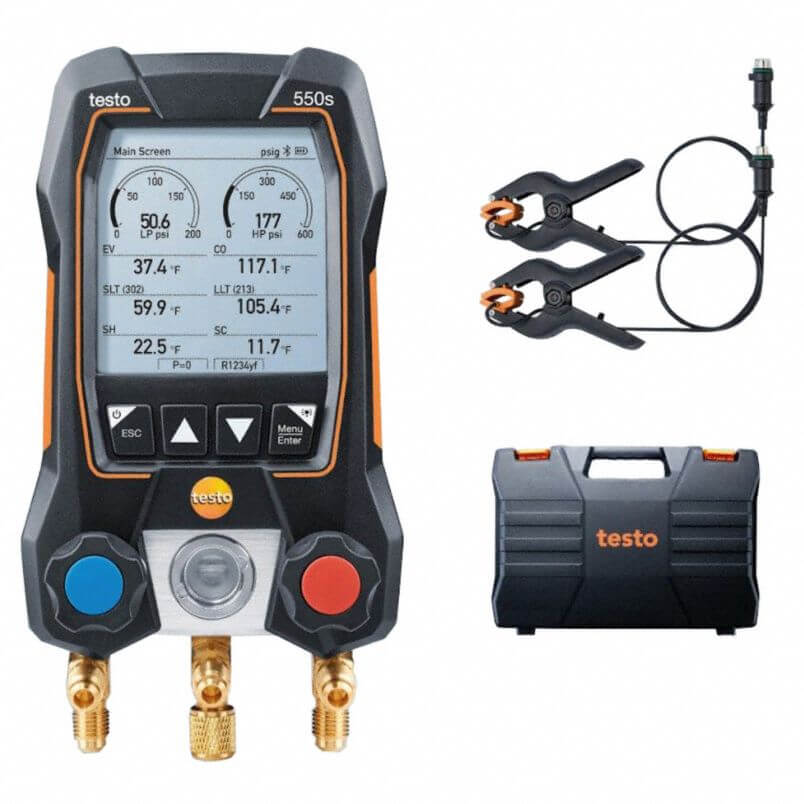

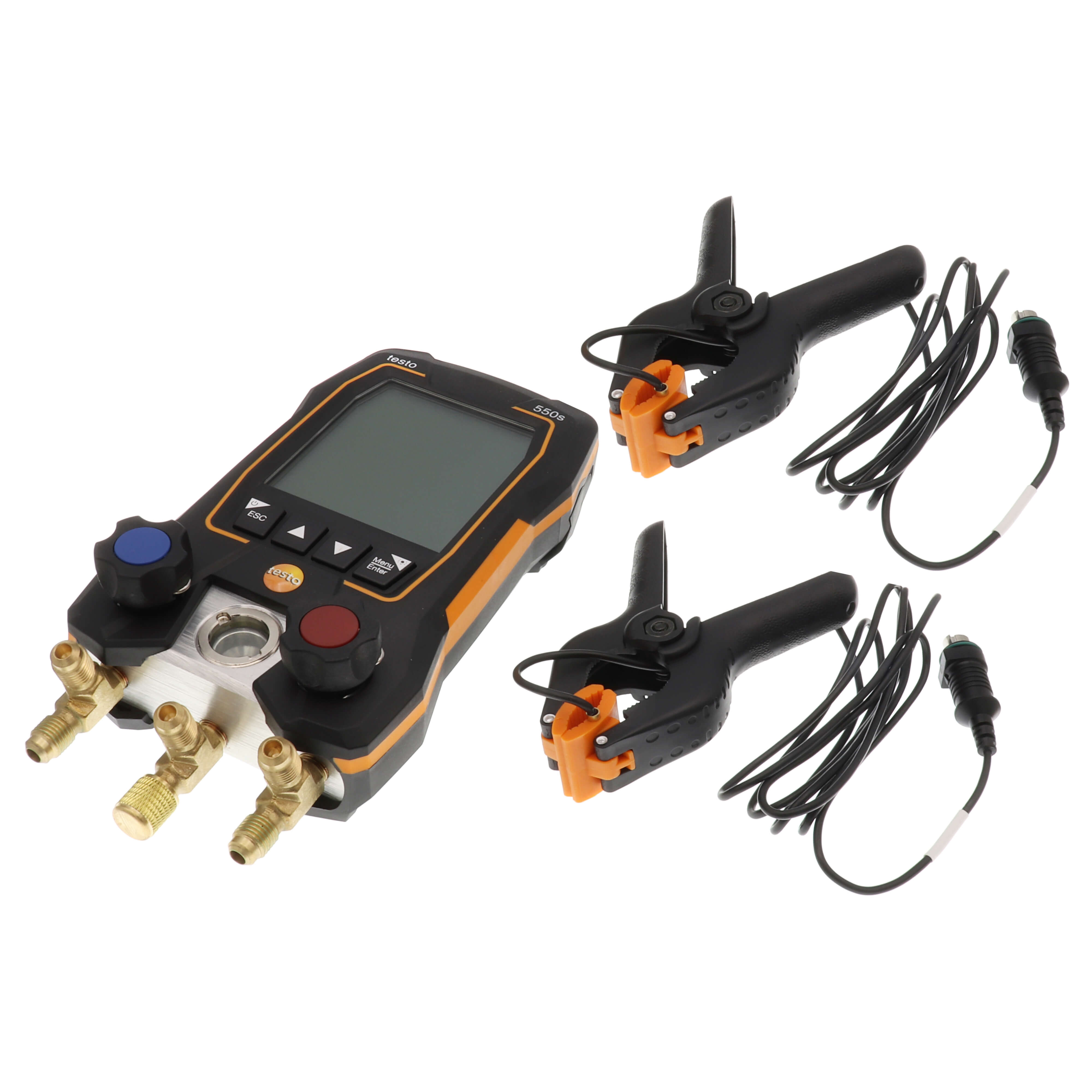

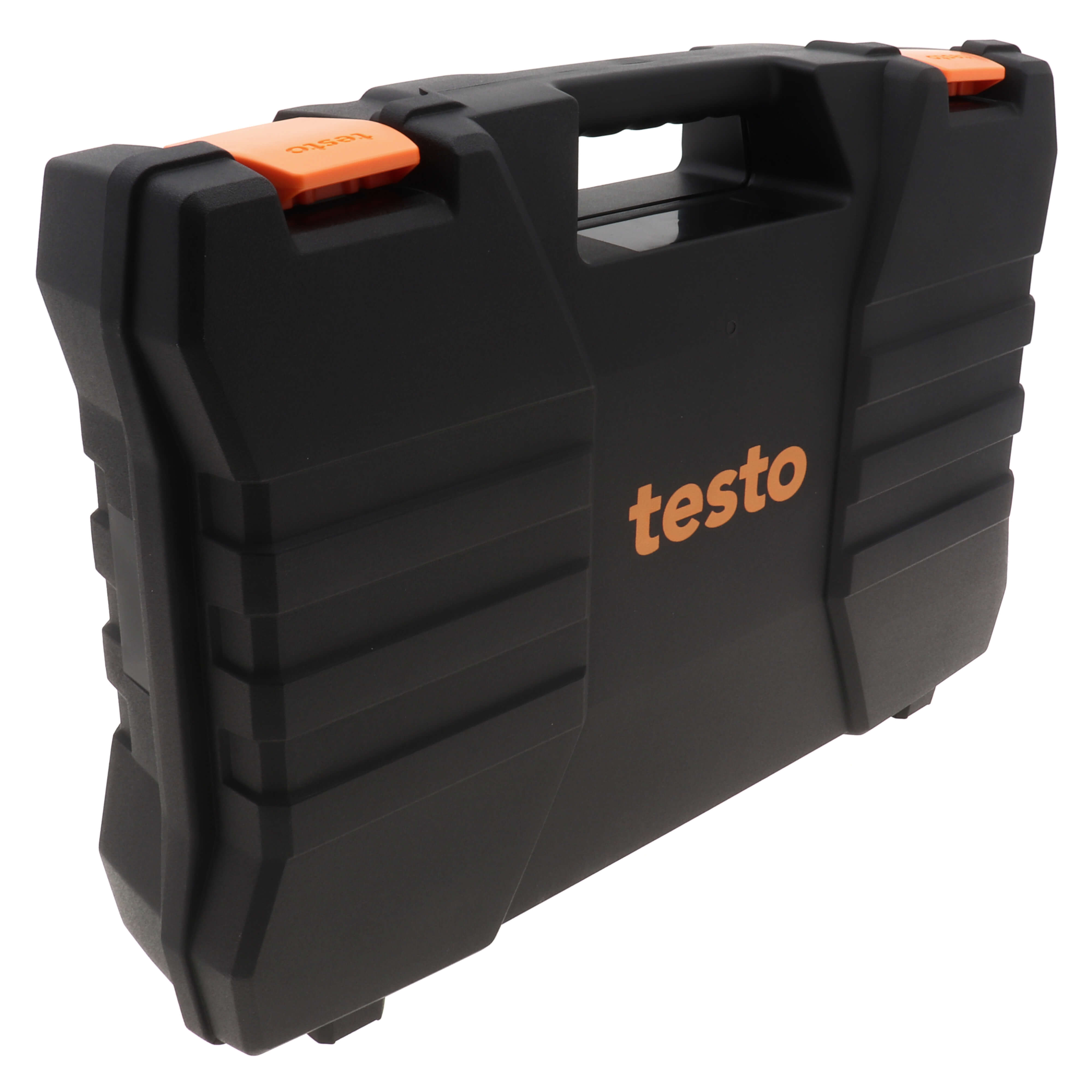

The TESTO 0564-5501-01 is a 550S Manifold Smart Kit. This digital manifold features a large graphic display and a 2-way valve block. It is designed for commissioning, servicing, and maintaining refrigeration and air conditioning systems, as well as heat pumps. The kit includes wired clamp temperature probes and a rugged transport case.

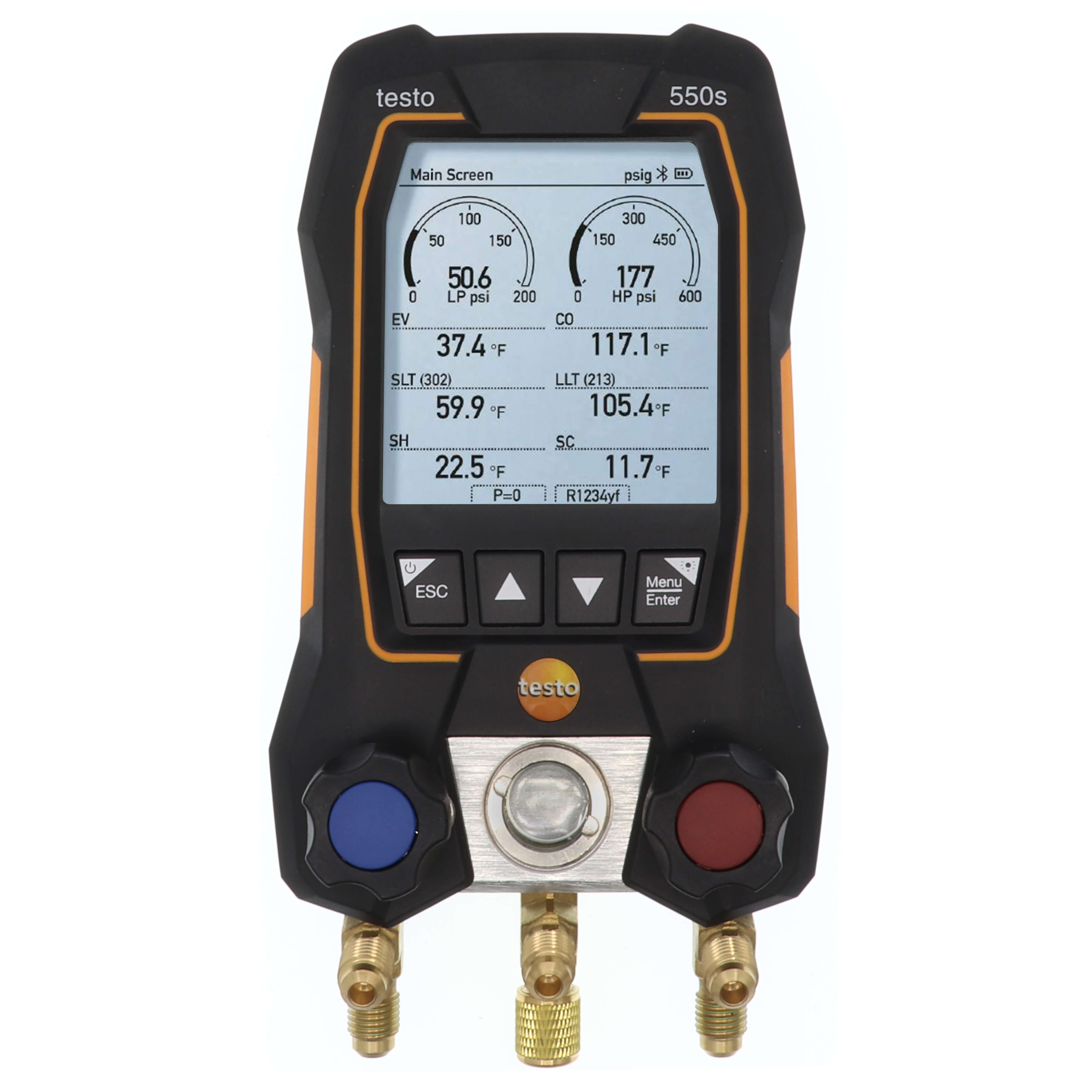

• Large graphic display for easy evaluation of measurement results.
• Stored programs guide you through measurement and enable automatic determination of system parameters.
• Bluetooth probes connect automatically for temperature, pressure, and humidity measurements.

Product Highlights

The TESTO 550s digital manifold kit is a reliable tool for HVAC professionals, offering high-quality measurement technology and smart functions for efficient system maintenance.

Product Information

Standard Information

• Brand: TESTO
• Manufacturer Part Number: 0564-5501-01
• Country of Origin: China

Technical Specifications

• Type: Digital
• Accuracy: ±0.5%
• Resolution: 0.1 °F
• Application: Pressure, Temperature
• Operating Range: -4 to 122 °F
• Manufacturer Name: Testo
• Includes: (2) Clamp Probes 2-Way Valve Block Carrying Case Includes Batteries
• Warranty: 2 yr
• Product Type: Manifold Gauge Set
• Measurement Range: -1 to +60 Bar
• High Pressure Limit: 65 Bar
• Brand: TESTO
• Number of Valves: 2
• Number of Hoses: 0
• Display Type: Digital
• Gauge Type: High Side/Low Side
• Display Location: Wireless Handset
• Display Illumination: Backlit
• High Side Display Pressure - Minimum: -15 psi
• High Side Display Pressure - Maximum: 870 psi
• Low Side Display Pressure - Minimum: -15 psi
• Low Side Display Pressure - Maximum: 870 psi
• For Refrigerant Type: FX80; R-11; R-114; R-1150; R-12; R-123; R-1233ZD; R-1234YF; R-1234ZE; R-124; R-125; R-1270; R-12A; R-13; R-134A; R-13B1; R-14; R-142B; R-152A; R-161; R-170; R-22; R-227; R-23; R-236FA; R-245FA; R-290; R-32; R-401A; R-401B; R-401C; R-402A; R-402B; R-404A; R-406A; R-407A; R-407B; R-407C; R-407D; R-407F; R-407H; R-408A; R-409A; R-41; R-410A; R-411A; R-412A; R-413A; R-414B; R-416A; R-417A; R-417B; R-417C; R-420A; R-421A; R-421B; R-422A; R-422B; R-422C; R-422D; R-424A; R-426A; R-427A; R-434A; R-437A; R-438A; R-442A; R-444B; R-448A; R-449A; R-450A; R-452A; R-452B; R-453A; R-454A; R-454B; R-454C; R-455A; R-458A; R-500; R-502; R-503; R-507; R-508A; R-508B; R-513A; R-600; R-600A; R-718; R-744; R-IS89; SP22
• Manifold Port Connection Size: 7/16 in
• Manifold Port Connection Gender: Male
• Manifold Port Connection Type: UNF
• Vacuum Port Connection Gender: Male
• Vacuum Port Connection Type: SAE
• Pressure Units Measured: bar; psi
• Pressure Resolution: 0.14 psi
• Temperature Units Measured: °F
• Includes Vacuum Port: Vacuum Port Not Included
• Includes Sightglass: Sightglass Included
• Includes Gauge Boots: Boots Included
• Body Material: Aluminum; Brass; Plastic
• For Operating System: Android™; iOS®
• App Compatibility: measureQuick; testo Smart
• A2L Compatibility: A2L Compatible
• Series: 550s
• Power Source: Battery
• Response Time: Instantaneous
• Battery Type: AA
• Number of Batteries Required: 4
• IP Rating: IP54
• Automatic Shut-Off Time: 10 min
• Operating Temperature - Minimum: 14 °F
• Operating Temperature - Maximum: 122 °F
• Overall Height: 8-5/16 in
• Overall Width: 2-3/8 in
• Overall Depth: 4-13/16 in
• UNSPSC: 23151820
• Temperature Measuring range: -58° to 302 °F / -50 to +150 °C
• Temperature Accuracy: ±0.9 °F / ±0.5 °C
• Temperature Resolution: 0.1 °F / 0.1 °C
• Temperature Probe connection: 2 x plug-in (NTC)
• Pressure measurement Measuring range: -15 to 870 psi / -1 to 60 bar
• Pressure measurement Accuracy: ±0.5 % Fs
• Pressure measurement Resolution: 0.14 psi / 0.01 bar
• Pressure measurement Probe connection: 3 x 7/16" – UNF
• Pressure measurement Overload rel. (high pressure): 943 psi / 65 bar
• Weight: 1.8 lbs
• Dimensions: 8.27 x 4.76 x 2.36 in. / 210 x 121 x 60 mm (LxWxH)
• Protection class: IP54
• System requirements: requires iOS 11.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0
• Auto-off: 10 min*
• Battery life: 250 h with no illumination, no Bluetooth^®; 100 h with illumination and Bluetooth^®
• Data transfer: Bluetooth®
• Radio range: 492.12 ft. / 150 m
• Refrigerants in instrument: R114; R12; R123; R1233zd; R1234yf; R1234ze; R124; R125; R13; R134a; R22; R23; R290; R32; R401A; R401B; R402A; R402B; R404A; R407A; R407C; R407F; R407H; R408A; R409A; R410A; R414B; R416A; R420A; R421A; R421B; R422B; R422C; R422D; R424A; R427A; R434A; R437A; R438A; R442A; R444B; R448A; R449A; R450A; R452A; R452B; R453a; R454A; R454B; R454C; R455A; R458A; R500; R502; R503; R507; R513A; R600a; R718 (H₂O); R744 (CO₂)
• Refrigerants update via App: R11; FX80; I12A; R1150; R1270; R13B1; R14; R142B; R152A; R161; R170; R227; R236fa; R245fa; R401C; R406A; R407B; R407D; R41; Ra11A; R412A; R413A; R417A; R417B; R417C; R422A; R426A; R508A; R508B. R600; RIS89; SP22
• Refrigerant: A2L / A3 compatibel
• Storage temperature: -4° to 140 °F / -20 to +60 °C
