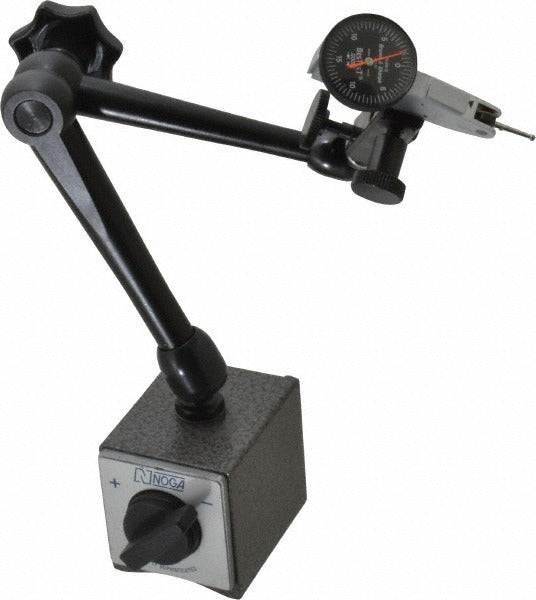

Tesa Brown Sharpe NOG99994D Dial Indicator Base Kit

Product Description

The TESA BROWN SHARPE NOG99994D is a dial indicator base kit designed for precision measurement in industrial, machining, and metrology applications. The kit features a 0-15-0 dial reading configuration with a 0.0005 inch graduation interval, allowing technicians to detect fine surface variation and runout with high resolution. A standard magnetic base is included for secure, tool-free mounting to ferrous surfaces. This kit is assembled for machinists, quality control technicians, and precision tradespeople who require a complete, ready-to-use measurement setup without sourcing components separately.

This kit is suited for use on machine tools, surface plates, fixtures, and inspection setups in manufacturing and maintenance environments. The magnetic base allows rapid repositioning during part inspection or equipment alignment tasks. The included test indicator complements the dial for measuring in confined or hard-to-reach locations. Typical users include tool and die makers, CNC machinists, quality assurance inspectors, and maintenance technicians performing alignment and runout checks on rotating equipment or precision assemblies.

Key Features

• 0-15-0 balanced dial reading for measuring both positive and negative deviation from a reference point
• 0.0005 inch graduation for high-resolution surface and runout measurement
• Includes standard magnetic base for hands-free mounting on ferrous surfaces
• Includes test indicator for measurement in restricted or angled access areas
• Complete kit configuration reduces the need to source individual components separately

Compatibility

Designed as a complete OEM-style dial indicator kit suitable for general precision measurement and inspection setups where a balanced 0-15-0 dial reading and 0.0005 inch graduation are required.

Installation Notes

Installation and use should be performed by a qualified machinist, metrologist, or maintenance technician familiar with precision measurement practices. Before mounting, ensure the magnetic base is fully engaged on a clean, flat ferrous surface to prevent indicator drift during measurement. Keep the indicator stem and contact point free of debris and verify zero calibration against a known reference before taking readings. Handle dial indicators carefully to avoid shock loads that can damage the internal gear train.
