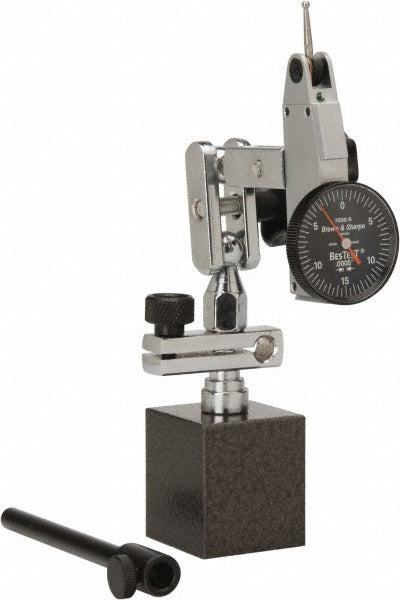

Tesa Brown Sharpe 6412670 Dial Indicator Base Kit

Product Description

The TESA BROWN SHARPE 6412670 is a dial indicator base kit designed for precision measurement tasks in machining, fabrication, and metrology applications. The kit includes a dial indicator and a universal magnetic holder set, giving technicians everything needed for surface runout checks, part alignment, and tolerance verification in a single package. The indicator features a 0.030-inch measuring range with a graduation of 0.0005 inches, displayed on a 1-inch diameter black dial with a 0-15-0 reading scale. The magnetic base mounts securely to ferrous surfaces, providing a stable setup for repeatable readings.

This kit is suited for use in machine shops, tool rooms, and manufacturing environments where precise dimensional inspection is required. The magnetic square base style allows fast positioning on surface plates, machine beds, and workholding fixtures. Typical users include machinists, quality control inspectors, and precision fabrication technicians who require consistent, repeatable measurements during setup and inspection routines.

Key Features

• 0.030-inch total measuring range for fine tolerance inspection work
• 0.0005-inch dial graduation for high-resolution readings
• 0-15-0 balanced dial scale for bidirectional measurement
• 1-inch diameter black dial for clear readability
• Universal magnetic holder set included - no additional base required
• Square magnetic base style for stable mounting on ferrous surfaces

Compatibility

Designed as an OEM-style precision measurement kit suitable for use on ferrous surfaces in standard machine shop and metrology environments.

Installation Notes

Installation is performed by machinists or quality control technicians and requires no special tools beyond standard indicator setup practices. Secure the magnetic base to a clean, flat ferrous surface before activating the magnetic clamp to ensure a stable hold. Confirm the indicator spindle is perpendicular to the measurement surface before zeroing to avoid cosine error. Always deactivate the magnetic base before repositioning to protect both the indicator and the workpiece.
