Tesa Brown Sharpe 599-7761 Magnetic Indicator Base

Product Description

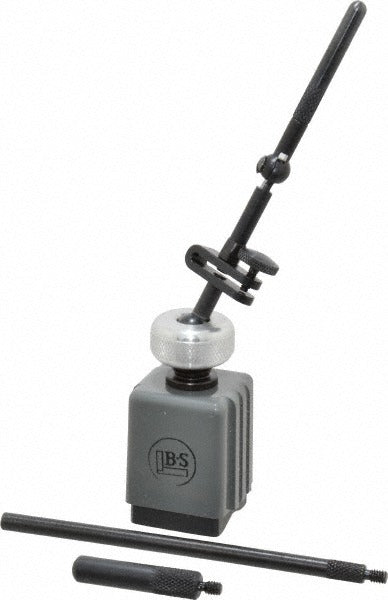

The TESA BROWN SHARPE 599-7761 is a magnetic indicator base designed to hold dial indicators and test indicators securely during precision measurement work. The base generates 15 pounds of magnetic pull to grip ferrous machine surfaces firmly, keeping the indicator stable throughout the measurement cycle. A post-style arm with a ball and socket joint allows full angular adjustment so the indicator can be positioned at virtually any angle relative to the workpiece. Holders are included with the unit. Machinists, quality control technicians, and tool room professionals install and use this type of base on surface plates, mill tables, lathe beds, and similar ferrous setups.

This indicator base suits both shop-floor and inspection-room applications. It is appropriate for use with most standard dial indicators and test indicators in setups requiring a stable, adjustable mounting point on a magnetic surface. The compact base footprint makes it practical on smaller machine tables or where clearance is limited. The ball and socket post arm provides fast repositioning without the need to break the magnetic hold on the surface.

Key Features

• 15-pound magnetic pull for secure grip on ferrous surfaces
• Post-style arm with ball and socket joint for full angular adjustment
• Compact base at 1.25 inches long by 1.25 inches wide by 1.75 inches tall
• Post height of 5 inches for adequate reach and clearance
• Holders included for immediate use with dial or test indicators

Compatibility

Designed as a standard-style magnetic indicator base for use with dial indicators and test indicators on ferrous machine surfaces such as surface plates, mill tables, and lathe beds.

Installation Notes

Place the base on a clean, flat ferrous surface before engaging the magnetic hold to ensure full contact and rated pull strength. Engage and disengage the magnetic switch carefully to avoid shifting the setup. Adjust the ball and socket arm to the desired position and lock it securely before taking measurements. Do not use on non-ferrous surfaces, as the magnetic hold will not function on aluminum, brass, or similar materials.
