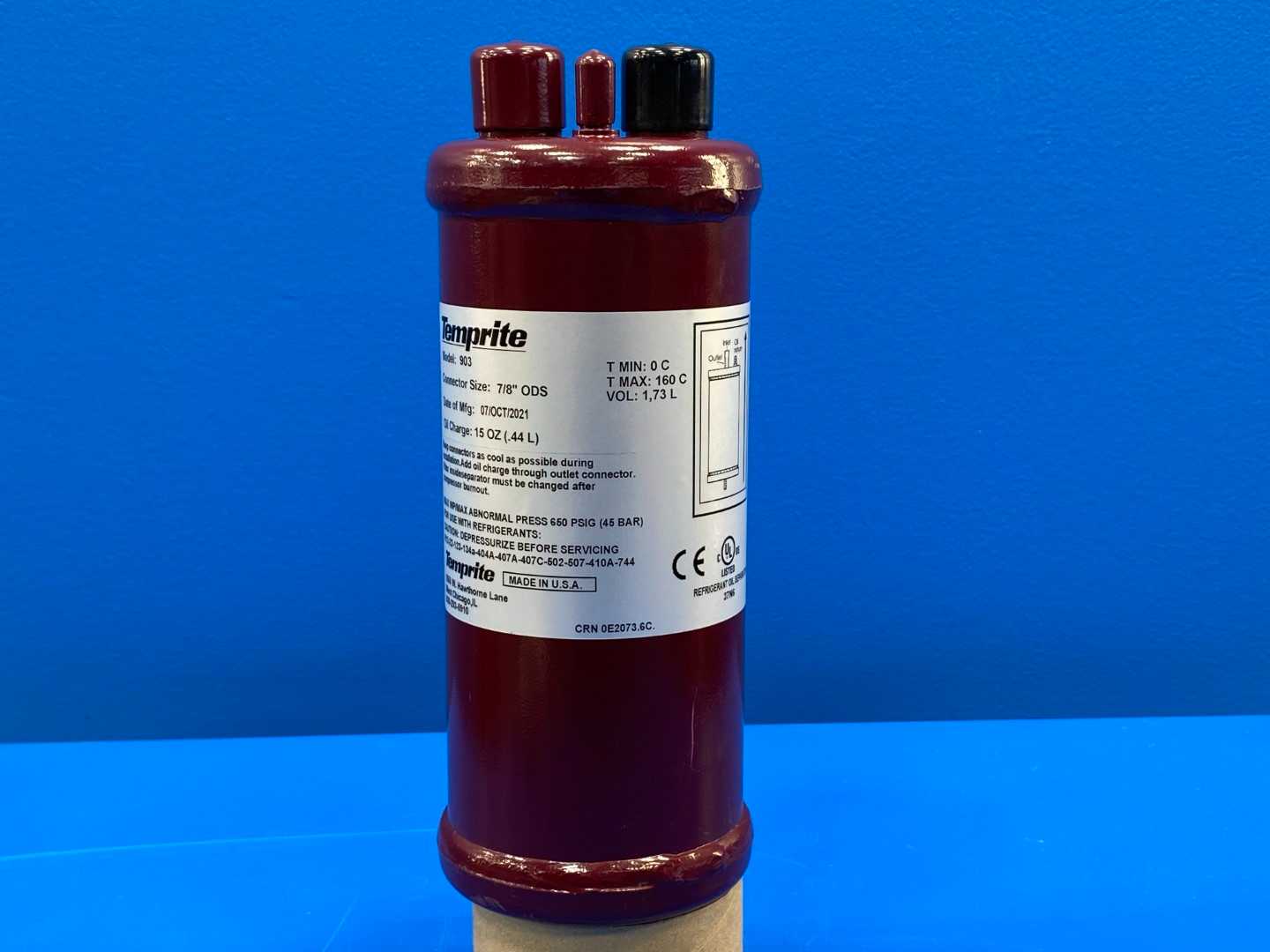

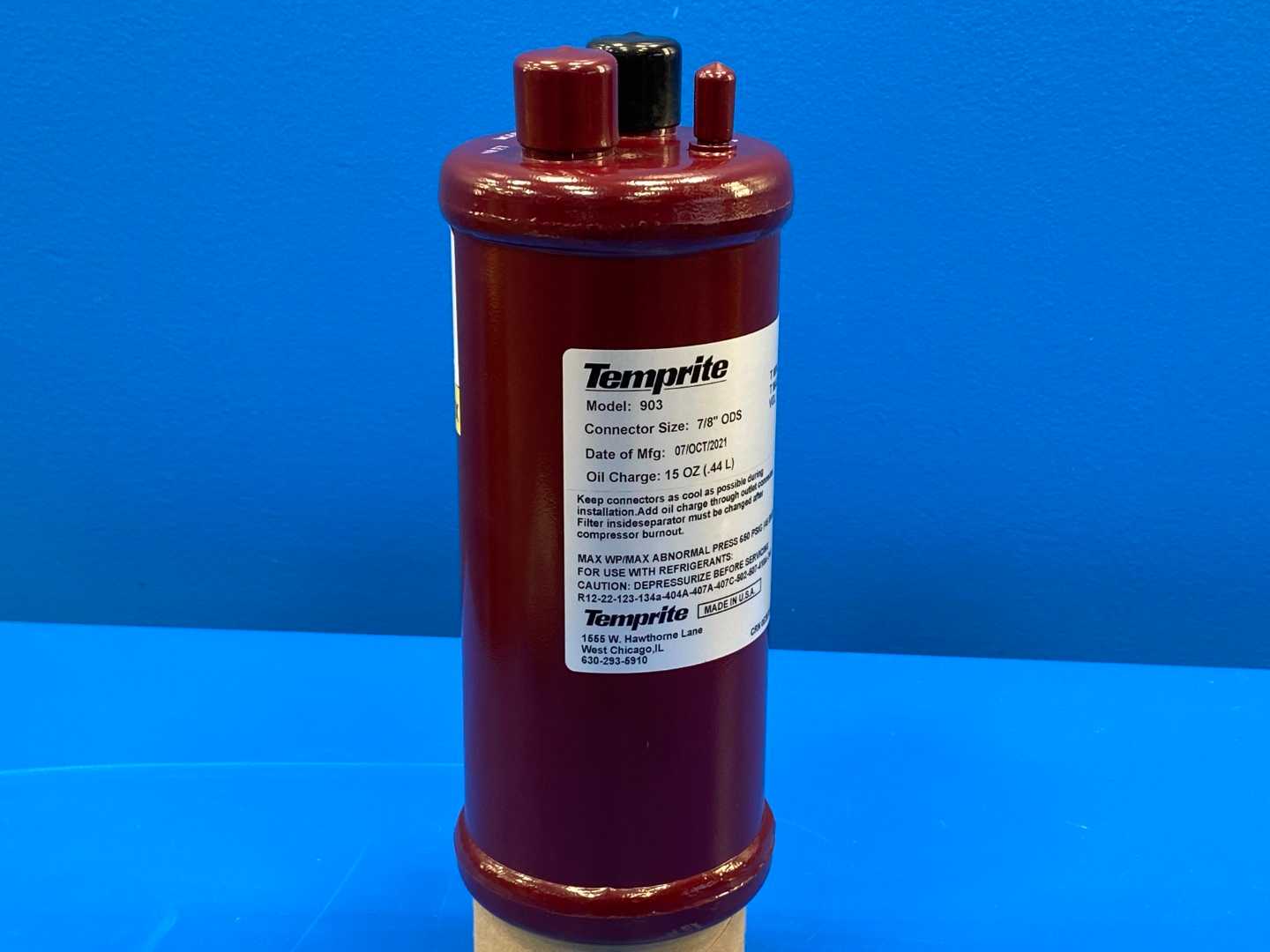

TEMPRITE 903 Coalescent Oil Separator

Product Description

The TEMPRITE 903 coalescent oil separator is meant for refrigeration and air conditioning systems. This device efficiently separates oil from refrigerant with an efficiency of 98.5% and remains effective even at low flow rates, down to twenty percent of its maximum capability.

• Compatible with HCs and subcritical CO2
• Includes a Temprite Standard Filter
• Ideal for ultra-low temperature applications

Product Highlights

The TEMPRITE 903 is designed with a matrix-type borosilicate coalescent filter that captures dirt and effluent as small as 0.3 microns. The separated oil is returned to the compressor, ensuring a clean and efficient system.

Product Information

Standard Information

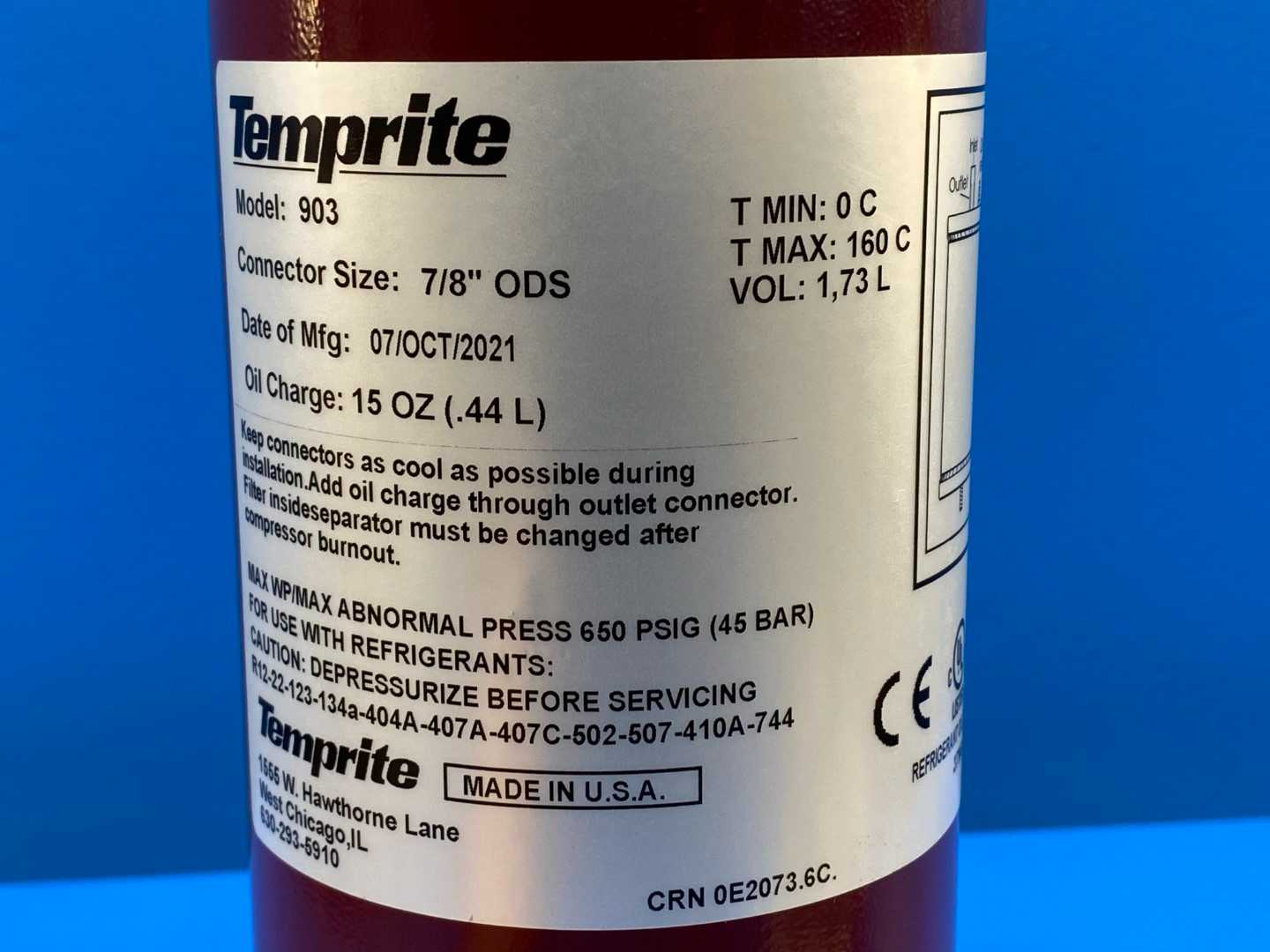

• Manufacturer: Temprite
• Model Number: 903

Technical Specifications

• Part Number: 090300000
• Maximum Working Pressure: 650 PSI

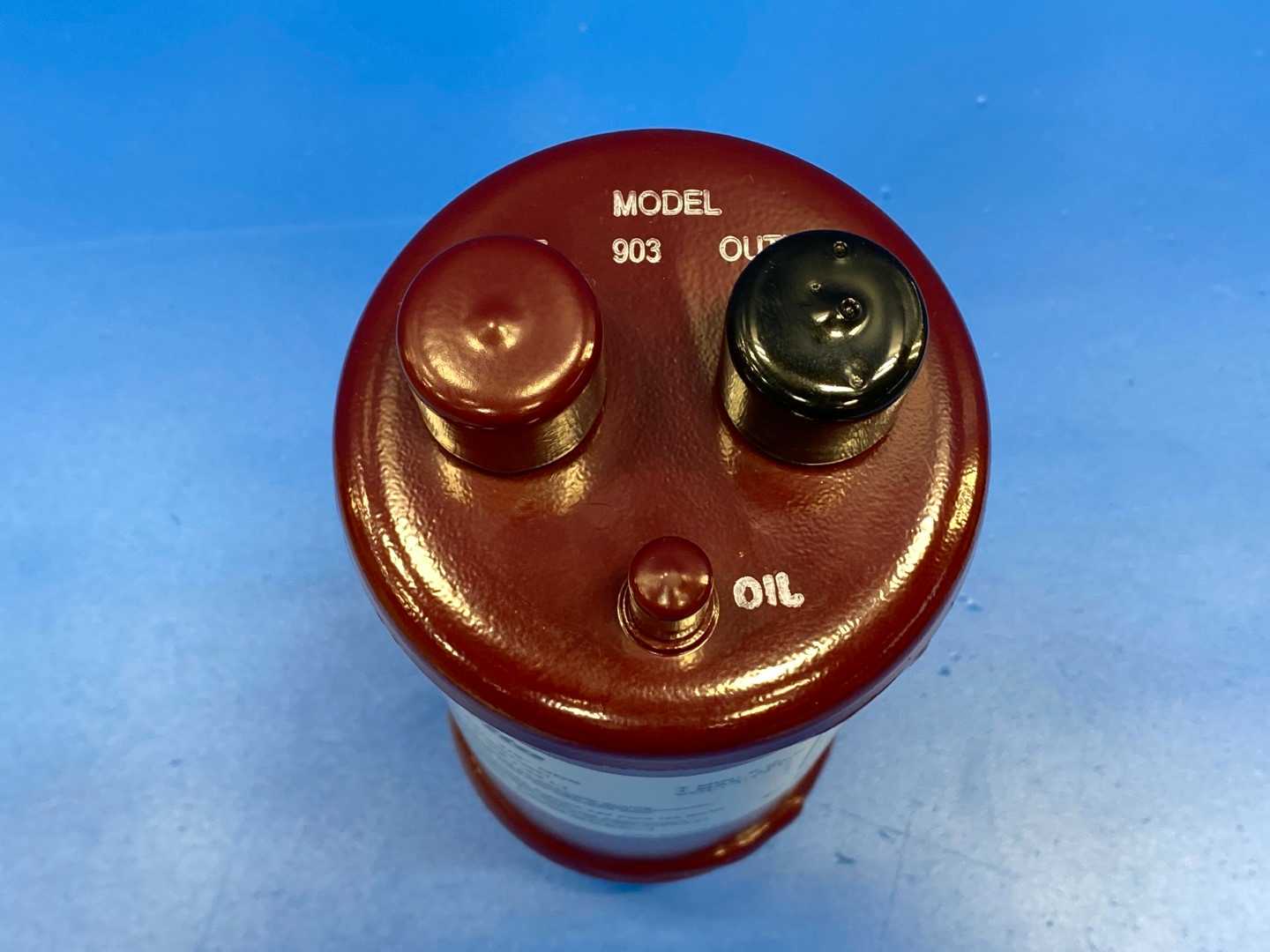

• Inlet/Outlet Connection Size: 7/8 inches
• Connection Type: ODS
• Oil Connection Size: 1/4 ODS
• Diameter: 4 inches
• Overall Length: 10 and 7/8 inches
• Oil Charge Amount: 15 ounces
• Temperature Range: 32°F to 320°F (0°C to 160°C)
• Capacity: 85 ounces
• Filter Size: 0.3 microns
