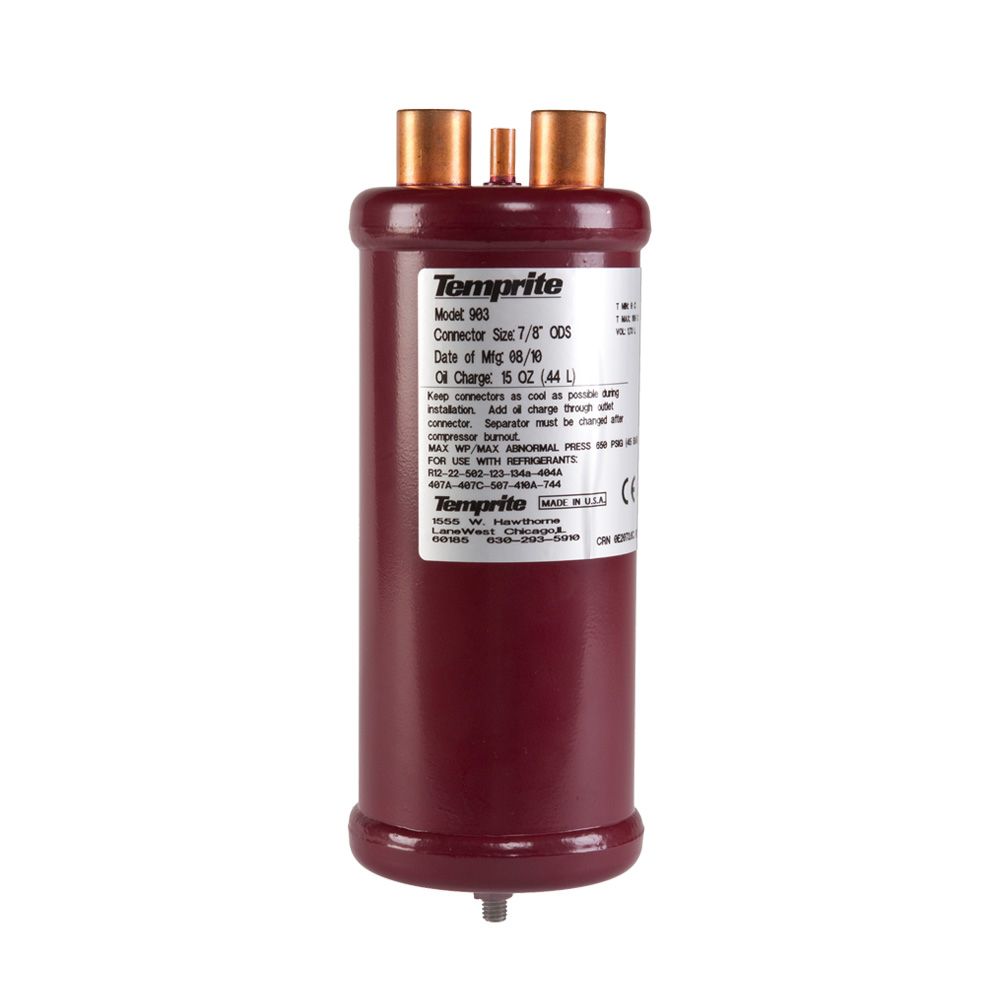

Temprite 090300000 903 Oil Separator

Product Description

The TEMPRITE 090300000 903 oil separator is a hermetic coalescent oil separator that set the industry standard for performance. Unlike conventional separators, Temprite's 900 Series maintains the same level of effectiveness down to 20% of maximum flow. It employs a matrix type borosilicate coalescent filter to pick up any and all effluent and dirt circulating in the system down to 0.3 microns.

• Maintains effectiveness down to 20% of maximum flow
• Maximum working pressure: 650 PSI
• Compatible with HC’s and subcritical CO2

Product Highlights

The Temprite 903 oil separator is the standard in ultra low temperature applications. It employs a matrix type borosilicate coalescent filter to pick up any and all effluent and dirt circulating in the system down to 0.3 microns.

Product Information

Standard Information

• Brand: TEMPRITE
• Manufacturer Part Number: 090300000

Technical Specifications

• Condition: New
• Brand: Temprite
• Model: 903
• Vendor Name: Temprite
• URI Part Number: T903
• Vendor Part Number: 090300000
• Length (In.): 14.00
• Width (In.): 4.60
• Height (In.): 4.60
• Capacity (Tons): 2.0
• CFM: 23.56
• Connection Size (In.): 7/8
• Connection Type: ODF
• Diameter (In.): 4
• Note 1: Length does not include mounting stud: 3/4 x 3/8"-16MPT
• Oil Connector: 1/4" ODF
• Overall Length (In.): 10 7/8
