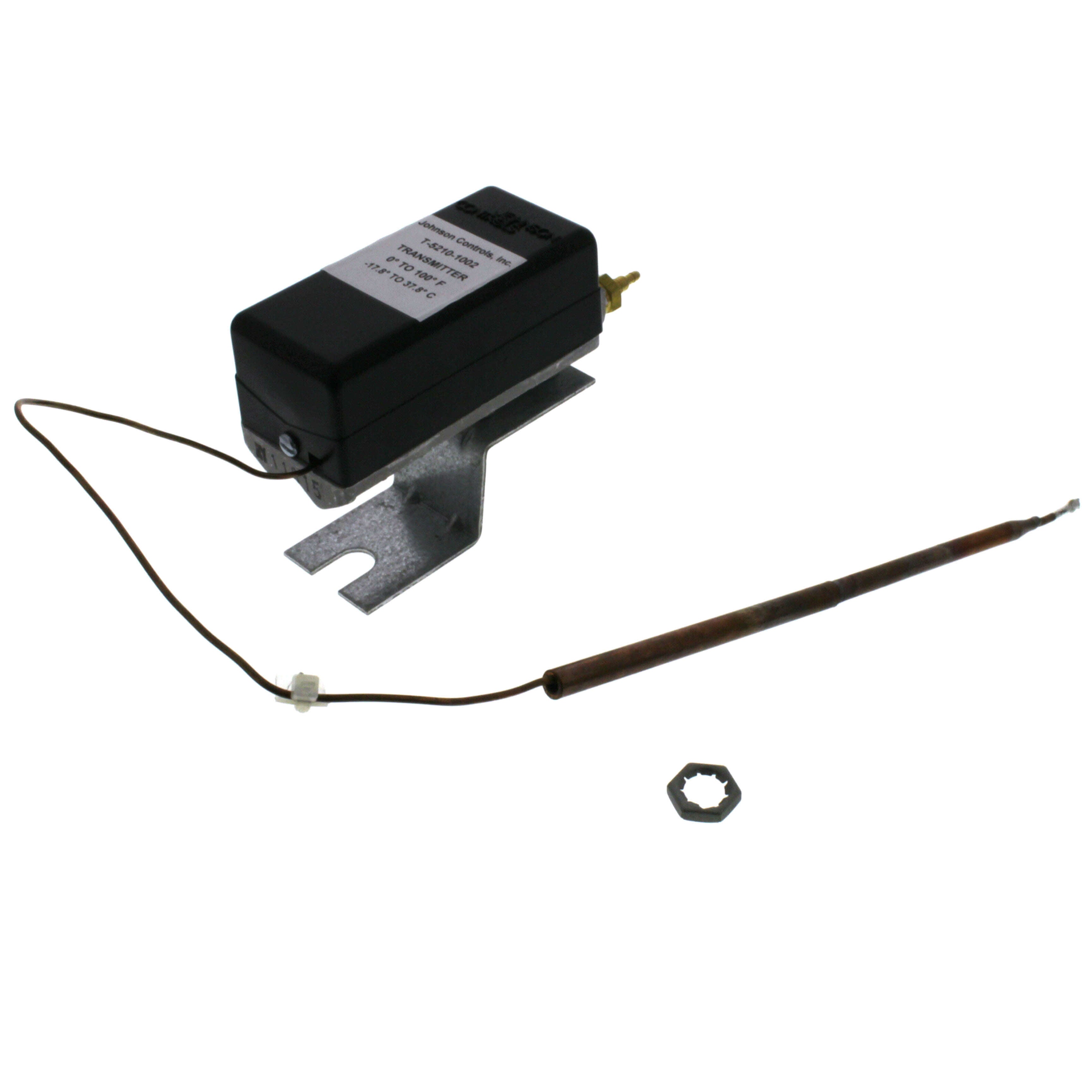

Johnson Controls T-5210-1002 Temperature Transmitter Copper Bulb w/ 5-1/2 in. Copper Capillary Temp. Range: 0-100 Deg F

Product Description

The Johnson Controls T-5210-1002 Temperature Transmitter is designed to measure and transmit temperature readings within the range of 0 to 100 degrees Fahrenheit. This device features a copper bulb and a 5-1/2 inch copper capillary, providing accurate temperature measurements for industrial and commercial applications, especially in HVAC systems.

• Measures temperature from 0 to 100 degrees Fahrenheit
• Includes 5-1/2 inch copper capillary
• Ideal for HVAC and industrial applications

Product Highlights

This device is built for durability and precision, making it suitable for harsh environments. The transmitter converts temperature measurements into an air pressure signal, ensuring reliable data transmission.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: T-5210-1002

Technical Specifications

• Measurement Range: 0 to 100 degrees Fahrenheit
• Capillary Length: 5-1/2 inches
• Sensing Bulb Diameter: 1/4 inch
• Sensing Bulb Length: 4 inches
• Output Pressure Range: 3 to 15 psi
• Air Consumption: 0.2 scfm
• Max. Ambient Temperature: 230 degrees Fahrenheit
• Control Air Pressure: 3 to 15 psi
