Telemecanique ZCMD41L1 Snap Action Limit Switch 4 Pole 2NC 2NO

Product Description

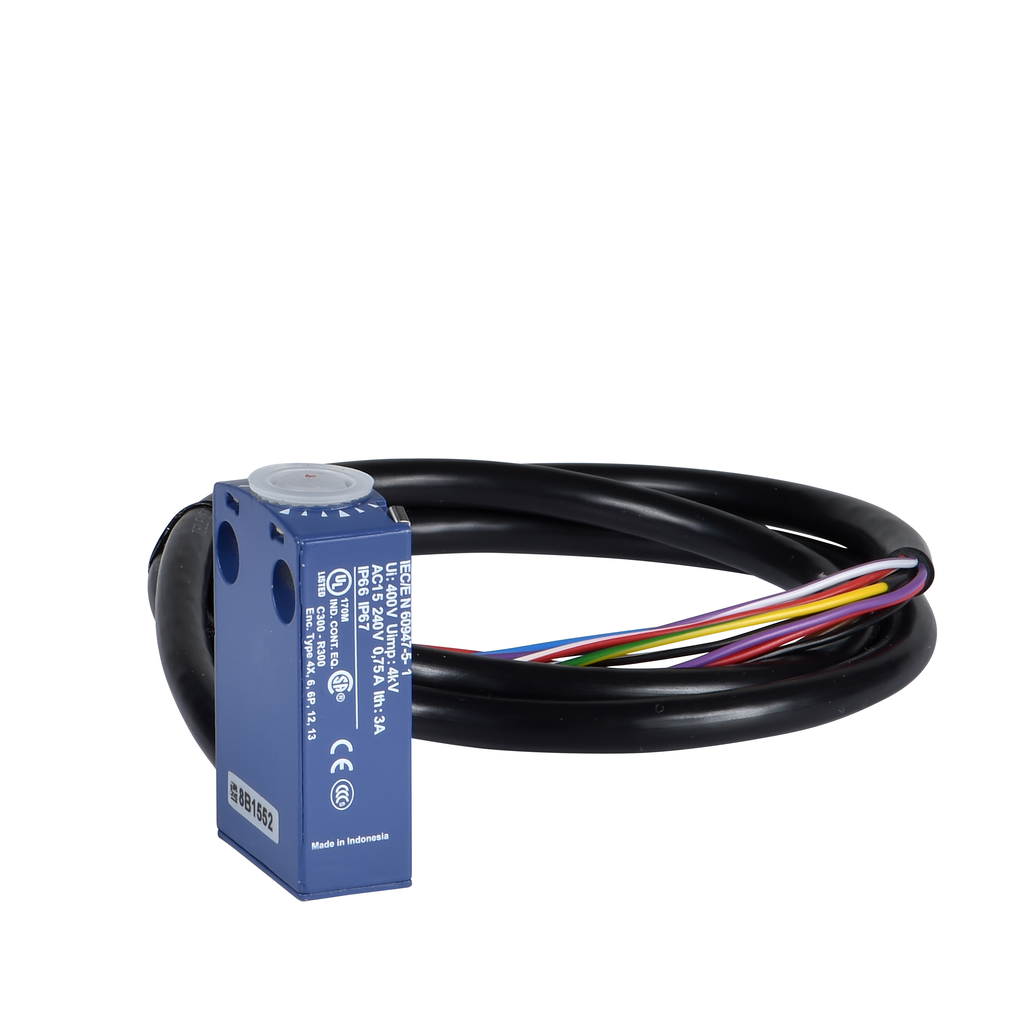

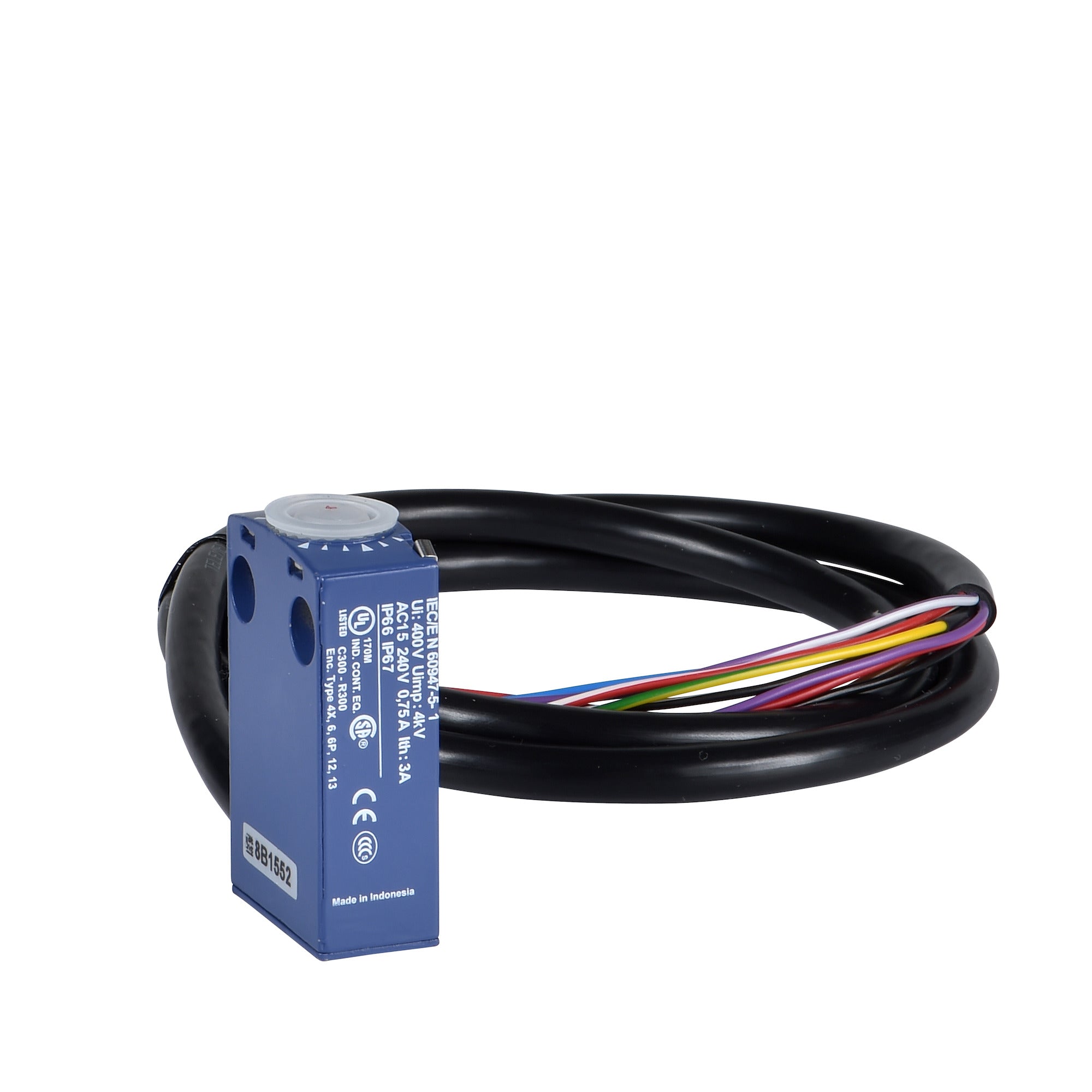

The Telemecanique ZCMD41L1 is a limit switch body that features a Zamak body and standard contacts. It includes two normally open (NO) and two normally closed (NC) snap-action contacts. This switch comes pre-cabled with a one meter cable and is designed for a wide array of applications. It is compatible with heads, actuators, and connectors from the XCKD, XCKP, and XCKT ranges.

• Constructed for durability with a Zamak body
• Designed for versatile connection options
• Suitable for a variety of applications in automation control

Product Highlights

This Telemecanique limit switch is ideal for use in control and automation systems. With a long operational lifespan, it meets multiple standards for industrial use.

Product Information

Standard Information

• Catalog Number: ZCMD41L1
• Manufacturer: Telemecanique Sensors

Technical Specifications

• Action: Snap action
• Body Type: Fixed
• Number of Poles: 4
• Contact Configuration: 2 NC + 2 NO
• Amperage Rating: 6 Amp
• Operating Cycles: 5000000 cycles at multiple voltages
• Body Material: Zamak
• Warranty Description: 18 months
