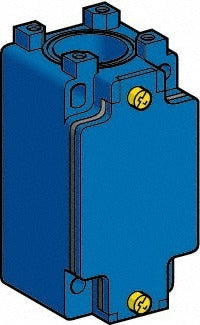

Telemecanique Sensors ZCKJ2H7 Limit Switch Body

Product Description

The TELEMECANIQUE SENSORS ZCKJ2H7 is a metal-body limit switch body designed for use with compatible ZCKE-series limit switch heads. At 3.7 inches in length, this switch body serves as the structural and electrical core of a modular limit switch assembly. It houses the switching mechanism and provides the mounting interface for a separately selected actuator head. Electrically licensed industrial maintenance technicians and automation specialists install this component in control panels, conveyor systems, and machine safety circuits where precise positional switching is required.

This limit switch body is suited for industrial applications where a rugged metal housing is required to withstand mechanical stress, vibration, and harsh environments. It is used in both light manufacturing and heavy industrial settings as part of a modular limit switch system. The ZCKJ2H7 body accepts a range of ZCKE-series heads, allowing the actuator type to be selected independently based on the specific machine or motion-detection requirement of the installation.

Key Features

• Metal body construction for durability in industrial environments
• Overall length of 3.7 inches for standard modular limit switch assemblies
• Modular design accepts multiple ZCKE-series limit switch heads
• Compatible with a broad range of ZCKE actuator head models
• Compact profile at 1.57 inches wide and 3.03 inches tall

Compatibility

Compatible with the following ZCKE-series limit switch heads: ZCKE05, ZCKE06, ZCKE08, ZCKE21, ZCKE23, ZCKE61, ZCKE619, ZCKE62, ZCKE629, ZCKE63, ZCKE64, ZCKE65, ZCKE66, and ZCKE67.

Installation Notes

Installation should be performed by a qualified electrician or industrial maintenance technician. De-energize all circuits and lock out the machine power source before installing or servicing this switch body. Verify that the selected ZCKE-series head is fully seated and secured to the body before returning the circuit to service. Follow applicable NFPA 70 (NEC) and machine safety standards for limit switch wiring and mounting.
