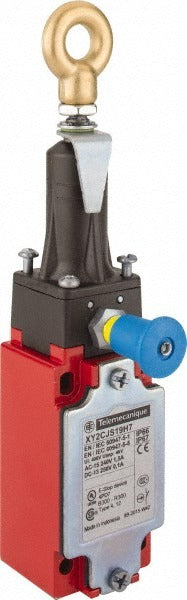

Telemecanique Sensors XY2CJS19H7 Rope Pull Limit Switch

Product Description

The TELEMECANIQUE SENSORS XY2CJS19H7 is a rope-operated limit switch designed for emergency stop and safety interlock applications on industrial machinery. Rated at 6 amps, it features a NO/2NC contact configuration and supports dual-direction rope pull operation, meaning the switch trips whether the rope is pulled from either side. A pull-button reset prevents unintended restart after actuation. A color indicator provides a quick visual confirmation of switch state. Licensed electricians and industrial maintenance technicians typically specify this device for machine guarding and conveyor safety circuits.

This switch is suited for industrial environments requiring robust emergency stop capability along linear runs of conveyors, transfer lines, or process equipment where an operator may need to initiate a stop from any point along the rope. The IP66 and IP67 ingress protection ratings make it appropriate for wet, dusty, or washdown-rated installations. Screw terminals simplify field wiring. The dual-operation design eliminates the need for separate switches at each end of a guarded zone.

Key Features

• Rope pull actuator with dual-direction operation for flexible emergency stop coverage
• NO/2NC contact configuration supports safety relay and control circuit wiring requirements
• Pull-button reset prevents automatic restart after an emergency stop event
• IP66 and IP67 ingress protection for wet, dusty, and washdown environments
• Color indicator provides immediate visual status of switch state
• Screw terminal connections for straightforward field installation

Compatibility

Designed as an OEM-style replacement or new-installation rope pull emergency stop limit switch for industrial machinery safety circuits requiring a NO/2NC contact configuration with dual-direction rope actuation.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements and applicable machine safety standards including EN/IEC 60947-5-5 and EN/ISO 13850. De-energize and lock out the machine before wiring or mounting the switch. Ensure rope tension and mounting bracket alignment are verified after installation so the switch actuates reliably from both pull directions. Do not bypass the pull-button reset feature, as this is a required safety function under applicable machinery directives.
