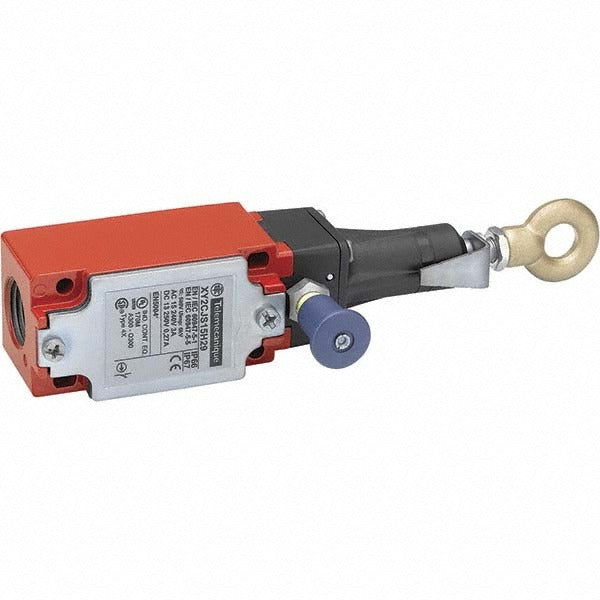

Telemecanique Sensors XY2CJS15 Rope Limit Switch 10A

Product Description

The TELEMECANIQUE SENSORS XY2CJS15 is a rope-operated limit switch designed for industrial emergency stop and safety interlock applications. Rated at 10 amps with a NO/NC contact configuration, this switch activates via rope pull in dual directions, meaning either direction of rope tension triggers the switching action. A pull-button reset prevents automatic restart after actuation, and a built-in color indicator provides immediate visual status feedback. Licensed electricians and industrial maintenance technicians install this device on conveyor lines, machinery guarding systems, and other equipment where a remote emergency stop point is required.

This switch is suited for industrial machinery installations where workers may need to halt equipment from multiple points along a line. The dual-operation rope pull mechanism is a common fit for conveyor safety systems, textile machinery, and packaging equipment. Screw terminal connections simplify wiring to control circuits. The IP66 and IP67 ingress protection ratings make the XY2CJS15 appropriate for wash-down environments and locations exposed to dust or directed water spray.

Key Features

• Rope pull actuator with dual-direction operation triggers switch from either pull direction
• NO/NC contact configuration supports standard safety circuit integration
• Pull-button reset prevents automatic restart after an emergency stop event
• Color indicator provides instant visual confirmation of switch state
• Screw terminal connections for straightforward field wiring
• IP66 and IP67 ingress protection for wet and dusty industrial environments

Compatibility

Designed as an OEM-style rope-operated limit switch for industrial machinery safety stop and interlock systems meeting EN/IEC 60947-5-5 and EN/ISO 13850 requirements.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC requirements and applicable local codes. De-energize and lock out the machine control circuit before wiring or mounting. Ensure the rope is tensioned and routed per the machinery manufacturer's guarding layout so actuation is reliable from all intended positions. Do not bypass or defeat the pull-button reset mechanism after installation.
