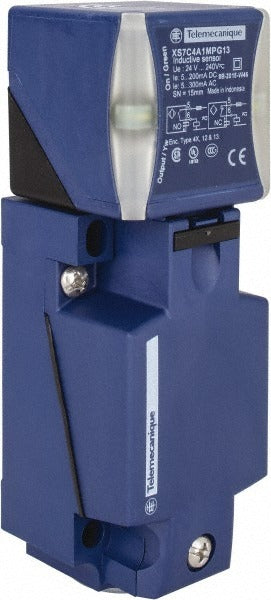

Telemecanique Sensors XS7C4A1MPG13 Proximity Sensor

Product Description

The TELEMECANIQUE SENSORS XS7C4A1MPG13 is a rectangular inductive proximity sensor designed to detect metallic targets without physical contact. It delivers a 15 mm detection distance and operates in both NPN and PNP output modes, making it adaptable to a wide range of control systems. The sensor uses a 2-wire screw clamp connection and carries an IP65, IP67, and IP69 ingress protection rating, qualifying it for wet, washdown, and high-pressure cleaning environments. The polybutylene terephthalate housing provides resistance to shock and vibration. Electricians and automation technicians install this device in industrial control panels, conveyor systems, and equipment monitoring circuits.

This sensor is suited for light industrial and heavy industrial applications where reliable non-contact metallic target detection is required. Its dual NPN/PNP output compatibility allows integration with a broad range of PLCs and control circuits. The screw clamp connector simplifies field wiring without specialized tooling. The sensor is rated for response frequencies of 25 Hz and 50 Hz, accommodating standard detection cycle requirements in automated production and process control environments. The compact rectangular body measures 40 mm in overall length and 117 mm in overall width, fitting standard mounting arrangements on machine frames and sensor brackets.

Key Features

• 15 mm detection distance for non-contact metallic target sensing
• Dual NPN and PNP output mode compatibility for flexible PLC integration
• IP65, IP67, and IP69 ingress protection for washdown and high-pressure environments
• Polybutylene terephthalate housing rated shock-resistant and vibration-resistant
• 2-wire screw clamp connection for straightforward field installation
• Compliant with CCC, CSA, UL, RoHS, and IEC standards

Compatibility

Designed as an OEM-style replacement or new-installation inductive proximity sensor for industrial control and automation systems requiring NPN or PNP 2-wire non-contact detection in standard or washdown-rated enclosures.

Installation Notes

Installation is typically performed by a licensed electrician or qualified automation technician. De-energize the control circuit and lock out the equipment power source before wiring the sensor. Verify the output mode (NPN or PNP) matches the input requirements of the connected PLC or control device before making final connections. Follow applicable NEC guidelines for low-voltage control wiring and ensure mounting hardware is secure against vibration per the manufacturer's torque recommendations in the product documentation.
