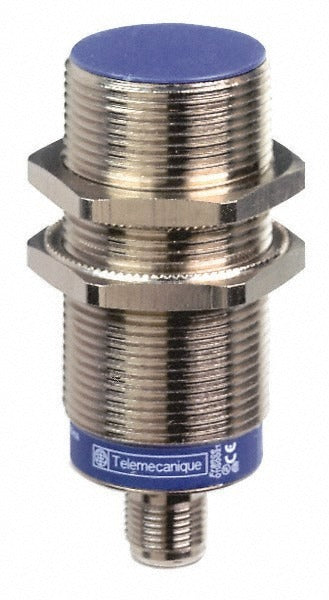

Telemecanique Sensors XS630B1NAM12 Proximity Sensor M30

Product Description

The TELEMECANIQUE SENSORS XS630B1NAM12 is a shielded cylindrical inductive proximity sensor rated for 12 to 48 volts DC operation. It delivers a 15mm (0.59 inches) detection distance with a normally open NPN output, 3-wire configuration, and a response frequency of 500 Hz. Housed in an M30 brass body with M30x1.5 threading and an overall length of 2.91 inches, this sensor is built for demanding industrial environments. It carries IP67 and IP69K ingress protection ratings, making it resistant to dust, high-pressure washdowns, shock, and vibration. Installation is typically handled by industrial electricians and automation technicians working on machine control or conveyor systems.

This sensor suits applications in manufacturing, packaging, material handling, and process automation where reliable non-contact detection of metallic targets is required. The M30 shielded body allows flush mounting in metal machine frames without requiring a clearance zone around the sensing face. The four-pin M12 connector simplifies field wiring and allows quick disconnect for maintenance. It is appropriate for both light industrial and heavy-duty wash-down environments given its dual IP67 and IP69K ratings.

Key Features

• 15mm detection distance (0.59 inches) for non-contact metallic target sensing
• NPN normally open output with 3-wire hookup and 200 mA maximum load capacity
• 12 to 48 volts DC operating range for broad power supply compatibility
• 500 Hz response frequency suitable for high-speed detection applications
• IP67 and IP69K rated brass housing with shock and vibration resistance
• CE, CSA, UL Listed and RoHS compliant with IEC 60529 and DIN 40050 standards

Compatibility

Designed as an OEM-style replacement or direct installation inductive proximity sensor for industrial automation systems requiring an M30 shielded cylindrical sensor with NPN output and an M12 four-pin connector interface.

Installation Notes

Installation should be performed by a qualified industrial electrician or automation technician with the machine de-energized and locked out per applicable NFPA 70E and local electrical codes before wiring. The M30x1.5 threaded body should be mounted using the appropriate jam nuts to the specified torque guidance in the manufacturer documentation. Verify the NPN wiring polarity and output mode match the PLC or control input requirements before applying power. Do not exceed the 200 mA maximum load rating on the output circuit.
