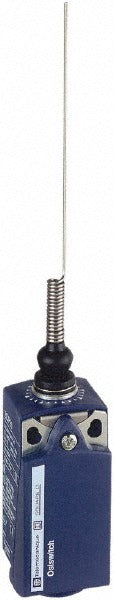

Telemecanique Sensors XCKP2106N12 Limit Switch Spdt

Product Description

The TELEMECANIQUE SENSORS XCKP2106N12 is a general purpose limit switch designed for industrial position sensing and machine control applications. It features an SPDT contact form with a normally closed configuration and a cat whisker actuator mounted at the top of the body. The screw terminal connection and 1/2 inch NPT conduit entry make wiring straightforward for qualified electricians and automation technicians. The plastic body carries an IP66 and IP67 ingress protection rating, making it suitable for wet and washdown environments. It is rated for NEMA 1, 2, 4, 6, 12, and 13 enclosure types and operates across a wide temperature range of -13 degrees F to 158 degrees F.

This limit switch is used in industrial machinery, conveyor systems, and automated equipment where reliable position detection is required. The cat whisker actuator is well suited for detecting light contact from cams, levers, or moving parts without requiring significant actuation force. It is commonly installed in both light manufacturing and heavy-duty industrial settings where moisture resistance and broad certifications are necessary for compliance. The top actuator location allows for straightforward mounting in most standard limit switch housings.

Key Features

• SPDT contact form with normally closed configuration for reliable circuit interruption on actuation
• Cat whisker actuator at top position for low-force, sensitive position detection
• IP66 and IP67 ingress protection for washdown and wet environment use
• NEMA 1, 2, 4, 6, 12, and 13 ratings for broad enclosure compatibility
• 1/2 inch NPT conduit connection with screw terminals for standard industrial wiring
• Compliant with UL 508, CSA C22.2 No. 14, EN/IEC 60947-5-1, and RoHS requirements

Compatibility

Designed as an OEM-style replacement or direct installation limit switch for general purpose industrial control applications requiring an SPDT, NC, cat whisker actuator with top mounting and 1/2 inch NPT conduit entry.

Installation Notes

Installation should be performed by a licensed electrician or qualified industrial maintenance technician in accordance with the NEC and applicable local codes. Disconnect and lock out all power to the machine or control circuit before mounting or wiring the switch. Secure conduit connections to the 1/2 inch NPT entry with appropriate fittings to maintain the IP66 and IP67 rating. Verify actuator alignment with the cam or triggering mechanism before restoring power and testing operation.
