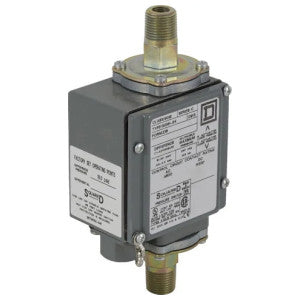

Telemecanique Sensors 9012GGW4 Pressure Switch 9012G Adjustable Scale 2 Thresholds 0 to 175 psig

Product Description

The Telemecanique Sensors 9012GGW4 is a pressure switch designed for industrial applications. This switch uses an adjustable scale with two thresholds, measuring pressure from zero to one hundred seventy-five psig. It is suited for various environments, being both water, dust, and oil-tight, making it fit for indoor and outdoor use.

• Adjustable scale for precise pressure measurement
• Two thresholds for versatile monitoring
• Durable construction for harsher conditions

Product Highlights

The 9012GGW4 is ideal for HVAC systems, hydraulic applications, and general industrial use where pressure control is essential.

Product Information

Standard Information

• Brand: Telemecanique Sensors
• Part Number: 9012GGW4

Technical Specifications

• Voltage Rating: 480VAC
• Current Rating: 10AMP
• Operating Temperature Range: -10 to 185 F
• Pressure Range: 0 to 175 psi
• Conduit Entrance: 0.5 inches NPT
• Operating Cycles: 120 per minute (max)
• Protection Class: NEMA 4/4X/13
• Compliance: UL, CSA, IEC, CE-marked
