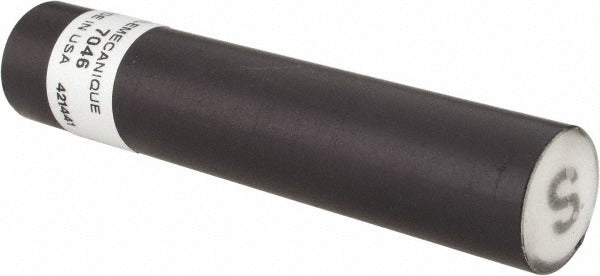

Telemecanique Sensors 7046 Magnet Actuator

Product Description

The TELEMECANIQUE SENSORS 7046 is a magnet actuator accessory designed for use with compatible proximity switches in industrial sensing applications. The actuator works by triggering the sensing element of a proximity switch when brought within range, enabling reliable non-contact position detection. It is a compact, passive component that requires no power of its own and is installed by licensed electricians or industrial maintenance technicians. Weighing 0.18 pounds, the 7046 is a drop-in accessory suited for machine automation, conveyor systems, and equipment position feedback circuits.

This magnet actuator is intended for use in industrial and commercial environments where proximity switch actuation is required. It is compatible with a defined set of TELEMECANIQUE SENSORS SG-series proximity switches, making it a reliable replacement or spare component for existing installations. Typical applications include machine guarding, door and gate position sensing, and automated equipment limit detection. Installation is straightforward and fits into existing switch mounting arrangements without modification.

Key Features

• Magnet actuator design provides non-contact, wear-free actuation of compatible proximity switches
• Compact form factor at 7.6 inches length, 7 inches width, and 5.3 inches height
• Lightweight construction at 0.18 pounds for easy integration into tight spaces
• Compatible with multiple SG-series proximity switch models from TELEMECANIQUE SENSORS
• Sold individually with a minimum order quantity of 1

Compatibility

Compatible with the following TELEMECANIQUE SENSORS proximity switches: SG2-8195, SGA-8016, SGA-8018, SGA-8031, SGA-8038, SGA-8040, SGA-8056, SGA-8072, and SGA-8176.

Installation Notes

Installation is typically performed by a licensed electrician or qualified industrial maintenance technician. De-energize all affected circuits and lock out the equipment per OSHA lockout/tagout procedures before servicing any proximity switch or actuator assembly. Verify actuator alignment with the switch sensing face during installation to ensure reliable trigger distance and consistent operation. Consult the proximity switch manufacturer documentation for mounting tolerances and actuator positioning guidelines.
