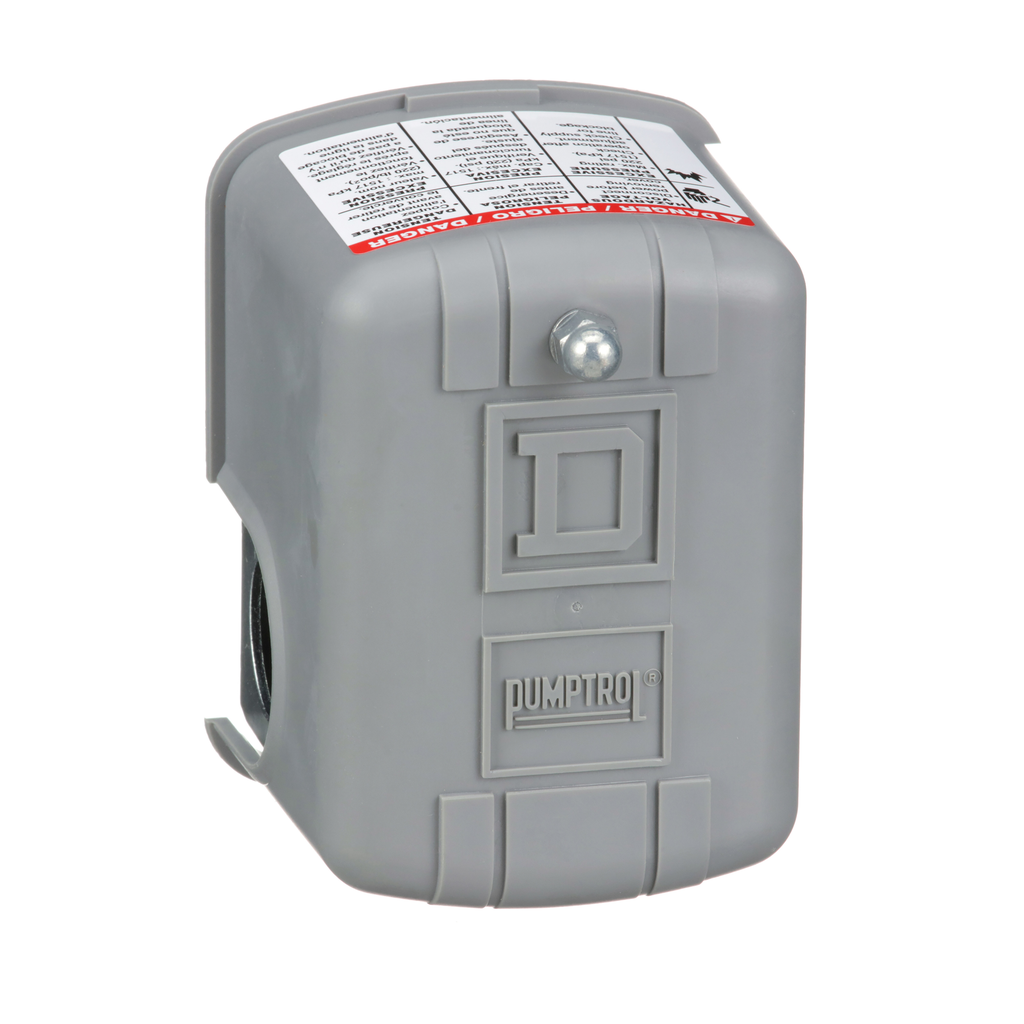

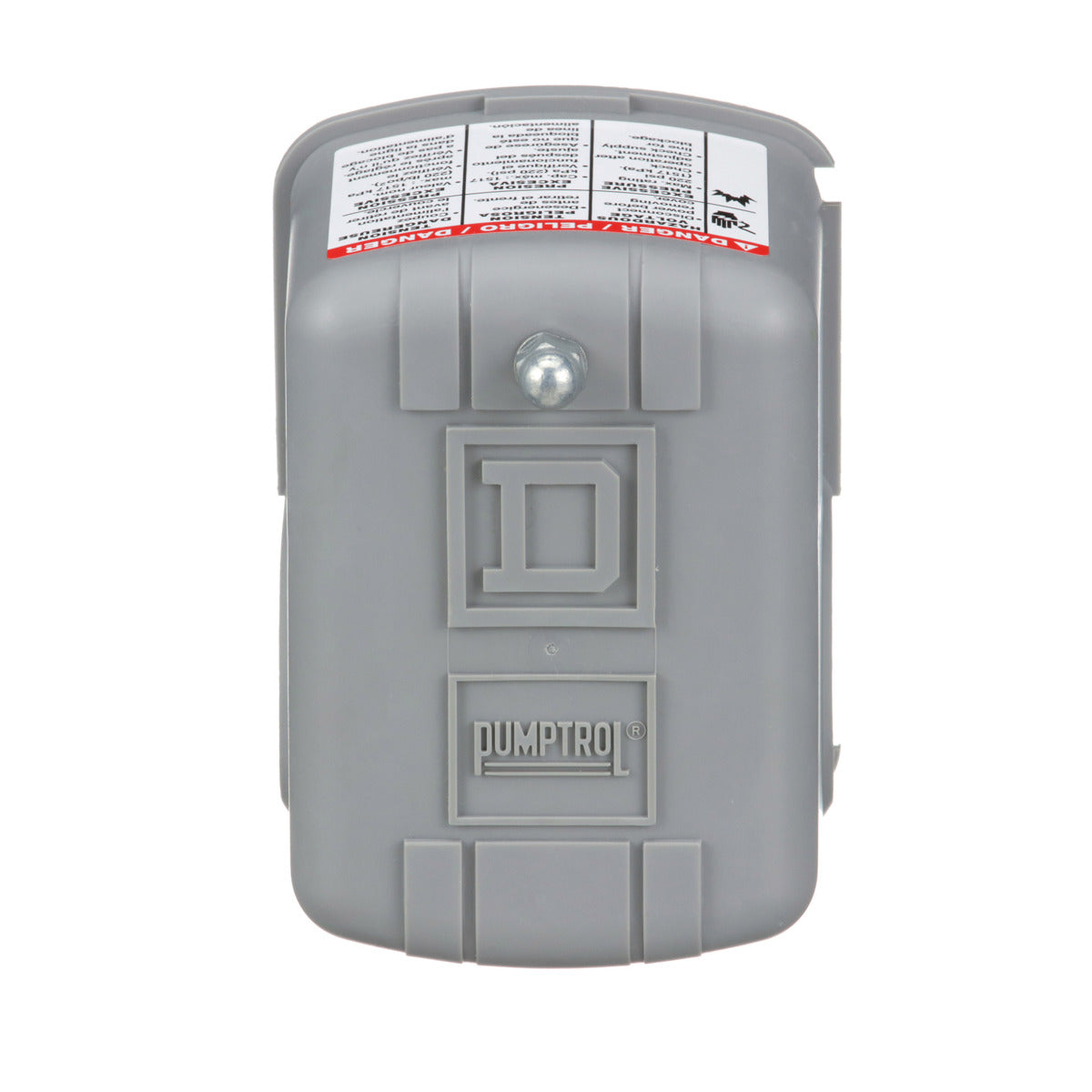

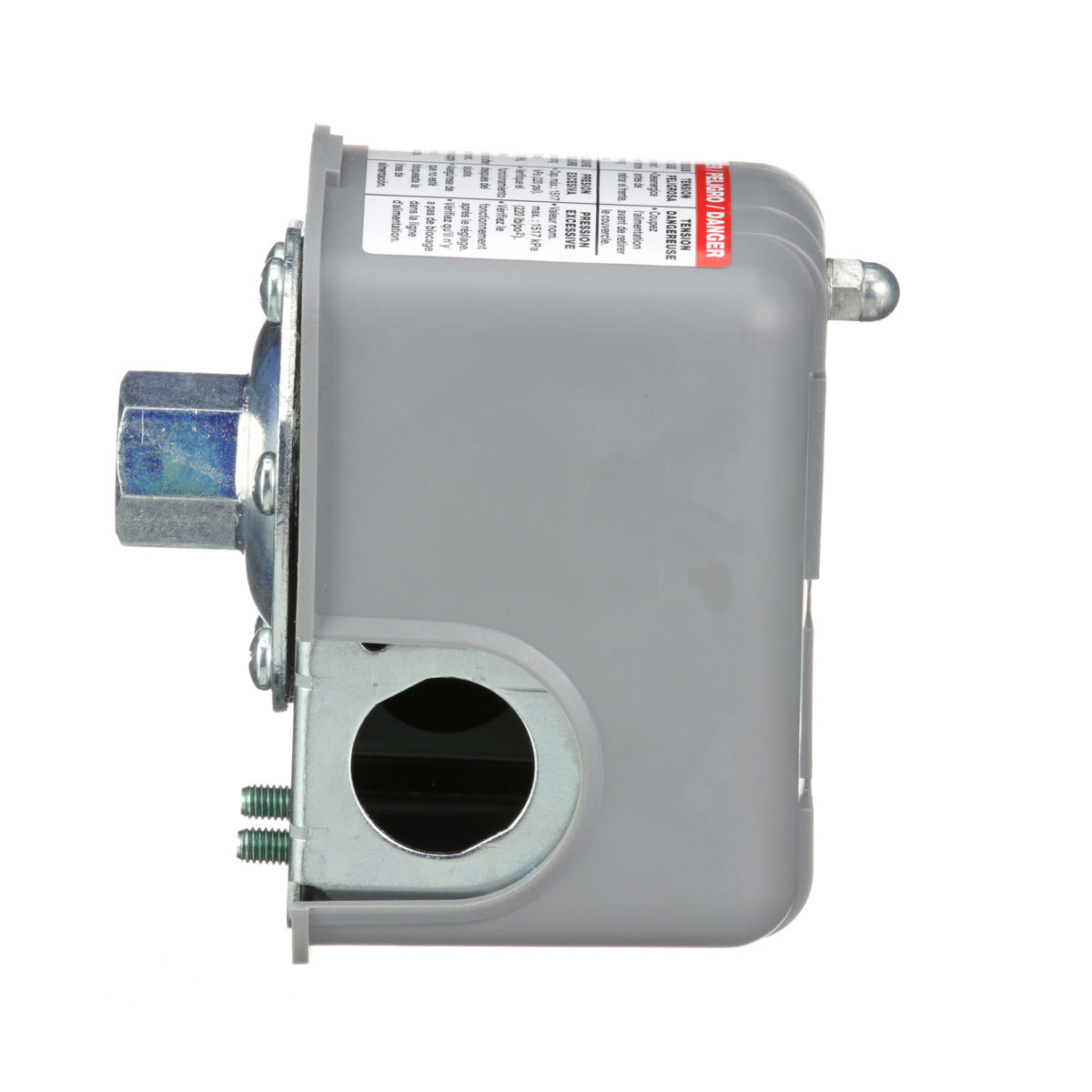

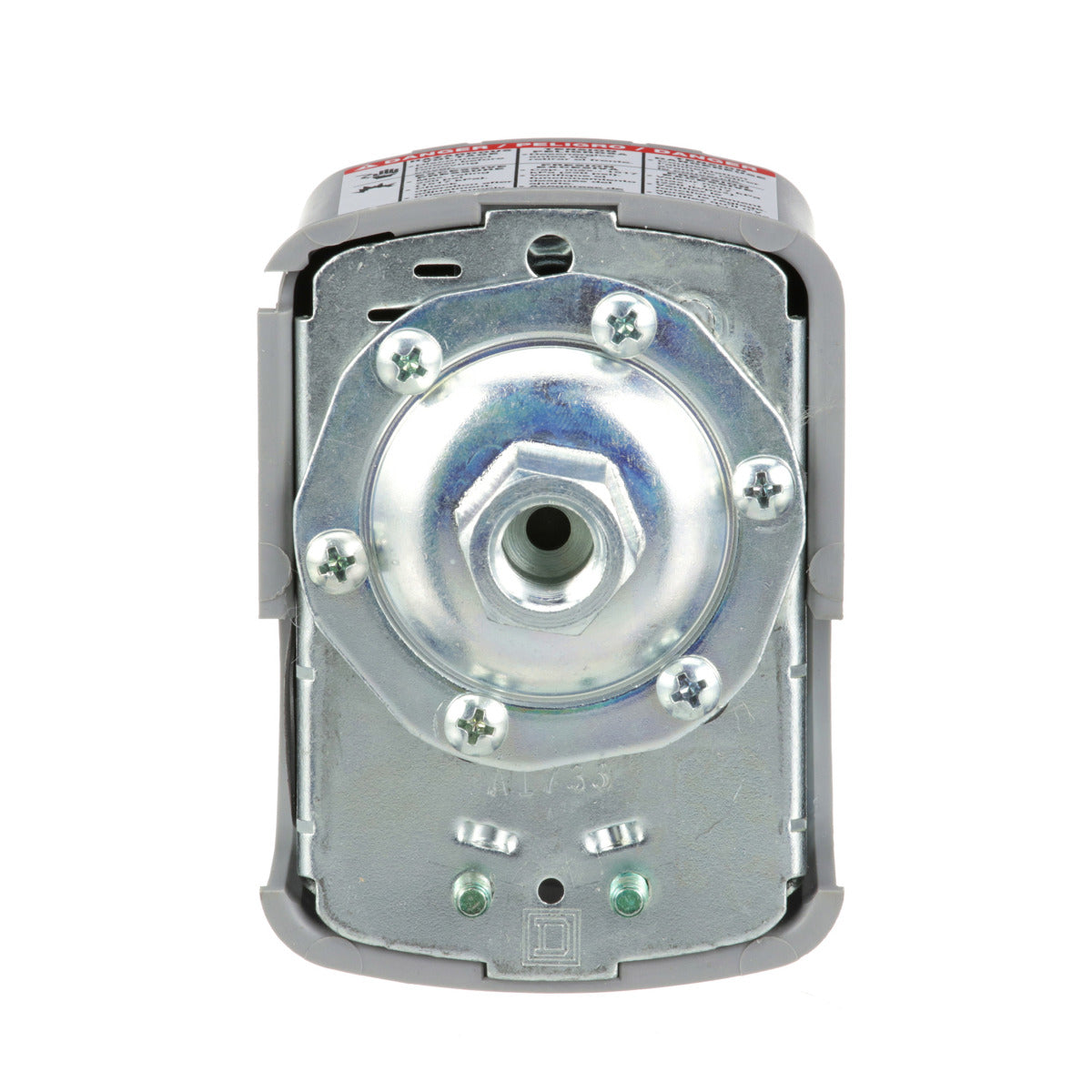

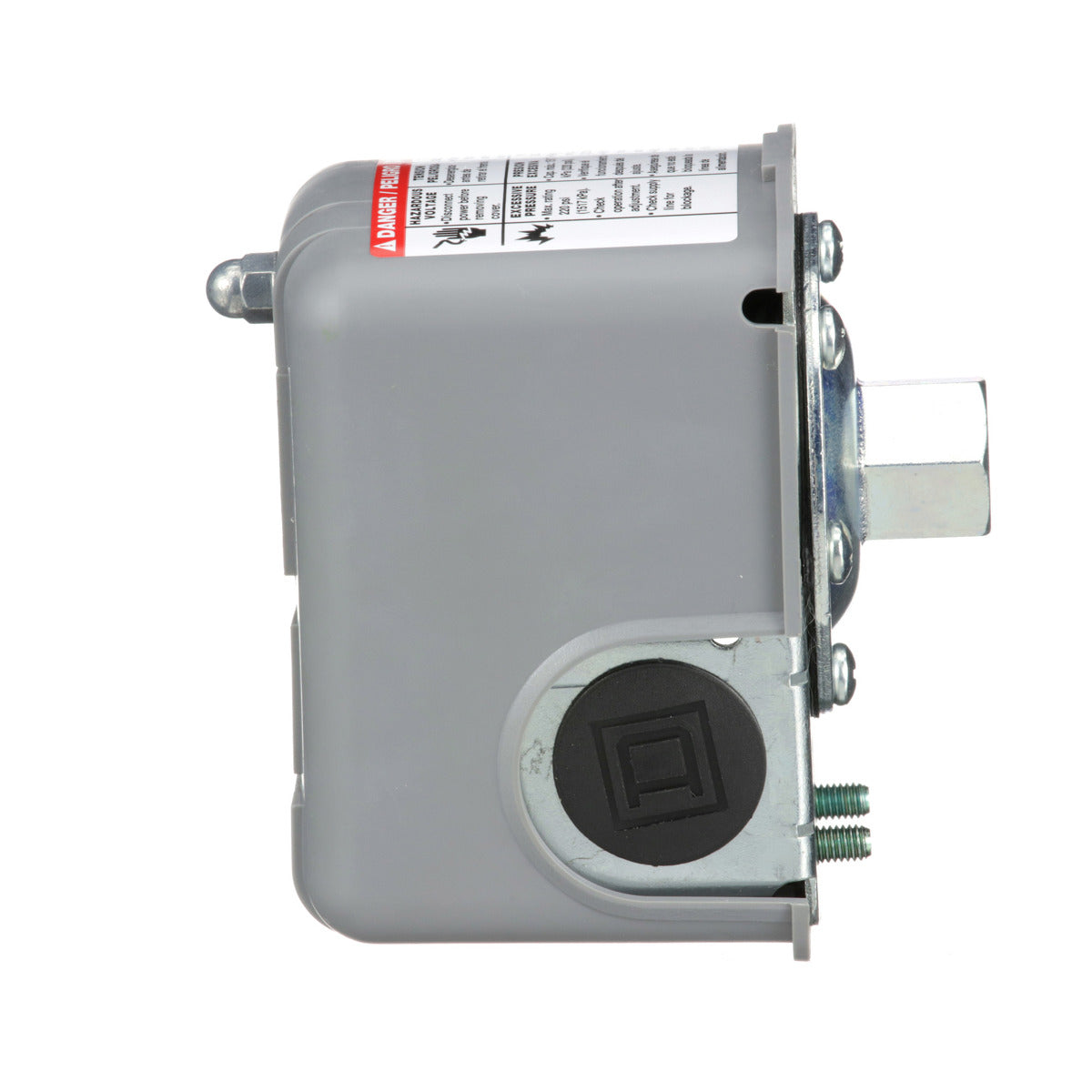

Telemecanique 9013FSG2J24 Square D Pressure Switch 40-60 PSI

Product Description

Telemecanique 9013FSG2J24 is an electromechanical pressure switch designed for controlling water pumps. It is suitable for various pump types such as jets, submersible, and reciprocating pumps. The switch operates through a diaphragm actuator, ensuring reliable performance in pressure monitoring.

• UL Listed and CSA certified
• Suitable for pressure control in agricultural and industrial applications
• Durable polypropylene enclosure with adjustable differential scale

Product Highlights

This product is robustly constructed for long-lasting service and can efficiently control pressure conditions across multiple applications.

Product Information

Standard Information

• Catalog Number: 9013FSG2J24
• Brand: Telemecanique

Technical Specifications

• Type: Electromechanical pressure switch; Adjustable differential
• Depth: 3.76 inches
• Width: 2.78 inches
• Height: 2.8 inches
• Weight: 1 lb
• Material: Noryl
• Operating Cycles: 10 cycles per minute
• Country of Origin: Mexico
• Operating Temperature: -33 to 257 degrees Fahrenheit
• Pressure Range: 5 to 45 PSI
