Telemecanique 9007FA5 Plastic Rod Limit Switch Lever Arm 12 Inch

Product Description

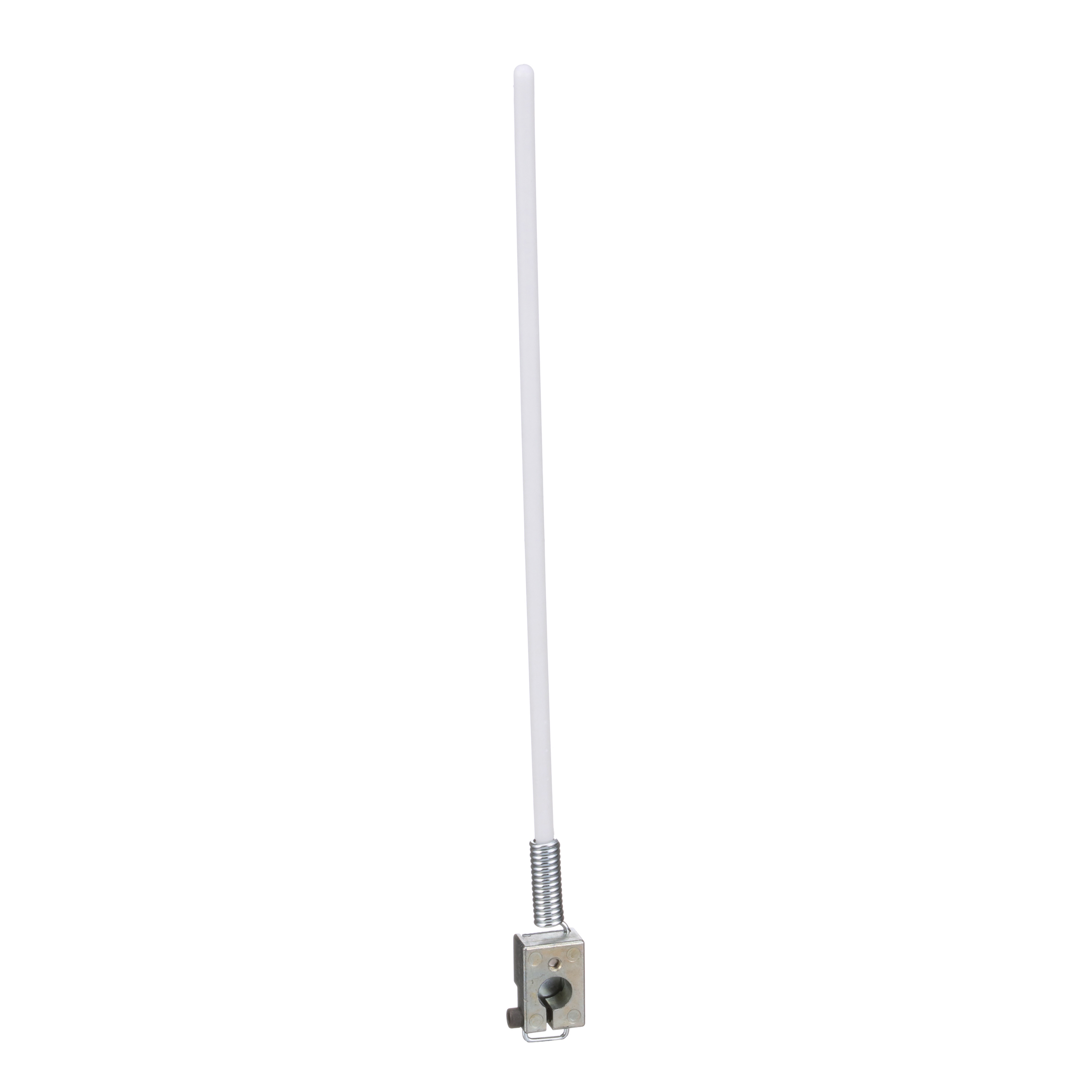

The Telemecanique 9007FA5 plastic rod limit switch lever arm is designed for use with 9007C series limit switches. This NEMA heavy-duty industrial limit switch component is made of acetal resin and is UL Listed and CSA certified. It has a rod length of 304.8mm (12 in) and is suitable for heavy-duty applications in standard environments.

• NEMA heavy duty industrial limit switches
• Modular limit switch line
• UL Listed and CSA certified

Product Highlights

This limit switch lever arm is made of acetal resin and is compliant with US and international standards.

Product Information

Standard Information

• Brand: TELEMECANIQUE
• Manufacturer Part Number: 9007FA5
• Country of Origin: Mexico

Technical Specifications

• Type: Rotary
• Brand: Telemecanique
• Action: By any moving part;Lateral approach
• Actuator: Acetal resin spring return spring rod lever 12-12 in - -
• Sub Brand: 9007C
• Net Weight: 0.1 lb
• Applications: 9007AW-9007C,9007C,HEAVY DUTY
• Country of Origin: Mexico
• Storage Temperature: -20-185 degrees F
• Operating Temperature: -20-185 Adegrees F
• Environmental Conditions: STANDARD ENVIRONMENT
• Catalog Number: 9007FA5
• Manufacturer: Telemecanique Sensors
• Rod Type: Spring
• Rod Size: 0.25 Inch Dia x 12 Inch L
• Rod Material: Plastic
• Used On: 9007C Series Limit Switch
• Range of product: 9007
• Series name: Heavy duty
• Product or component type: Limit switch lever
• Device short name: 9007C
• Type of operator: Acetal resin spring return spring rod lever length: 12-12 in - offset: - -
• Type of approach: Lateral approach
• Movement of operating head: Rotary
• Switch actuation: By any moving part
• Positive opening: Without
• Unit type of package 1: PCE
• Number of units in package 1: 1
• Actuator Material: Plastic
• Actuator Type: Rod Lever
• Numeric ID: 3882618
• Primary Type: Limit Actuator
• Series: 9007F Series
• Alternate Catalog Number: 9007FA5
• Arm Length: 12 in
• Arm Material: Delrin®
• ARRA Compliant: N
• Buy American Compliant: N
• EU RoHS Indicator: Y
• ECCN: EAR99
