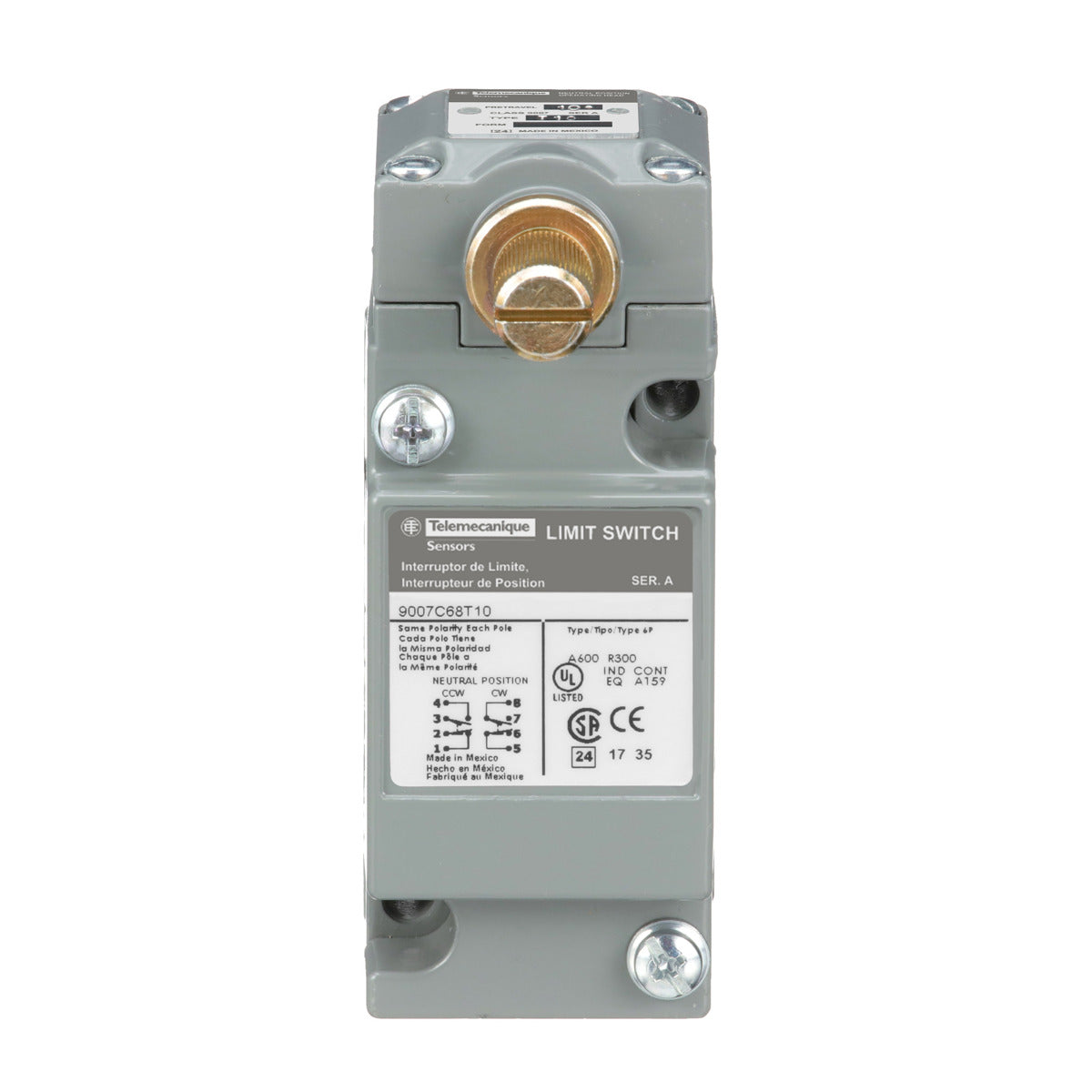

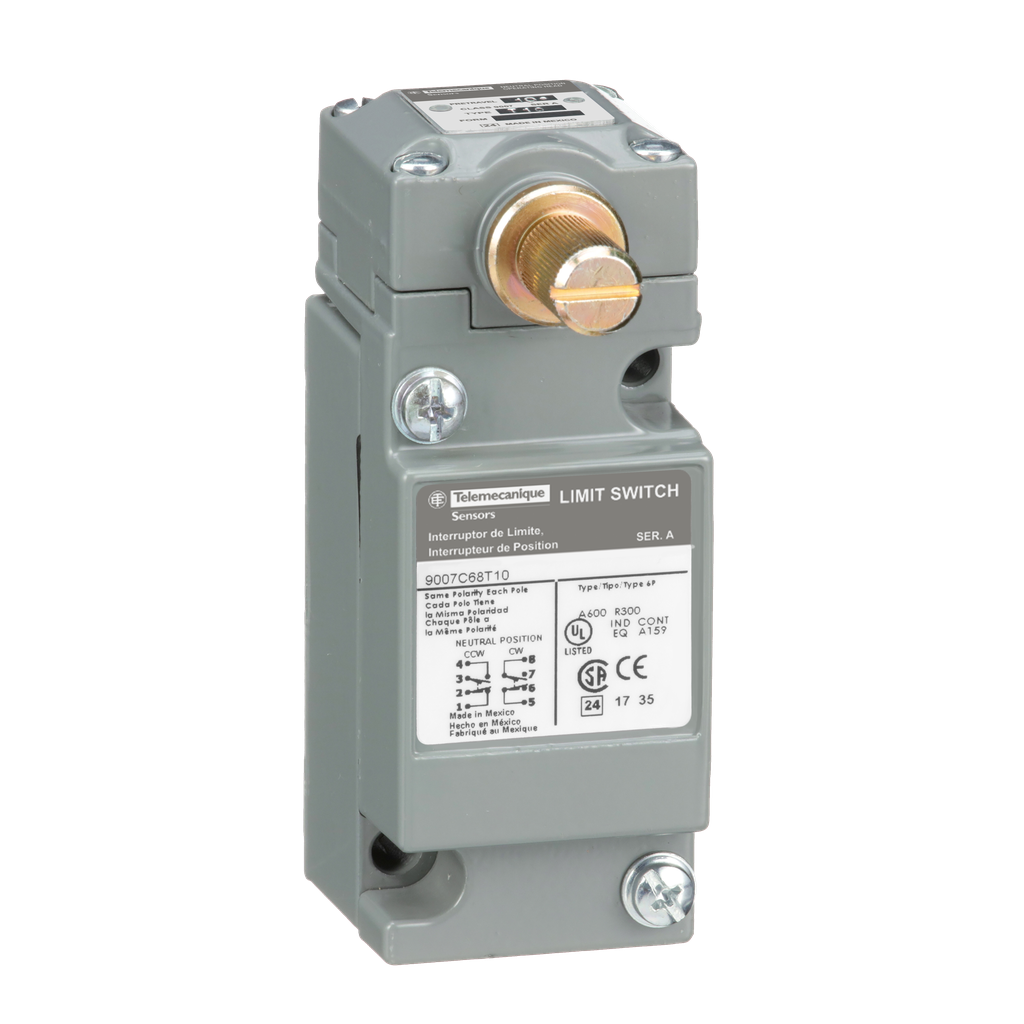

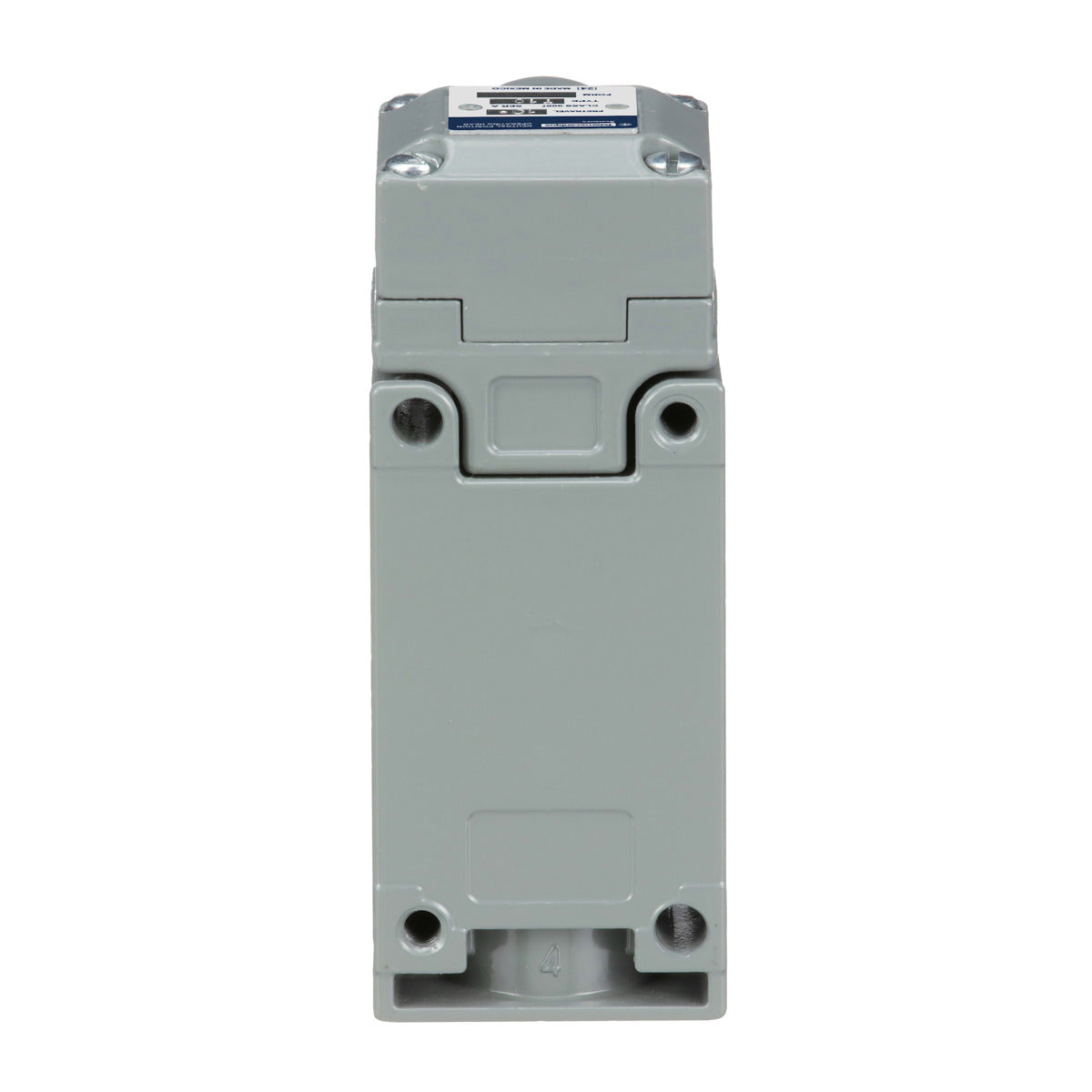

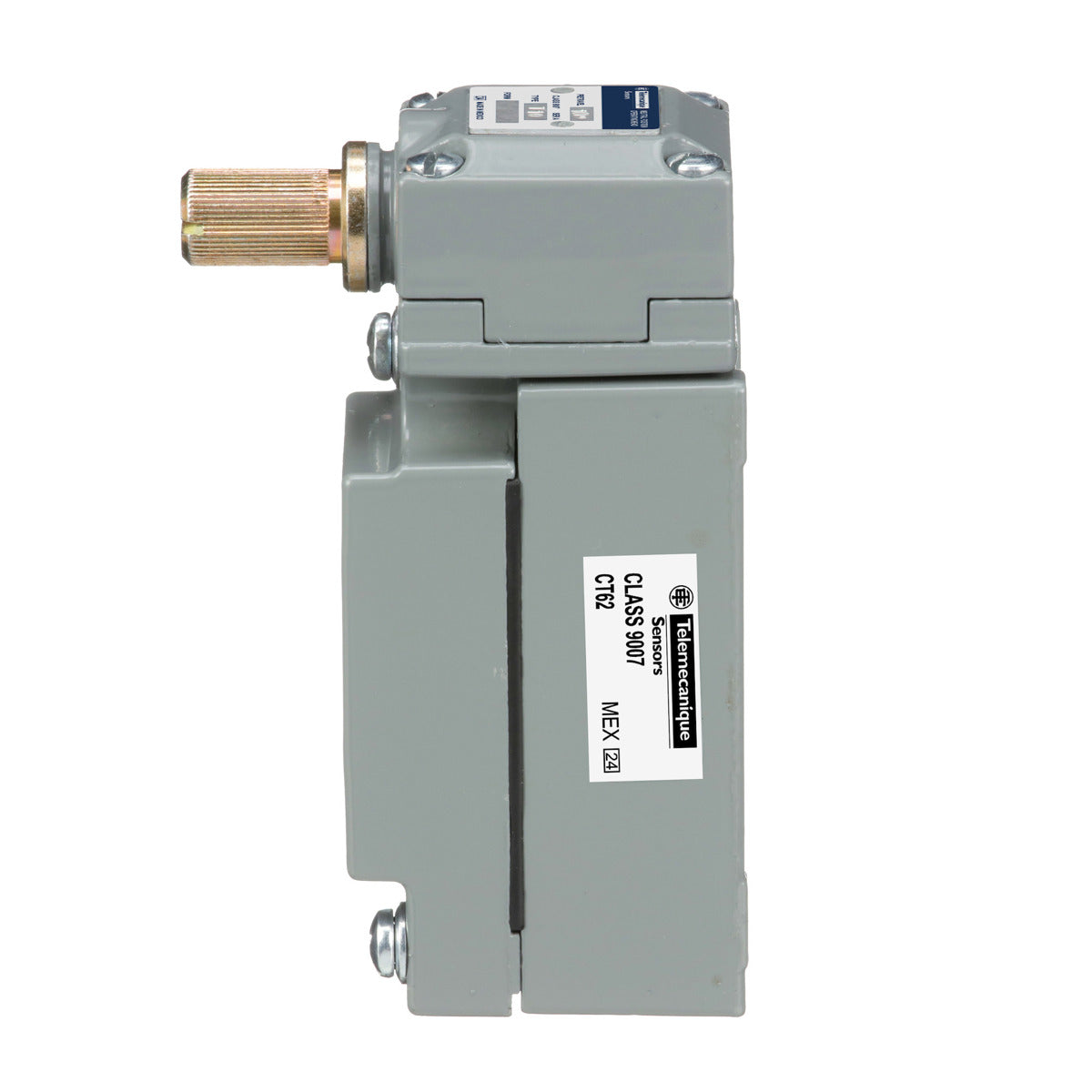

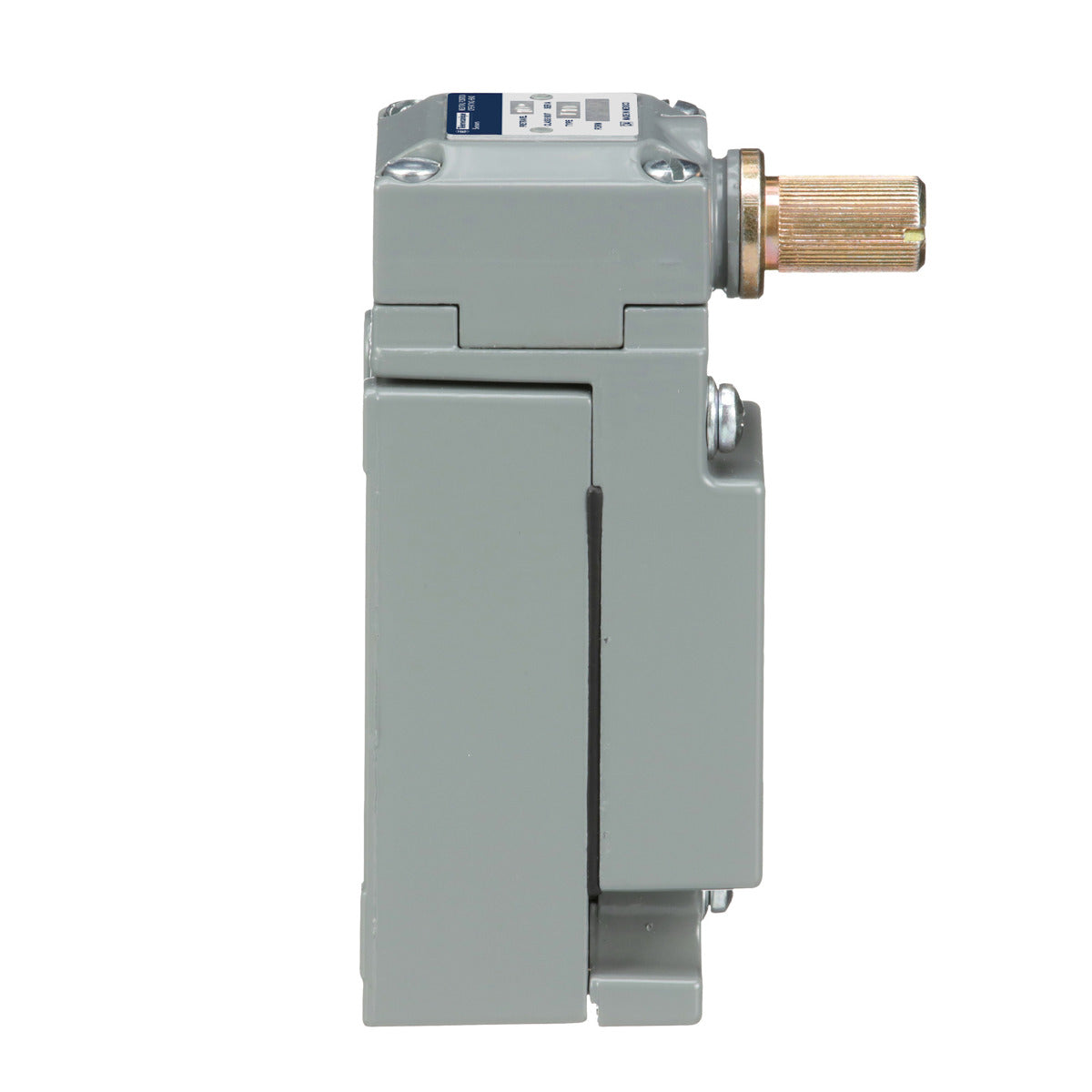

Telemecanique 9007C68T10 Rotary Lever Arm Limit Switch

Product Description

The Telemecanique 9007C68T10 limit switch is designed for tough industrial environments. It meets multiple domestic and international standards. Its metal body can endure harsh conditions, making it suitable for varied applications.

• Compatible with NEMA 1/2/4/12/13 ratings
• Rated for 10 amps and a voltage of 600 volts AC
• Offers a mechanical durability of ten million operating cycles

Product Highlights

This limit switch is reliable for industries like food and beverage, mining, and manufacturing. The plug-in body design allows easy installation. With a compact design, it fits in tight spaces and ensures safety in operations.

Product Information

Standard Information

• Catalog Number: 9007C68T10
• Brand: Telemecanique

Technical Specifications

• Type: Limit switch
• Weight: 1.25 lb
• Size: 2.5 inches
• Width: 1.55 inches
• Height: 4.02 inches
• Depth: 2.5 inches
• Operating Temperature: -20 to 185 degrees F
• Actuator: Zinc spring return without operating lever
