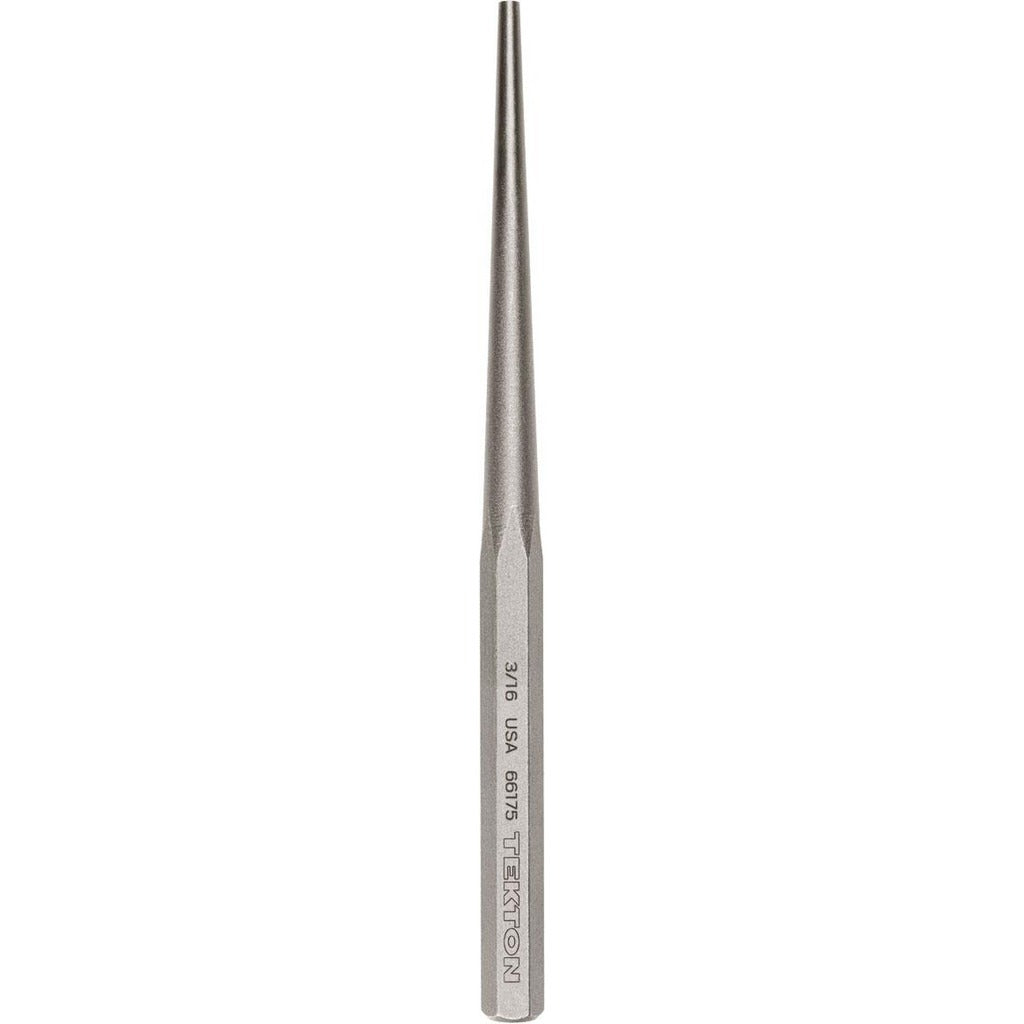

Tekton 66175 Aligning Punch 3/16 Inch

Product Description

The TEKTON 66175 is a 3/16-inch aligning punch machined from high-carbon steel, designed to align holes in metal components so fasteners, pins, or bolts can be driven through cleanly during assembly or repair work. At 10 inches in overall length, it provides solid reach into confined spaces while keeping hands clear of hammer strike zones. The high-carbon steel construction resists deformation under repeated impact, maintaining tip geometry through extended use. Maintenance technicians, millwrights, ironworkers, and general trade mechanics reach for aligning punches when two or more workpieces need to be drawn into registration before final fastening.

This punch suits residential and commercial applications wherever metal-to-metal alignment is required. Common scenarios include structural steel assembly, equipment mounting, machine repair, and fabrication work where bolt holes or pin bores must be brought into alignment before permanent fasteners are installed. The 3/16-inch tip diameter fits correspondingly sized holes and is suited to lighter-gauge structural work and precision alignment tasks on smaller fastener patterns.

Key Features

• 3/16-inch tip diameter for precise hole alignment on smaller fastener patterns
• High-carbon steel construction resists deformation and tip rollover under repeated hammer impact
• 10-inch overall length keeps hands at a safe distance from the strike end
• Tapered tip design draws misaligned holes into registration gradually without damaging hole edges
• Compact 0.6-inch cross-section fits easily into tool bags and service kits

Compatibility

Designed as a standard aligning punch suitable for general metalworking, structural assembly, and mechanical repair applications requiring a 3/16-inch tip diameter.

Installation Notes

Aligning punches are driven by hand with a ball-peen or engineer's hammer and are typically used by ironworkers, millwrights, and mechanical technicians. Always ensure the workpiece is secured before driving the punch to prevent unexpected movement. Never use an aligning punch as a permanent fastener or leave it loaded in a joint while others are working nearby. Inspect the tip before each use and remove from service if deformation or cracking is observed.
