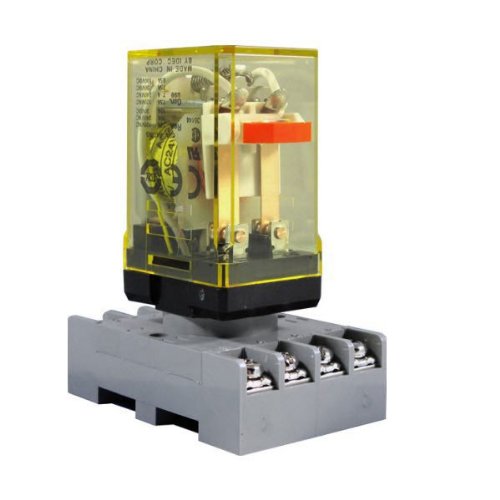

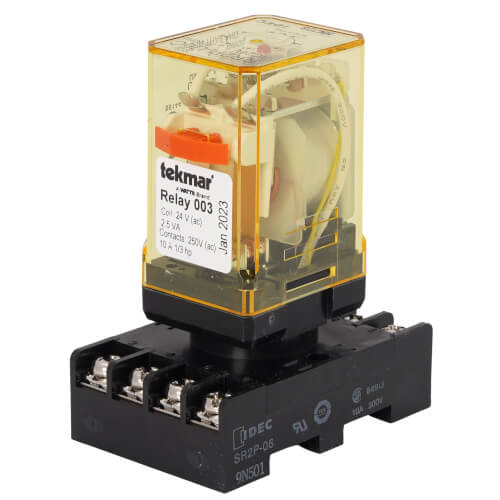

Tekmar 003 Relay With 24V Coil

Product Description

The Tekmar Relay 003 operates with a twenty-four volt coil and is designed for use in various heating applications. This relay is compatible with all Tekmar application drawings, making it easy to install. Servicing is straightforward, as the relay can be unplugged without disturbing the wiring. Each unit has a mechanical test button to simplify troubleshooting.

• Designed for heating applications
• Pin configured for easy installation
• Includes a mechanical test button for troubleshooting

Product Highlights

This Tekmar Relay is essential for controlling heating systems effectively.

Product Information

Standard Information

• Brand: Tekmar
• MPN: 003
• Type: Relay

Technical Specifications

• Voltage: 24V AC
• Contact Ratings: 7 A resistant at 250 VAC
• Ambient Conditions: Indoor only, 14°F to 104°F, < 85% RH Non-Condensing
• Dimensions: Width 1.5625 inches, Height 2.875 inches, Depth 2 inches
• Weight: 0.365 lbs
• Power Supply: 24V AC
• Application: Heating
