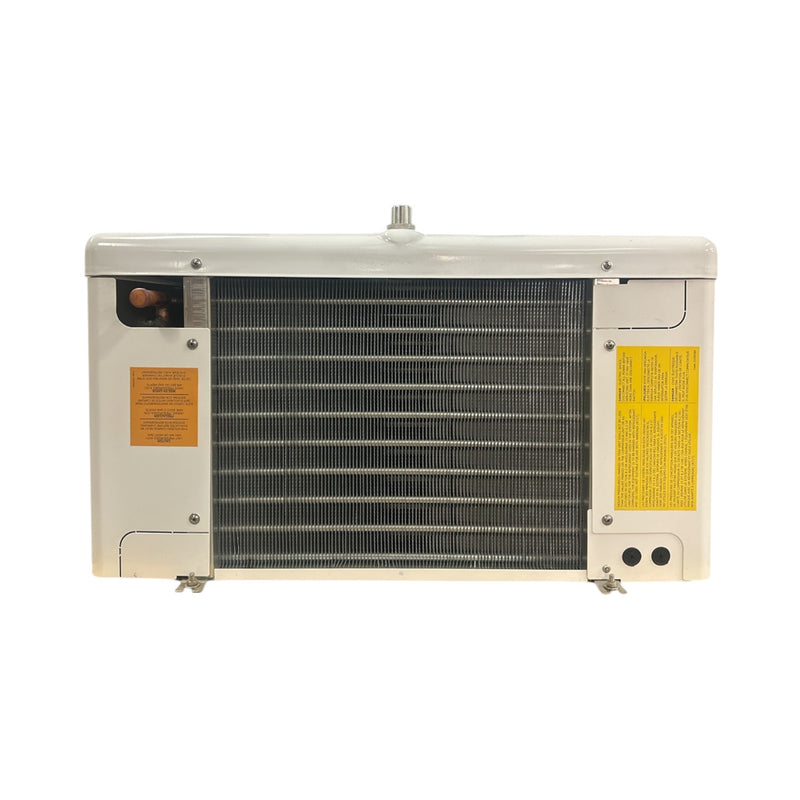

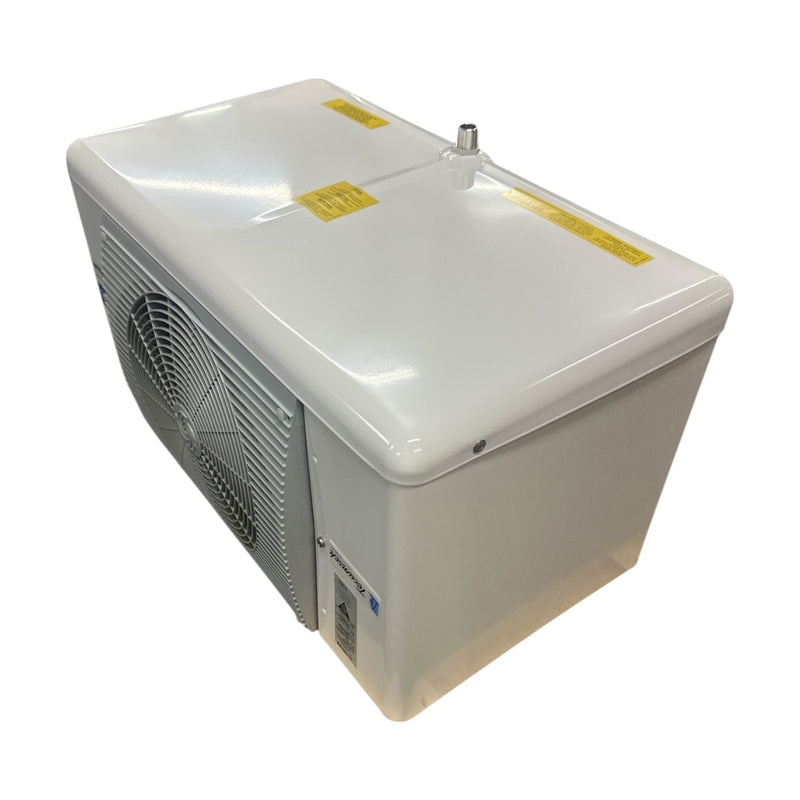

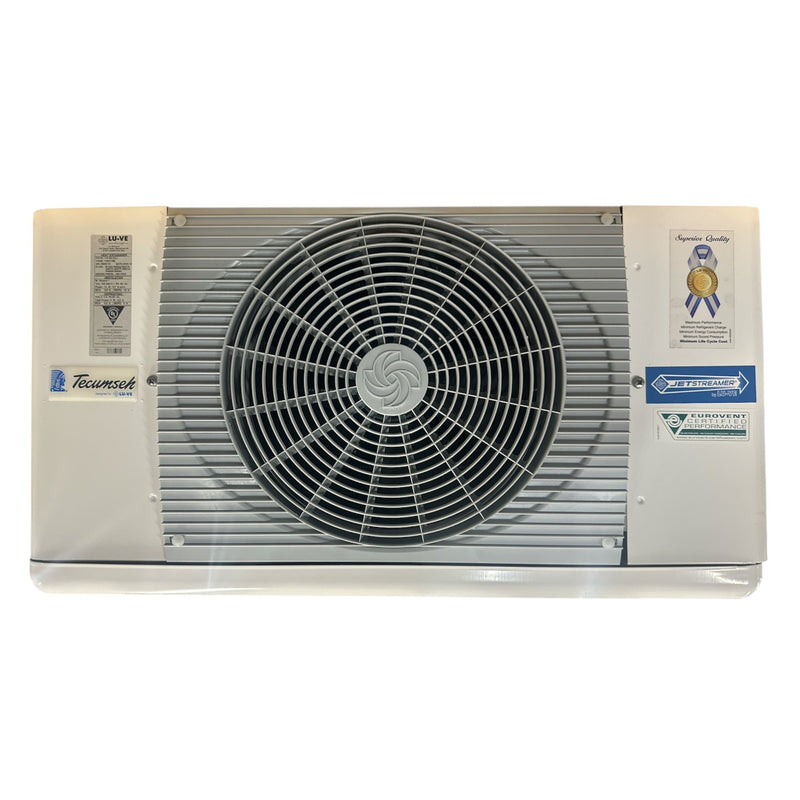

Tecumseh F31HC-116-N4 Low Profile Cooler Medium Temp Refrigeration Evaporator Coil

Product Description

The Tecumseh F31HC-116-N4 is a refrigeration evaporator coil designed for medium temperature applications. This low profile cooler is compatible with various refrigerants including R-452A, R404A, R407A, R448A, and R449A. It features a highly efficient EC fan motor and is specifically designed for air defrost.

• Compatible with multiple refrigerants: R-452A, R404A, R407A, R448A, R449A
• Includes EC fan motor for increased efficiency
• Designed for effective air defrost operation

Product Highlights

This evaporator coil is suitable for use in commercial refrigeration applications where dependable cooling is required.

Product Information

Standard Information

• Brand: Tecumseh
• MPN: F31HC-116-N4

Technical Specifications

• Air Defrost Unit: Yes
• Fan Diameter: 12.4 inches
• Maximum Amperage 115V: 0.85
• Maximum Amperage 230V: 0.7
• Fan Motor Type: EC
• Fan Voltage: 115V & 208-230V 1 PH 60Hz
• Liquid Inlet Connection: 1/2 inch
• Suction Outlet Connection: 5/8 inch
• Height: 16.34 inches
• Length: 17.75 inches
• Width: 29.92 inches
