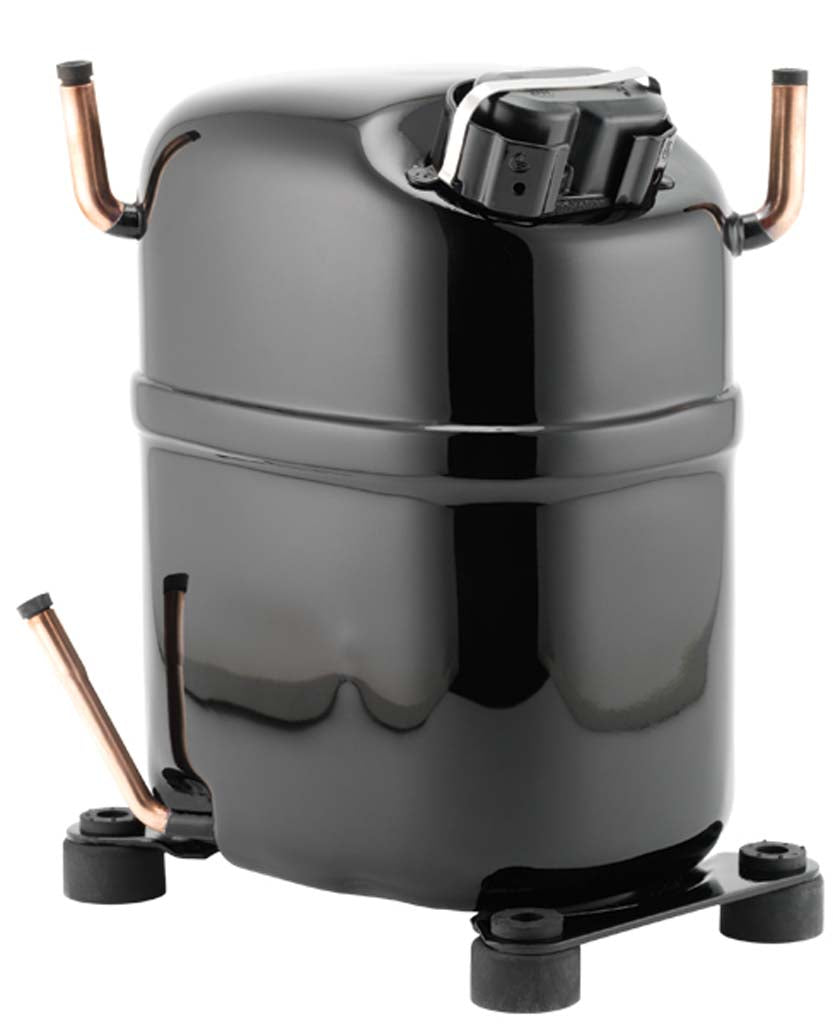

Tecumseh AJC5519EXD Compressor 1-3/4 HP

Product Description

The TECUMSEH AJC5519EXD compressor, from the AJ series, has a capacity range of 1/2 to 1 3/4 HP and is suitable for applications in the CBP, LBP, MBP, HBP, and AC range. It is designed for use with R-22 refrigerant and operates at 208-230/1/60 volt. Features sweat connection type with 1/2" suction and 5/16" discharge.

• Capacity range of 1/2 to 1 3/4 HP
• Suitable for A/C applications using R-22 refrigerant
• Operates at 208-230/1/60 volt

Product Highlights

The TECUMSEH AJC5519EXD is a hermetic compressor ideal for air conditioning applications using R-22 refrigerant. It features a 1/2" suction and 5/16" discharge.

Product Information

Standard Information

• Brand: TECUMSEH
• Manufacturer Part Number: AJC5519EXD

Technical Specifications

• MPN: AJC5519EXD
• Brand: TECUMSEH
• Vendor Name: Tecumseh
• URI Part Number: AJC5519EXD
• Vendor Part Number: AJ222FT206J7
• Height (In.): 12.4375
• Application: A/C
• Application by Refrigerant: A/C - R22
• Capacity (BTUH): 19,000
• Connection Discharge (In.): 5/16
• Connection Suction (In.): 1/2
• Connection Type: Sweat
• Horsepower: 1 3/4
• Mount (In.): 8.0 x 4.8
• Oil: Alkylbenzene
• Rated Load Amps: 11.6
• Refrigerant: R22
• Run Capacitor (Microfarad x Voltage): 25 x 370
• Torque: Normal: suitable for capillary tube and other self equalizing systems
• Voltage: 208-240/1
• Model: AJC5519EXD
• Type: Reciprocating
• Version: AJ Series
• Voltage/Frequency: 200V ~ 50Hz / 208-230V ~ 60Hz
• Dimensions - Height: 11.156
• Dimensions - Width: 6.594
• Dimensions - Length: 11.696
• Dimensions Unit of Measure: IN
• Discharge Line Size: 5/16 in (7.93mm)
• Suction Line Size: 1/2 in (12.7mm)
• Overload Type: EXTERNAL
• Overload Kit: K90-39
• Relay Kit: K71-19
