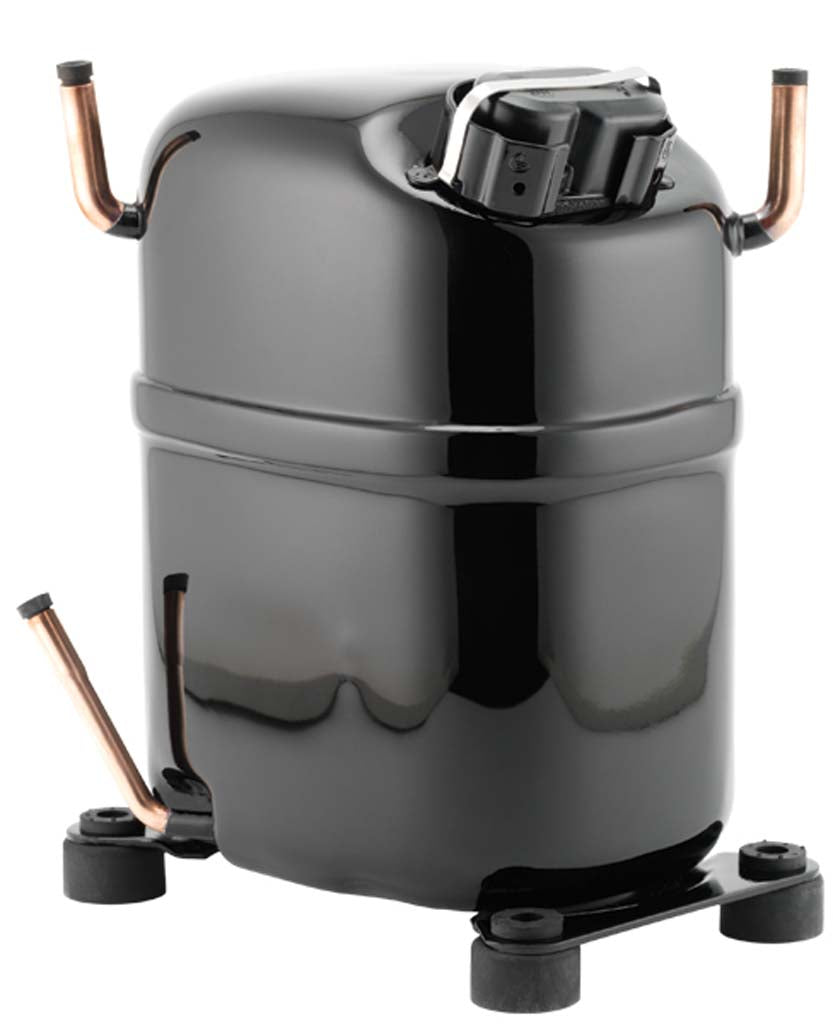

TECUMSEH AJ100AT-193-J7 Compressor

Product Description

The TECUMSEH AJ100AT-193-J7 is a reciprocating compressor suitable for high-temperature applications. This unit is compatible with R-12 refrigerant. It includes all necessary starting components and mounting hardware.

• Reciprocating compressor designed for high back pressure applications
• Uses R-12 refrigerant for optimal performance
• Includes necessary mounting hardware for installation

Product Highlights

This compressor is engineered for systems requiring specific evaporating and condensing temperatures. It is pre-charged with alkylbenzene oil.

Product Information

Standard Information

• Brand: TECUMSEH
• MPN: AJ100AT-193-J7

Technical Specifications

• Application: High Temperature
• Refrigerant: R-12
• Compressor Type: Reciprocating
• Horsepower: 3/4 HP
• Voltage: 115V
• Phase: 1
• Frequency: 60 Hz
• Suction Line Size: 1 inches (Rotolock)
• Discharge Line Size: 5/16 inches (7.93mm)
• Height: 10.719 inches
• Width: 6.594 inches
• Length: 11.867 inches
• Weight: 46 lbs
• Starting Torque: High
• Oil Type: Synthetic Alkylate
• Oil Charge: 664 cc
• LRA: 69
• RLA 60HZ: 13.7
• Overload Type: External
• Evaporating Range: -6.7°C to 12.8°C (20°F to 55°F)
• Displacement: 25.95 CC
• Mounting Centers: 4-13/16 x 8
• Rated Load Amps: 13.7
• Motor Type: CSIR
