Product Description

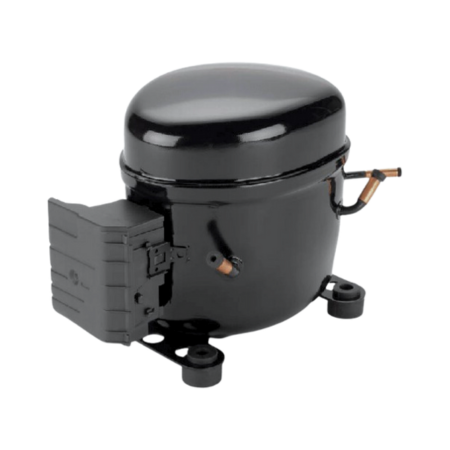

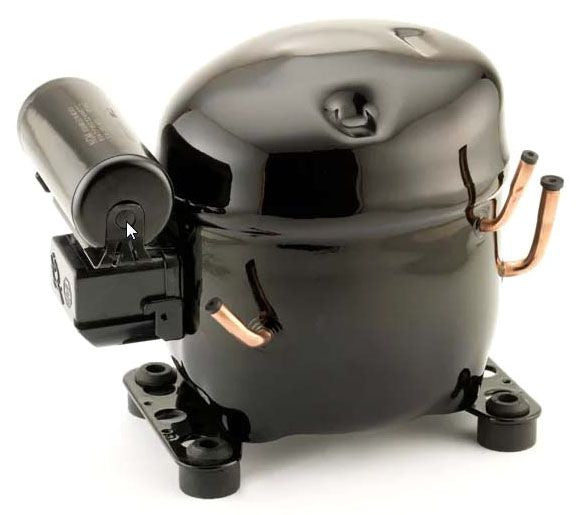

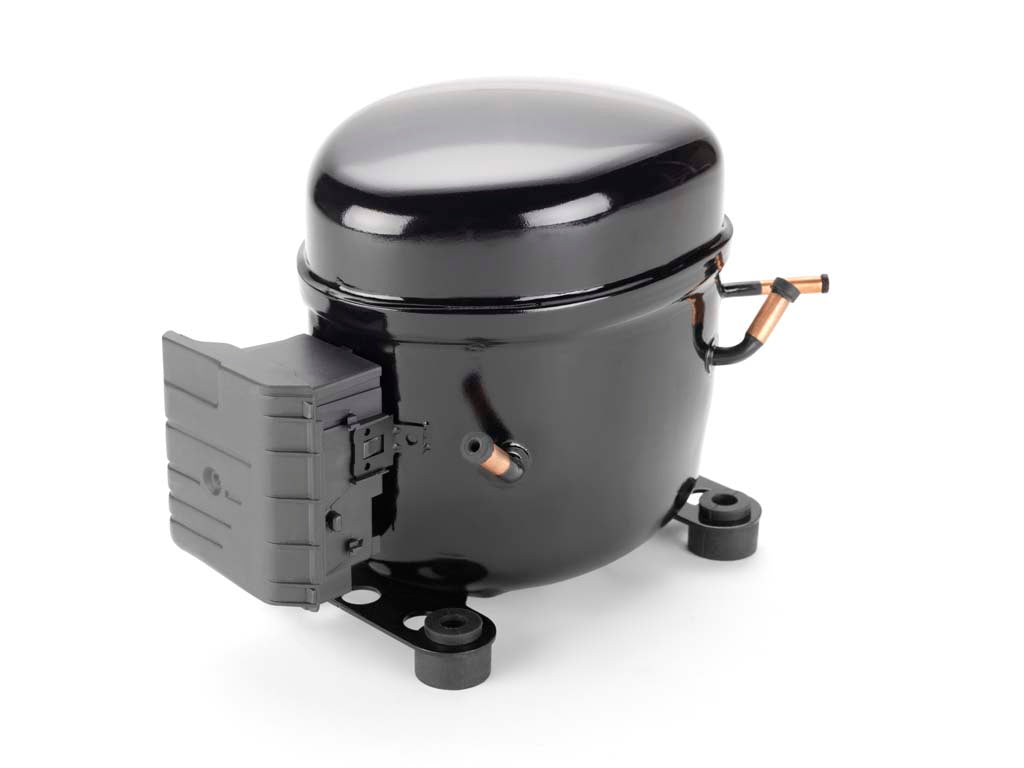

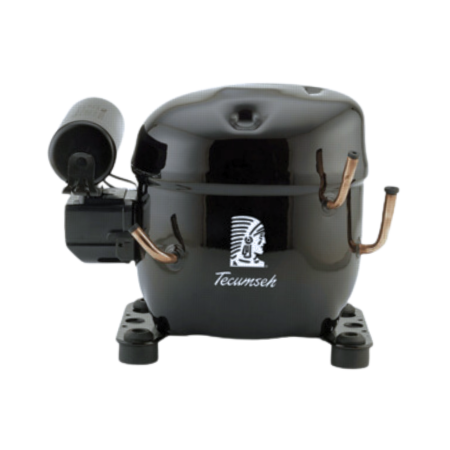

The Tecumesh AE1249E-679-J7 is an air conditioner reciprocating compressor with a capacity of 1000 BTU/hour and a power rating of 1/4 HP. It is designed for use in air conditioning and refrigeration applications. This compressor is compliant with UL (Canada and US) and CE standards and uses R12 refrigerant.
- Used on air conditioner and refrigeration units.
- Complies with UL (Canada and US) and CE standards.
- Voltage Rating of 115 Volt AC 60 Hertz 1-Phase.
Product Highlights
This compressor features a capacitor start/induction run motor type and high starting torque, making it suitable for low back pressure applications.
Product Information
Standard Information
-
Brand: Tecumesh
-
Manufacturer Part Number: AE1249E-679-J7
-
Country of Origin: US
Technical Specifications
-
Manufacturer Part Number: AE1249E-679-J7
-
Item: Reciprocating Compressor
-
Used On Item: Air Conditioner, Refrigeration
-
Applicable Standard: UL (Canada and US), CE
-
Oil Type: Synthetic Alkylate
-
Refrigerant Type: R12
-
Motor Type: Capacitor Start/Induction Run
-
Starting Torque: High
-
Capacity: 1000 BTU/Hour
-
Voltage Rating: 115 Volt AC 60 Hertz 1-Phase
-
Current Rating: 28.5 Amp (Locked Rotor), 5.45 Amp (MCC)
-
Power Rating: 1/4 HP
-
Connection Size: 5/16 Inch ODF (Suction), 1/4 Inch ODF (Discharge)
-
Resistance: 2.32 Ohm (Main), 4.55 Ohm (Start)
-
Temperature Rating: -10 Deg F
-
Application: Low Back Pressure
-
Product Type: Compressor
-
Phase: 1
-
Voltage: 115V
-
Capacity (BTU): 1098
-
Type: Reciprocating
-
Model: AE2410A-AA1A
-
Version: AE Series
-
Discharge Line Size: 1/4 in (6.35mm)
-
Suction Line Size: 5/16 in (7.93mm)
-
Overload Type: EXTERNAL
-
Overload Kit: K90-58
-
Relay Kit: K71-38
-
Start Cap Kit: K146-28
-
Brand: TECUMSEH
-
Number of Phase: Single-Phase
-
Frequency: 60 Hz
-
Motor Torque: High Start Torque (HST)
-
Rating Point: -23°C (-10°F)
-
Compressor Oil: Synthetic Alkylate
-
BTU Rating: 1000 Btu/hr
