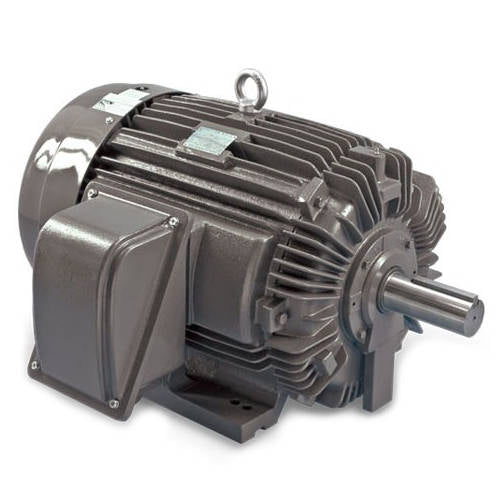

TECO NP2006 AC Motor 200 HP

Product Description

The TECO NP2006 is a three-phase AC motor suitable for general purpose and severe duty applications. This model has a totally enclosed fan-cooled (TEFC) design and features a robust cast iron frame. It can be utilized with inverters and meets safety standards for Class I Div 2, Groups B, C, and D hazardous locations. It operates well in environments with a maximum ambient temperature of forty degrees Celsius and an elevation of three thousand three hundred feet.

• Horsepower: 200 HP
• Speed: 1200 RPM
• Enclosure Type: Totally Enclosed Fan Cooled (TEFC)

Product Highlights

This motor is built for durability and efficiency, making it ideal for a variety of industrial uses, including HVAC and heavy machinery applications.

Product Information

Standard Information

• Brand: TECO
• Manufacturer Part #: NP2006

Technical Specifications

• Series: MAX-PE (Severe Duty)
• Motor Voltage: 460 VAC
• Motor RPM: 1200 RPM
• Hertz: 60
• Frame: 447/449T
• Mounting Design: Foot Mount
• Motor Enclosure Type: Totally Enclosed Fan Cooled
• Full Load Amps: 233
• Efficiency: Premium Efficiency
• Service Factor: 1.15
• Temperature Rise: Class B
• Ingress Protection: IP54
• Rotor Material: Die Cast Aluminum
• Frame Material: Cast Iron
• Brake Torque: 210
• Locked Rotor Current: 1450
