Teco NP0306 General Purpose Motor 30 HP 326T

Product Description

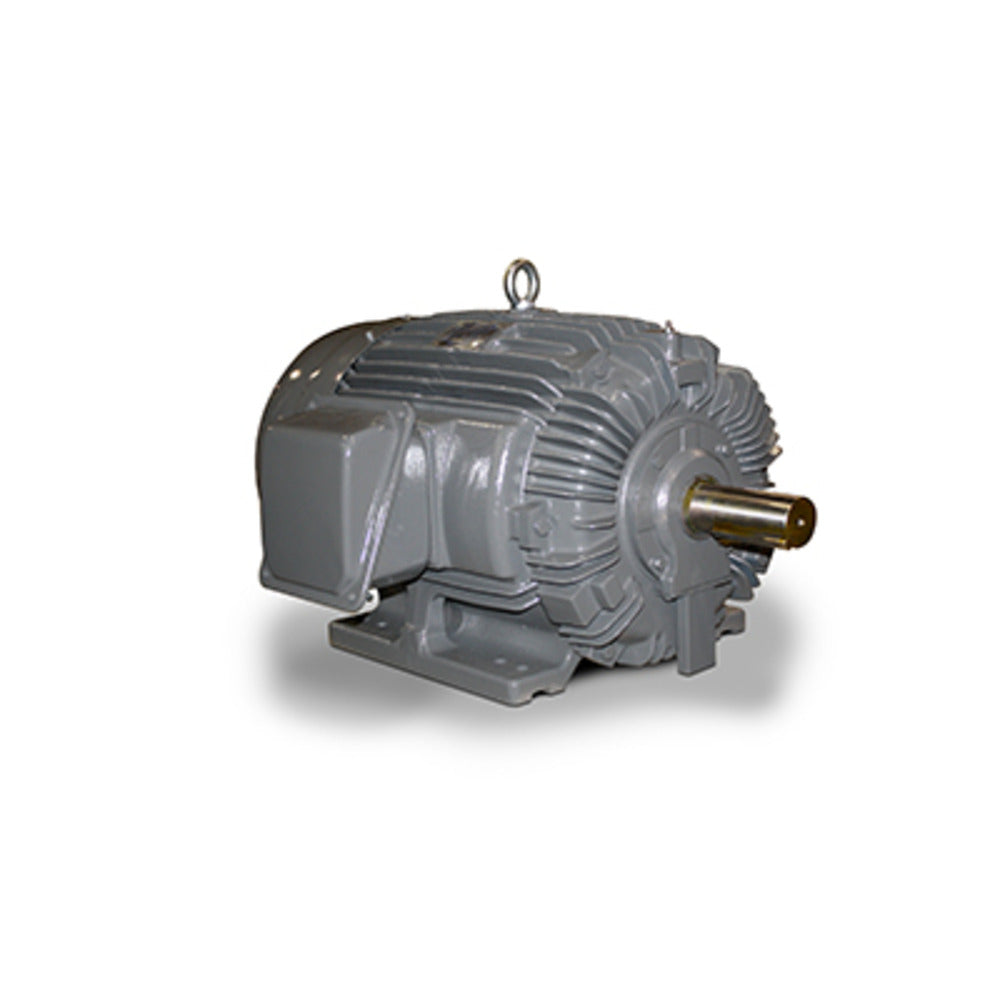

The Teco NP0306 is a three-phase general-purpose motor with a power rating of thirty horsepower. It is designed for reliability and efficiency in various applications. The motor features a frame size of 326T and a totally enclosed fan-cooled (TEFC) enclosure that enhances its durability. Suitable for both industrial and commercial uses, this motor operates at dual voltage of 230 or 460 volts with a reverse rotation capability.

• Three-phase operation for improved efficiency
• Cast iron material for rugged performance
• Rigid base mounting simplifies installation

Product Highlights

This motor is ideal for HVAC, pumps, and other machinery requiring a robust power source. Its design minimizes maintenance while maximizing performance.

Product Information

Standard Information

• Brand: Teco
• MPN: NP0306

Technical Specifications

• Electrical Type: Three Phase
• Horsepower: 30
• Frame: 326T
• Enclosure: TEFC
• Voltage: 230/460
• Rotation: REV
• Overload Protection: No
• Material: Cast Iron
• Mounting Type: Rigid Base
• Amperage: 37.5
