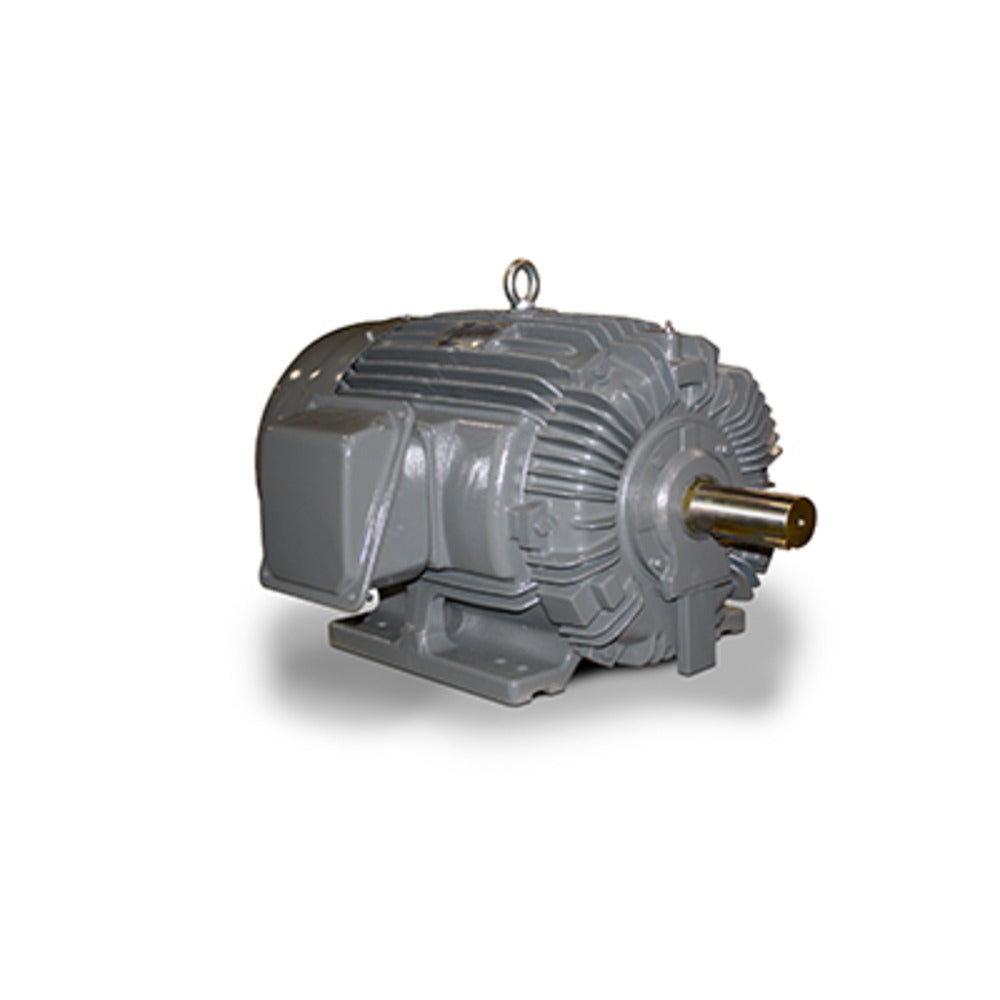

Teco NP0154 General Purpose Motor 15 HP 254T

Product Description

The TECO NP0154 general purpose motor is a TEFC, T-frame squirrel-cage induction motor. This three phase motor has a cast iron frame and is designed for 230/460V operation. It is suitable for inverter use per NEMA MG-1 Part 31.4.4.2 and is ideal for severe duty applications.

• Three Phase
• 15 HP
• 254T Frame

Product Highlights

This motor features a rigid base mounting, bi-directional rotation, and a rolled steel fan cover. It is U.L. Recognized, CSA Approved and CE Marked.

Product Information

Standard Information

• Brand: TECO
• Manufacturer Part Number: NP0154
• Country of Origin: U.S.

Technical Specifications

• Electrical Type: Three Phase
• HP: 15
• Frame: 254T
• Enclosure: TEFC
• Phase: Three
• Voltage: 230/460
• Rotation: REV
• Material: Cast Iron
• Mounting: Rigid Base
• Amperage: 17.3
• Frame Size: 254
• Frame Suffix: T
• RPM: 1800
• Volts: 208-230/460
• Manufacturer: Teco-Westinghouse
• Horsepower: 15 hp
• Motor Type: TEFC, Cast Iron
• All - Specific Ratings: NEMA Premium
• All - Voltage: 230/460V (Usable on 208V)
• Warranty: 3 Years
• Alternate Part Number: MAX-PE Series
• Speed: 1,800 RPM
• Number of Poles: 4
• NEMA Frame: 254T
• AC Voltage: 230 VAC, 460 VAC
• Nominal Voltage: 240 VAC, 480 VAC
• Service Factor: 1.15
• Inverter Duty: Yes
• Approvals: CE, CSA, UL, UR
• Hz: 60
• Amps: 34.5/17.3
• Frequency: 60 Hz
• Shaft: 4 x 1 5/8" Dia. Keyed Shaft
• Frame Material: Cast Iron
• IP Rating: IP56
• Thermal Overload Protection: None
• Base: Rigid Base
• Bearings: Ball Bearings
• Insulation Class: Class F
• Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
• Application: General purpose motor for use in severe duty applications
