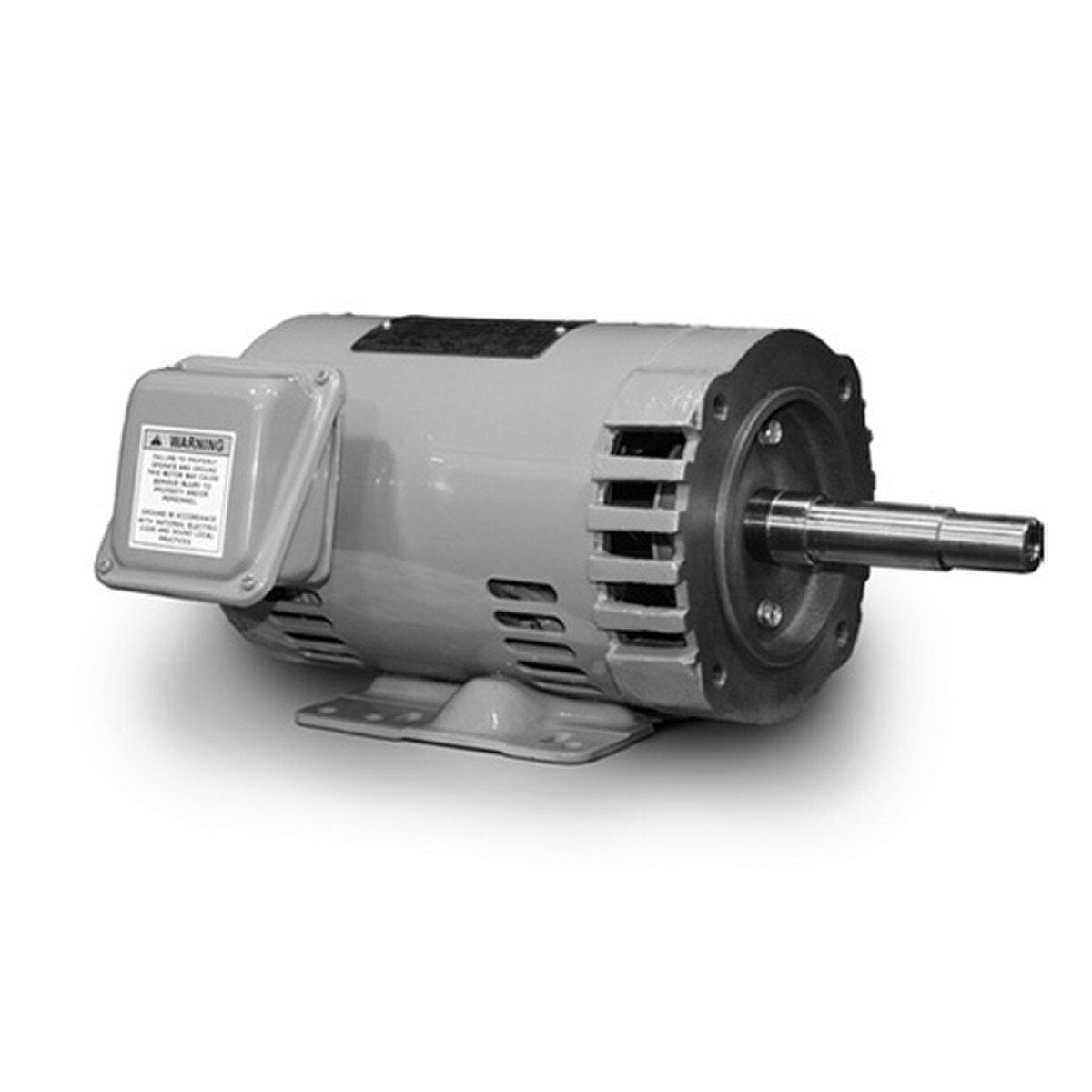

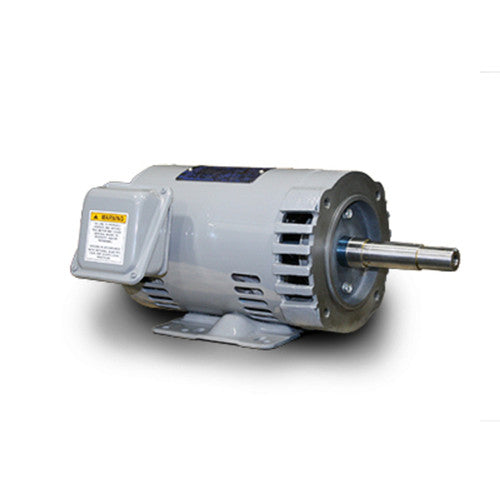

TECO DJMP7/56 AC Motor

Product Description

The TECO DJMP7/56 is a three-phase AC motor suited for pump applications. It operates at twelve hundred RPM and features a foot-mounted design for easy installation. This motor is ideal for variable frequency drives and is built with Class F insulation.

• Three-phase motor for reliable performance
• Open drip-proof enclosure for protection against moisture
• Double-shielded bearings for improved durability

Product Highlights

This AC motor is designed to work efficiently in demanding environments, providing consistent performance and durability.

Product Information

Standard Information

• Brand: TECO
• MPN: DJMP7/56

Technical Specifications

• Horsepower: 7.5 HP
• RPM: 1200
• Input Voltage: 230/460VAC
• Full Load Amperage: 20.2A
• Phase: 3
• Frame Size: 254/256JM
• Enclosure: ODP
• Full Load Efficiency: 90.2%
• Full Load Power Factor: 77%
• Service Factor: 1.15 (Continuous); (1.0 @ 50 Hz)
• Insulation Class: Class F
• Temperature Rise: Class B
• NEMA Design: B
• Ambient Temperature: Designed for 40°C
• Rotation: Bi-Directional
• Shaft Material: 1045 Carbon Steel
• Rotor Construction: Aluminum Die Cast Squirrel Cage
• Paint Color: Blue
• Bearings: Double Shielded Pre-Packed with MULTEMP SRL (Non-regreasable)
• Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
• Mounting Type: Foot Mount
• Frequency: 60 Hz
• Shaft Size: 5 1/4 x 1 1/8 Dia.
