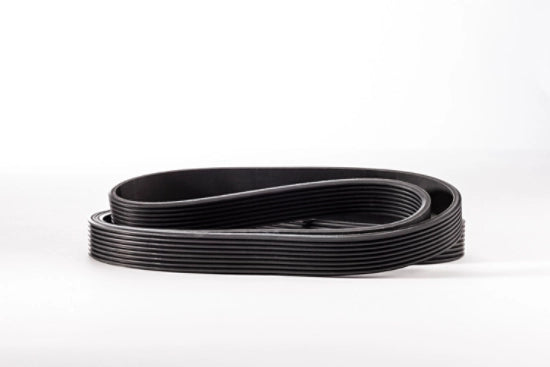

Technologies P-9173 Multi-Ribbed Belt

Product Description

The Technologies P-9173 multi-ribbed belt is a reliable choice for industrial multi-ribbed drives. This Micro-V belt is made from polychloroprene, also known as Neoprene. It contains fiber-reinforced ribs and a low-stretch tensile member. The belt's truncated profile allows for improved flexibility and minimizes heat buildup. It operates effectively at higher speeds, especially on smaller diameter sheaves.

• Features fiber-reinforced ribs for durability.
• Designed for strength with a high modulus, low stretch tensile member.
• Meets ARPM and RMA IP-3-2 oil and heat resistant standards.

Product Highlights

This belt is suitable for numerous applications, including washing machines, vacuum cleaners, lawn mowers, and various industrial machinery.

Product Information

Standard Information

• Brand: Technologies
• MPN: P-9173

Technical Specifications

• Effective Length: 115 inches
• Outside Circumference: 115.6 inches
• Number of Ribs: 12
• Top Width: 2.25 inches
• Thickness: 0.28 inches
• Construction: Multi-Ribbed Belt
• Material: Polychloroprene (Neoprene)
• Max. No. of Ribs: 60
