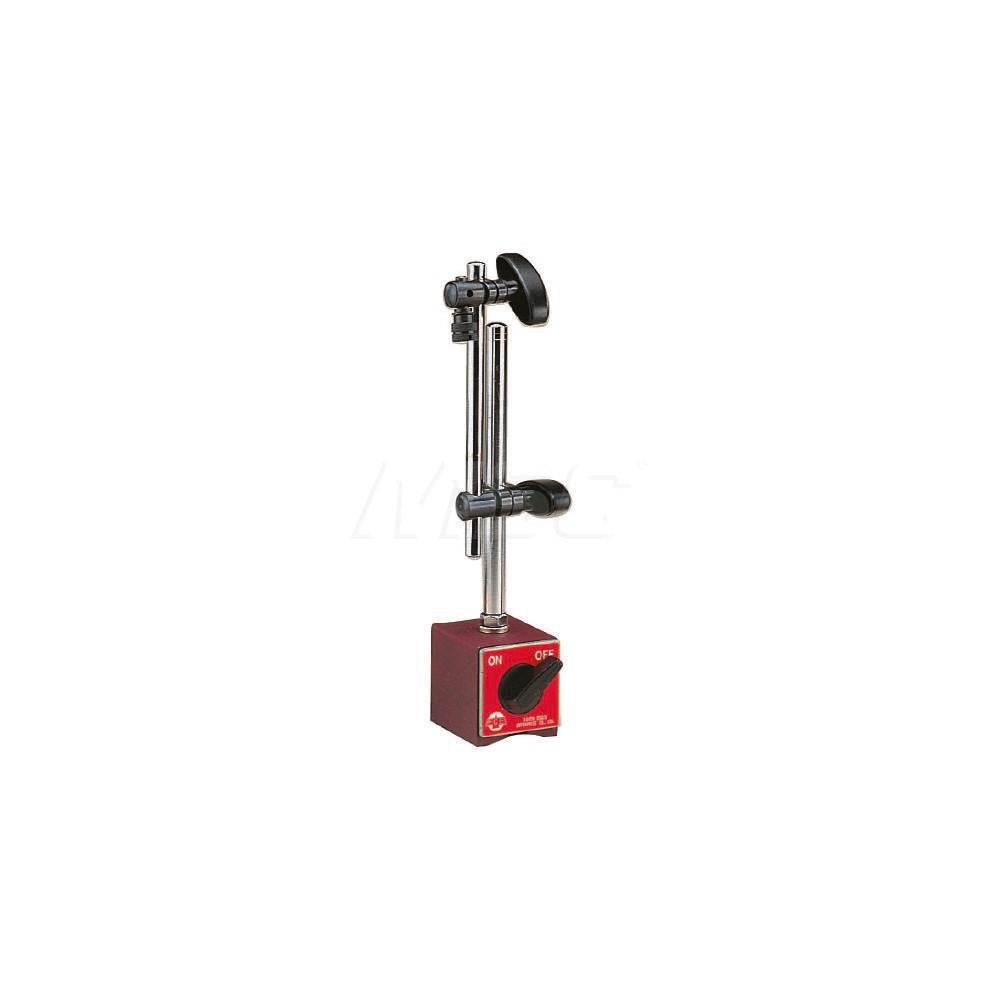

Techniks ECE-302B Magnetic Indicator Base 176 Lb

Product Description

The TECHNIKS ECE-302B is a magnetic indicator base designed to hold dial indicators, test indicators, and similar measurement instruments securely during inspection and machining operations. Built around a 176-pound magnetic pull force, the base attaches firmly to ferrous machine surfaces, surface plates, and tooling fixtures without clamping hardware. At 2-3/8 inches long, 2 inches wide, and 2-1/8 inches tall, it presents a compact footprint while delivering reliable holding force for precision measurement tasks. Machinists, tooling technicians, and quality control personnel install and reposition these bases routinely as part of setup and inspection workflows.

The ECE-302B suits general metalworking environments including machining centers, lathes, grinders, and inspection stations. It is appropriate for both shop-floor and toolroom use wherever a stable, repositionable indicator mounting point is needed on a ferrous surface. The compact base dimensions make it practical in tight setups where larger bases would interfere with fixturing or workpiece access.

Key Features

• 176-pound magnetic pull force for firm, stable attachment to ferrous surfaces
• Compact base at 2-3/8 x 2 x 2-1/8 inches for use in tight setups
• Magnetic on/off switching allows quick repositioning without surface damage
• Compatible with standard dial indicator and test indicator mounting arms
• Weighs 3.52 pounds for a solid, low-profile footprint

Compatibility

Designed as a standard magnetic indicator base for use with dial indicators and test indicators on ferrous machine surfaces, surface plates, and inspection fixtures.

Installation Notes

Installation requires no tools beyond hand-tightening the indicator arm and activating the magnetic base switch. Ensure the mounting surface is clean, flat, and free of chips or coolant film before engaging the magnet, as contamination reduces effective holding force. Do not use on non-ferrous surfaces such as aluminum or granite where magnetic adhesion will not occur. Positioning and adjustment of the indicator arm should be completed before finalizing the magnetic lock to maintain measurement accuracy.
